Nadi - Nadi Intl

Airport details

Country	Fiji
State	Western
Region	NF
Municipality	Nadi
Elevation	59ft (18m)
Timezone	GMT +12
Coordinates	-17.75695, 177.44768
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	NFFN
IATA code	NAN
FAA code	n/a

Communication

Nadi Intl ATIS	127.900
Nadi Intl Ground Control	121.900
Nadi Intl Tower	118.100
Nadi Intl Approach/Departure	119.100

Approach frequencies

ILS-cat-I	RW02	111.9	18.00mi
3° GS	RW02	111.9	18.00mi

Nearby Points of Interest:

Sigatoka sand dunes

Runway info

Runway 02 / 20
	length	3208m (10525ft)
	bearing	39° / 219°
	width	46m (151ft)
	surface	asphalt
	blast zone	96m (315ft) / 34m (112ft)
Runway 09 / 27
	length	2127m (6978ft)
	bearing	103° / 283°
	width	46m (151ft)
	surface	asphalt
	blast zone	30m (98ft) / 4m (13ft)

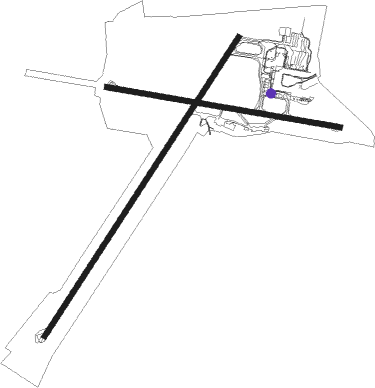

Airport layout - parking location 14

Taxiway locations

Parking locations

1	10	11	12	13	14	15	16
17	2	2L	2R	3	31	31L	31R
32	32L	32R	4	5L	5R	6	7
8	9	Fiji	GA	Island

Nearby beacons

code	identifier	dist	bearing	frequency
VK	NAVAKAI (NADI) NDB	2.3	225°	405
NN	NADI VOR/DME	6.8	333°	112.50
MI	MOMI (NADI) NDB	11	221°	364

Departure and arrival routes

Transition altitude

11000ft

Transition level

13000ft

SID end points		distance	outbound heading
RW02
	ALPHA	106mi	11°
	CHARLI	101mi	56°
	ECHO, DELTA	50mi	124°
	FOXTRO	95mi	189°
RW09
	ALPHA	106mi	11°
	CHARLI	101mi	56°
	DELTA, ECHO	50mi	124°
	FOXTRO	95mi	189°
RW20
	ALPHA	106mi	11°
	CHARLI	101mi	56°
	DELTA, ECHO	50mi	124°
	FOXTRO	95mi	189°
RW27
	ALPHA	106mi	11°
	CHARLI	101mi	56°
	DELTA, ECHO	50mi	124°
	FOXTRO	95mi	189°

STAR starting points		distance	inbound heading
RW20
	AGTA2B	40.2	12°
	MIKA2B	15.1	40°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW02	FNNSD (19°)	FNNSD 4700ft FNNSI (5mi, 324°) 3500ft
RW02	FNNSE (38°)	FNNSE 4700ft FNNSI (5mi, 37°) 3500ft
RW02	FNNSG (57°)	FNNSG 4700ft FNNSI (5mi, 105°) 3500ft
	RNAV	FNNSI 3500ft FNNSF (5mi, 37°) 1910ft FNNSM (5mi, 37°) 318ft (9732mi, 276°) 560ft FNNSH (9732mi, 96°) (9732mi, 276°) 3400ft
RW20	MOTKI (338°)	MOTKI 4500ft FN664 (4mi, 39°) 3350ft
	RNAV	FN664 3350ft NIREV (4mi, 2°) 2000ft FN581 (3mi, 298°) 1000ft FN812 (1mi, 246°) 540ft NFFN (2mi, 210°) 90ft MIKAX (15mi, 220°) 3000ft MIKAX (turn) 3000ft

Holding patterns

STAR name	hold at	type	turn	heading*	altitude	leg	speed limit
AGTA2B	AGTAG	VHF	right	164 (344)°	> 7000ft	1.0min timed	ICAO rules
KALT2B	KALTA	VHF	right	295 (115)°	> 5000ft	1.0min timed	ICAO rules
MIKA2B	MIKAX	VHF	left	205 (25)°	> 3000ft	1.0min timed	ICAO rules
TEDU2B	KALTA	VHF	right	295 (115)°	> 5000ft	1.0min timed	ICAO rules
*) magnetic outbound (inbound) holding course
