Airports for X-Plane

Hamilton

Airport details

CountryNew Zealand
StateWaikato
RegionNZ
MunicipalityWaipa District
Elevation167ft (51m)
TimezoneGMT +12
Coordinates-37.86639, 175.33528
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeNZHN
IATA codeHLZ
FAA coden/a

Communication

Hamilton ATIS128.600
Hamilton CTAF122.900
Hamilton Tower125.900
Hamilton Tower119.800
Hamilton Tower122.900
Hamilton CHRISTCHURCH Approach123.800
Hamilton CHRISTCHURCH Approach125.300
Nearby Points of Interest:
Victoria Bridge
-
Claudelands Bridge
-
Fairfield Bridge
-
Waiteti Viaduct

Runway info

Runway 18L / 36R
 length2215m (7267ft)
 bearing200° / 20°
 width45m (148ft)
 surfaceasphalt
 displ threshold0m (0ft) / 139m (456ft)
Runway 18R / 36L
 length626m (2054ft)
 bearing200° / 20°
 width10m (33ft)
 surfaceasphalt
Runway 07 / 25
 length593m (1946ft)
 bearing94° / 274°
 width30m (98ft)
 surfacegrass

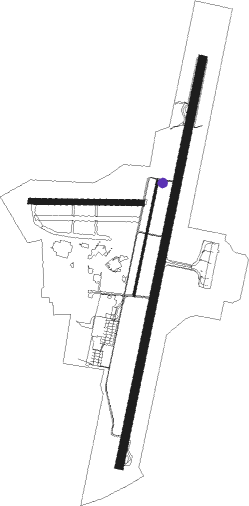

Airport layout - taxiway location G2


Taxiway locations

 A  B1  C4  C5  D1  D2  E1  E2
 G1  G2
Parking locations

 1  2  3  4  9  Aero  CTC

Nearby beacons

codeidentifierdistbearingfrequency
HNHAMILTON VOR/DME111°114
SYSURREY NDB38.5345°350
TGTAURANGA NDB42.178°346
WIWAIUKU NDB43.6319°254
ROROTORUA VOR/DME48.5104°112.10
AAAUCKLAND VOR/DME57.4329°114.80
ORDME62.8209°113
APTAUPO NDB63.1140°230

Departure and arrival routes

Transition altitude13000ft
Transition level15000ft
SID end pointsdistanceoutbound heading
RW18L
 SAPE3P, SAPE3R, SAPE3T19mi76°
 GUND3R, MUGI3P, RUME1T21mi181°
 BUDEN3247mi298°
 GOMU1T, GOMU1R, GOMU1P20mi343°
RW36R
 TEPO4U, TEPO4S, TEPO4Q19mi76°
 TAYLA2247mi298°
 BEKA3U, BEKA3S, BEKA3Q22mi318°
 BIDK2U, AGUL2Q, VATN1S20mi343°

STAR starting pointsdistanceinbound heading
RW18L
 BUDE1A, BUDE2C10.921°
 LAKE2C27.3149°
 ATPU1A, ATPU2C21.1177°
 OLDO2A, OLDO3C18.6256°
RW36R
 DROP1D, DROP1B21.21°
 BEBE1D, BEBE1B18.827°
 KARB1B, KARB1D23.2319°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW18LYTAYLA (199°)TAYLA 3000ft
 RNAVTAYLA 3000ft
LAXOD (7mi, 200°) 1910ft
NZHN (6mi, 198°) 220ft
BUDEN (11mi, 201°) 3600ft
BUDEN (turn) 3600ft
RW36RYBUDEN (21°)BUDEN 3600ft
 RNAVBUDEN 3000ft
NITAK (5mi, 20°) 1810ft
NZHN (6mi, 22°) 214ft
TAYLA (13mi, 19°) 3000ft
TAYLA (turn) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ATPU1ATAYLAVHFright356 (176)°> 3000ft1.0min timedICAO rules
ATPU2CTAYLAVHFright356 (176)°> 3000ft1.0min timedICAO rules
BEBE1BBUDENVHFright176 (356)°3600ft - 60000ft1.0min timedICAO rules
BEBE1BDABKAVHFleft148 (328)°9000ft - 46000ft1.0min timedICAO rules
BEBE1BDADUKVHFleft159 (339)°> 4000ft1.0min timedICAO rules
BEBE1DDABKAVHFleft148 (328)°9000ft - 46000ft1.0min timedICAO rules
BEBE1DDADUKVHFleft159 (339)°> 4000ft1.0min timedICAO rules
BUDE1ABUDENVHFright176 (356)°3600ft - 60000ft1.0min timedICAO rules
BUDE1ATAYLAVHFright356 (176)°> 3000ft1.0min timedICAO rules
BUDE2CBUDENVHFright176 (356)°3600ft - 60000ft1.0min timedICAO rules
DROP1BBUDENVHFright176 (356)°3600ft - 60000ft1.0min timedICAO rules
KARB1BBUDENVHFright176 (356)°3600ft - 60000ft1.0min timedICAO rules
KICK1AHNNDBright149 (329)°> 4000ft1.0min timedICAO rules
KICK1ATAYLAVHFright356 (176)°> 3000ft1.0min timedICAO rules
KICK1BBUDENVHFright176 (356)°3600ft - 60000ft1.0min timedICAO rules
KICK1BHNNDBright149 (329)°> 4000ft1.0min timedICAO rules
KICK1DHNNDBright149 (329)°> 4000ft1.0min timedICAO rules
KICK2CHNNDBright149 (329)°> 4000ft1.0min timedICAO rules
OLDO2ATAYLAVHFright356 (176)°> 3000ft1.0min timedICAO rules
YOGI1ADABKAVHFleft148 (328)°9000ft - 46000ft1.0min timedICAO rules
YOGI1ADADUKVHFleft159 (339)°> 4000ft1.0min timedICAO rules
YOGI1APOKOMVHFright160 (340)°> 3800ftDME 5.0miICAO rules
YOGI1ATAYLAVHFright356 (176)°> 3000ft1.0min timedICAO rules
YOGI1BBUDENVHFright176 (356)°3600ft - 60000ft1.0min timedICAO rules
YOGI1BPOKOMVHFright160 (340)°> 3800ftDME 5.0miICAO rules
YOGI1BTAYLAVHFright356 (176)°> 3000ft1.0min timedICAO rules
YOGI1DPOKOMVHFright160 (340)°> 3800ftDME 5.0miICAO rules
YOGI1DTAYLAVHFright356 (176)°> 3000ft1.0min timedICAO rules
YOGI2CDABKAVHFleft148 (328)°9000ft - 46000ft1.0min timedICAO rules
YOGI2CDADUKVHFleft159 (339)°> 4000ft1.0min timedICAO rules
YOGI2CPOKOMVHFright160 (340)°> 3800ftDME 5.0miICAO rules
*) magnetic outbound (inbound) holding course
