Airports for X-Plane

Palmerston North

Airport details

CountryNew Zealand
StateManawatū-Whanganui
RegionNZ
MunicipalityPalmerston North
Elevation149ft (45m)
TimezoneGMT +12
Coordinates-40.32056, 175.61694
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeNZPM
IATA codePMR
FAA coden/a

Communication

Palmerston North ATIS129.700
Palmerston North CTAF120.600
Palmerston North Ground Control121.700
Palmerston North Tower120.600
Palmerston North OHAKEA Approach123.200
Palmerston North OHAKEA Approach125.100
Palmerston North OHAKEA Approach128.500
Nearby Points of Interest:
Caccia Birch House
-
Cameron Blockhouse

Runway info

Runway 07 / 25
 length1898m (6227ft)
 bearing90° / 270°
 width45m (148ft)
 surfaceasphalt
 displ threshold139m (456ft) / 80m (262ft)
Runway 07R / 25L
 length581m (1906ft)
 bearing90° / 270°
 width60m (197ft)
 surfacegrass

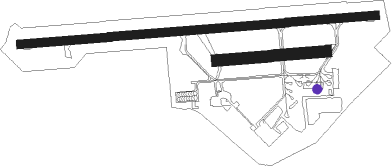

Airport layout - taxiway location 1B


Taxiway locations

 0  10  1A  1B  2  3  4  5
 6  7  9  B  C  D  H

Nearby beacons

codeidentifierdistbearingfrequency
PMPALMERSTON NORTH VOR/DME0.989°113.40
OHOHAKEA VOR/DME12.2296°117.10
WUWHANGANUI NDB34.7301°382
PPPARAPARAUMU NDB45.3227°242
NLNEWLANDS (WELLINGTON) NDB65.2221°358

Departure and arrival routes

Transition altitude13000ft
Transition level15000ft
SID end pointsdistanceoutbound heading
RW07
 DADL2Q20mi84°
 RUXO3Q27mi287°
 TERO3S, DADL3T77mi332°
 TERO3Q, RUXO4S, DADL3S31mi332°
RW25
 GUTN2P16mi156°
 GUTN2U27mi287°
 GUTN3R31mi332°
 GUTN3T77mi332°

STAR starting pointsdistanceinbound heading
RW07
 RINR2B20.263°
 MIBU2B29.973°
 VIRO2B27.0107°
 BUVL1B14.5137°
 TUTS2B19.4175°
 IRMI1B20.0264°
 OKEV1B16.3336°
RW25
 AVGU2A10.25°
 LUNB2A, LUNB1E13.068°
 IDLU3A29.9174°
 TUTS2E19.4175°
 APIT2A23.2214°
 IGPA2A15.3223°
 IRMI1A20.0264°
 OKEV1A16.3336°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW07AKNIN (70°)AKNIN
GUTNI (4mi, 0°) 2500ft
RW07GUTNI (90°)GUTNI 2500ft
RW07NIRUB (114°)NIRUB
GUTNI (5mi, 180°) 2500ft
 RNAVGUTNI 2500ft
LERSO (4mi, 90°) 1440ft
NZPM (5mi, 90°) 171ft
(8377mi, 283°) 2700ft
RUXOX (8373mi, 103°)
RINRI (26mi, 260°) 4000ft
RINRI (turn) 4000ft
RW25-XLEKED (179°)LEKED 4000ft
SEKNI (3mi, 108°) 3140ft
 RNAVSEKNI 3140ft
DANLU (4mi, 157°) 1600ft
PM482 (2mi, 246°) 900ft
NZPM (2mi, 269°) 201ft
GUTNI (9mi, 270°)
PM721 (7mi, 195°)
AVGUV (10mi, 108°) 6000ft
AVGUV (turn) 6000ft
RW25BIDEK (257°)BIDEK
UVUSI (5mi, 188°) 3800ft
RW25NIKIP (286°)NIKIP
UVUSI (5mi, 8°) 3500ft
RW25UVUSI (271°)UVUSI 5600ft
 RNAVUVUSI 3500ft
IVREP (5mi, 275°) 3500ft
NZPM (10mi, 270°) 201ft
GUTNI (9mi, 270°)
AKNIN (4mi, 180°)
AVGUV (10mi, 121°) 6000ft
AVGUV (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AVGU2AAVGUVVHFleft245 (65)°> 5100ft1.0min timed220
AVGU2ARINRIVHFleft195 (15)°> 4000ft1.0min timed210
IGPA2AIGPAXVHFright304 (124)°> 5700ft1.0min timedICAO rules
IRMI1AUVUSIVHFleft74 (254)°> 5600ft1.0min timedICAO rules
LUNB1ERINRIVHFleft195 (15)°> 4000ft1.0min timed210
LUNB2ARINRIVHFleft195 (15)°> 4000ft1.0min timed210
MIBU2BGUTNIVHFright248 (68)°> 2500ft1.0min timedICAO rules
RINR2BGUTNIVHFright248 (68)°> 2500ft1.0min timedICAO rules
RINR2BRINRIVHFleft195 (15)°> 4000ft1.0min timed210
VIRO2BRINRIVHFleft195 (15)°> 4000ft1.0min timed210
*) magnetic outbound (inbound) holding course
