Airports for X-Plane

Whenuapai

Airport details

CountryNew Zealand
StateAuckland
RegionNZ
MunicipalityUpper Harbour
Elevation100ft (30m)
TimezoneGMT +12
Coordinates-36.78778, 174.63028
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeNZWP
IATA coden/a
FAA coden/a

Communication

Whenuapai ATIS128.300
Whenuapai CTAF134.500
Whenuapai Tower134.500
Whenuapai AUCKLAND Approach124.300

Approach frequencies

ILS-cat-IRW03110.718.00mi
ILS-cat-IRW21111.118.00mi
3° GSRW03110.718.00mi
3° GSRW21111.118.00mi
Nearby Points of Interest:
Gluepot Tavern
-
Bluestone Store
-
Dilworth Building
-
Auckland Savings Bank Building
-
Auckland Town Hall
-
Kenneth Myers Centre
-
Albert Barracks Wall
-
Stoneways
-
Pah Homestead
-
Auckland volcanic field
-
Chapel of St John the Evangelist, Auckland
-
Smelting House ruins

Runway info

Runway 03 / 21
 length2030m (6660ft)
 bearing59° / 239°
 width45m (148ft)
 surfaceasphalt
Runway 08 / 26
 length1580m (5184ft)
 bearing96° / 276°
 width45m (148ft)
 surfaceconcrete
Runway 08L / 26R
 length806m (2644ft)
 bearing96° / 276°
 width27m (87ft)
 surfacegrass

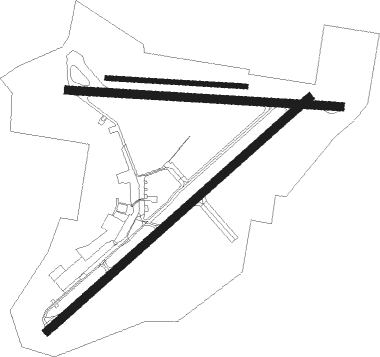

Airport layout


Taxiway locations

 A  A1  A2  A3  B  D  F  HOLD4
Parking locations

 18H  19H  20H  21H

Nearby beacons

codeidentifierdistbearingfrequency
WPWHENUAPAI (AUCKLAND) VOR/DME044°116.40
AAAUCKLAND VOR/DME15.7140°114.80
WIWAIUKU NDB30.1159°254
SYSURREY NDB37.3130°350
SFSPRINGFIELD (WHANGAREI) NDB55.7343°366

Departure and arrival routes

Transition altitude13000ft
Transition level15000ft
SID end pointsdistanceoutbound heading
RW03
 BAYE2A12mi60°
 BAYE1R30mi270°
RW08
 BAYE2B12mi60°
RW21
 WYTA2A12mi239°
 WYTA1Q30mi270°
RW26
 WYTA2B12mi239°

STAR starting pointsdistanceinbound heading
RW03
 ARAD2K60.773°
 OMLE1K29.890°
 BASI2K50.7113°
 LUPR1K30.0226°
 EXOP1K41.1238°
 AA1K15.7320°
RW08
 AA2L15.7320°
RW21
 ARAD1J60.773°
 OMLE1J29.890°
 BASI2J50.7113°
 LUPR1J30.0226°
 EXOP2J41.1238°
 AA1J15.7320°
RW26
 AA1M15.7320°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW03WYTAK (59°)WYTAK 3000ft
 RNAVWYTAK 3000ft
MESUD (7mi, 59°) 1430ft
NZWP (5mi, 57°) 153ft
BAYES (12mi, 60°) 3000ft
BAYES (turn) 3000ft
RW08HALEN (117°)HALEN
MAKEE (5mi, 190°) 3000ft
RW08IGOLF (78°)IGOLF
MAKEE (5mi, 10°) 3000ft
 RNAVMAKEE 3000ft
AKVAR (5mi, 97°) 2000ft
NZWP (6mi, 98°) 118ft
WP804 (3mi, 94°)
BAYES (10mi, 48°) 3000ft
BAYES (turn) 3000ft
RW21BAYES (240°)BAYES 3000ft
 RNAVBAYES 3000ft
KIBIM (8mi, 240°) 1380ft
NZWP (4mi, 240°) 109ft
WYTAK (12mi, 239°) 3000ft
WYTAK (turn) 3000ft
RW26ABUOY (255°)ABUOY
FLAXX (5mi, 190°) 3000ft
RW26BAZEN (297°)BAZEN
FLAXX (5mi, 10°) 3000ft
 RNAVFLAXX 3000ft
URBOL (5mi, 276°) 2000ft
NZWP (6mi, 275°) 103ft
WP604 (3mi, 279°)
WYTAK (10mi, 225°) 3000ft
WYTAK (turn) 3000ft
