Airports for X-Plane

Manama - Bahrain Intl

Airport details

CountryBahrain
StateMuharraq Governorate
RegionOB
AirspaceBahrain Ctr
MunicipalityMuharraq
Elevation2ft (1m)
TimezoneGMT +3
Coordinates26.27083, 50.63361
Magnetic var
Typeland
Available sinceX-Plane v10.32
ICAO codeOBBI
IATA codeBAH
FAA coden/a

Communication

Bahrain Intl ATIS127.200
Bahrain Intl Ground Control121.850
Bahrain Intl Tower118.500
Bahrain Intl Approach125.700

Approach frequencies

ILS-cat-IIRW30R110.318.00mi
ILS-cat-IIRW12L111.518.00mi
3° GSRW30R110.318.00mi
3° GSRW12L111.518.00mi
Nearby Points of Interest:
Bahrain Pearling Trail
-
Manama
-
Zubarah

Runway info

Runway 12L / 30R
 length3963m (13002ft)
 bearing120° / 300°
 width60m (197ft)
 surfaceasphalt
 displ threshold305m (1001ft) / 306m (1004ft)
 blast zone0m (0ft) / 50m (164ft)
Runway 12R / 30L
 length2531m (8304ft)
 bearing120° / 300°
 width45m (148ft)
 surfaceasphalt
 displ threshold305m (1001ft) / 120m (394ft)

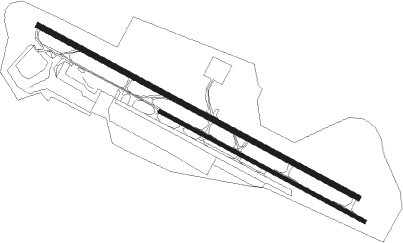

Airport layout


Taxiway locations

 30L  30R  A
Parking locations

 Cargo  GATE  New  TERMINAL

Nearby beacons

codeidentifierdistbearingfrequency
BHRBAHRAIN VOR/DME1.3120°111.80
SIAISA AB (BAHRAIN) VORTAC21187°117.60
SIISA AB (BAHRAIN) NDB22.6185°343
DHADHAHRAN VORTAC26.5269°117.20
RTRAS TANURA NDB41.4306°286
KFADAMMAM VORTAC47.9285°112.30
NJLKING ABDULAZIZ NAVAL BASE VORTAC64.1306°114.80

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW12LLOVAL (120°)LOVAL 2500ft
BI502 (5mi, 120°) 1400ft
RW12LOB1N3 (146°)OB1N3 2500ft
BI502 (6mi, 195°) 1400ft
 RNAVBI502 1400ft
BI501 (4mi, 120°) 1400ft
OBBI (5mi, 120°) 58ft
(3323mi, 243°) 2500ft
RW12RLOVAL (120°)LOVAL 2500ft
BI502 (5mi, 120°) 1400ft
RW12ROB1N3 (146°)OB1N3 2500ft
BI502 (6mi, 195°) 1400ft
 RNAVBI502 1400ft
OB2F1 (5mi, 121°) 1400ft
OBBI (5mi, 119°) 58ft
(3323mi, 243°) 2500ft
RW30LDAXEL (300°)DAXEL 2500ft
BI602 (5mi, 300°) 1400ft
RW30LOB3N1 (275°)OB3N1 2500ft
BI602 (6mi, 234°) 1400ft
 RNAVBI602 1400ft
OB3F1 (4mi, 299°) 1400ft
OBBI (6mi, 301°) 58ft
(3323mi, 243°) 2500ft
RW30RDAXEL (300°)DAXEL 2500ft
BI602 (5mi, 300°) 1400ft
RW30ROB3N1 (275°)OB3N1 2500ft
BI602 (6mi, 234°) 1400ft
 RNAVBI602 1400ft
BI601 (4mi, 300°) 1400ft
OBBI (5mi, 300°) 58ft
(3323mi, 243°) 2500ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
DENVO1ALRASVHFright120 (300)°3000ft - 13000ft1.5min timed210
DENVO1NAGATVHFleft300 (120)°3000ft - 13000ft1.5min timed210
DENVO1OBSASVHFright27 (207)°3000ft - 13000ft1.5min timed240
KOBOK1ALRASVHFright120 (300)°3000ft - 13000ft1.5min timed210
KOBOK1NAGATVHFleft300 (120)°3000ft - 13000ft1.5min timed210
KOBOK1OBSASVHFright27 (207)°3000ft - 13000ft1.5min timed240
LADNA1ALRASVHFright120 (300)°3000ft - 13000ft1.5min timed210
LADNA1NAGATVHFleft300 (120)°3000ft - 13000ft1.5min timed210
LADNA1OBSASVHFright27 (207)°3000ft - 13000ft1.5min timed240
SOGAT1ALRASVHFright120 (300)°3000ft - 13000ft1.5min timed210
SOGAT1NAGATVHFleft300 (120)°3000ft - 13000ft1.5min timed210
SOGAT1OBSASVHFright27 (207)°3000ft - 13000ft1.5min timed240
*) magnetic outbound (inbound) holding course
