Arar - Arar Domestic

Airport details

Country	Saudi Arabia
State	Northern Borders Province
Region	OE
Airspace	Jeddah Ctr
Municipality	`Ar`ar
Elevation	1817ft (554m)
Timezone	GMT +3
Coordinates	30.90657, 41.13836
Magnetic var
Type	land
Available since	X-Plane v11.50
ICAO code	OERR
IATA code	RAE
FAA code	n/a

Communication

No airport communication available for OERR

Approach frequencies

ILS-cat-I	RW28	111.1	18.00mi
3° GS	RW28	111.1	18.00mi

Runway info

Runway 10 / 28
	length	3047m (9997ft)
	bearing	103° / 283°
	width	45m (148ft)
	surface	concrete
	blast zone	59m (194ft) / 61m (200ft)

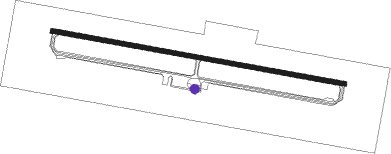

Airport layout - parking location 03

Taxiway locations

Parking locations

Nearby beacons

code	identifier	dist	bearing	frequency
AAR	ARAR VOR/DME	0.2	69°	113.30

Departure and arrival routes

Transition altitude

13000ft

Transition level

15000ft

SID end points		distance	outbound heading
RW10
	RAGE1B	74mi	128°
	NORG1D, NORG1B	110mi	171°
	GADL1B, GADL2D	40mi	224°
	NEVO1D, NEVO1B	83mi	252°
	NALG1B	70mi	288°
RW28
	RAGE1A	74mi	128°
	NORG1A, NORG1C	110mi	171°
	GADL1A	40mi	224°
	NEVO1A	83mi	252°
	NALG1A	70mi	288°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW10	GADLI (44°)	GADLI MERDO (11mi, 44°) 5000ft ARA03 (27mi, 11°) 5000ft OVOVO (9mi, 103°) 3400ft
RW10	NALGU (108°)	NALGU SESRO (40mi, 108°) 5000ft ARA03 (15mi, 115°) 5000ft OVOVO (9mi, 103°) 3400ft
RW10	NEVOL (72°)	NEVOL OBTOM (53mi, 72°) 5000ft ARA03 (20mi, 48°) 5000ft OVOVO (9mi, 103°) 3400ft
RW10	NORGI (351°)	NORGI MIRAB (80mi, 352°) 5000ft 336AT (29mi, 338°) 5000ft OVOVO (4mi, 338°) 3500ft OVOVO (turn) 3500ft
RW10	RAGED (308°)	RAGED ITGIR (43mi, 308°) 5000ft 303AT (31mi, 303°) 5000ft OVOVO (4mi, 303°) 3500ft OVOVO (turn) 3500ft
	RNAV	OVOVO 3400ft OERR (6mi, 103°) 1869ft (2988mi, 233°) 2220ft OVOVO (2984mi, 53°) 3500ft OVOVO (turn)
RW28	GADLI (44°)	GADLI ARA01 (41mi, 44°) 5000ft ELOXA (6mi, 104°) 3800ft ELOXA (turn) 3800ft
RW28	NALGU (108°)	NALGU ARA01 (70mi, 108°) 5000ft ELOXA (6mi, 104°) 3800ft ELOXA (turn) 3800ft
RW28	NEVOL (72°)	NEVOL ARA01 (83mi, 72°) 5000ft ELOXA (6mi, 104°) 3800ft ELOXA (turn) 3800ft
RW28	NORGI (351°)	NORGI MIRAB (80mi, 352°) 5000ft ARA02 (27mi, 23°) 5000ft ELOXA (9mi, 283°) 3500ft
RW28	RAGED (308°)	RAGED ITGIR (43mi, 308°) 5000ft ARA02 (18mi, 330°) 5000ft ELOXA (9mi, 283°) 3500ft
	RNAV	ELOXA 3500ft OERR (6mi, 283°) 1857ft (2988mi, 233°) 2400ft ELOXA (2992mi, 53°) 3800ft ELOXA (turn)
