Airports for X-Plane

Arar - Arar Domestic

Airport details

CountrySaudi Arabia
StateNorthern Borders Province
RegionOE
AirspaceJeddah Ctr
Municipality`Ar`ar
Elevation1817ft (554m)
TimezoneGMT +3
Coordinates30.90657, 41.13836
Magnetic var
Typeland
Available sinceX-Plane v11.50
ICAO codeOERR
IATA codeRAE
FAA coden/a

Communication

No airport communication available for OERR

Approach frequencies

ILS-cat-IRW28111.118.00mi
3° GSRW28111.118.00mi

Runway info

Runway 10 / 28
 length3047m (9997ft)
 bearing103° / 283°
 width45m (148ft)
 surfaceconcrete
 blast zone59m (194ft) / 61m (200ft)

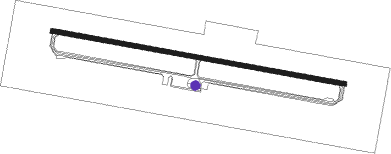

Airport layout - parking location 04


Taxiway locations

 A
Parking locations

 01  02  03  04  H1  H2

Nearby beacons

codeidentifierdistbearingfrequency
AARARAR VOR/DME0.269°113.30

Departure and arrival routes

Transition altitude13000ft
Transition level15000ft
SID end pointsdistanceoutbound heading
RW10
 RAGE1B74mi128°
 NORG1D, NORG1B110mi171°
 GADL1B, GADL2D40mi224°
 NEVO1D, NEVO1B83mi252°
 NALG1B70mi288°
RW28
 RAGE1A74mi128°
 NORG1A, NORG1C110mi171°
 GADL1A40mi224°
 NEVO1A83mi252°
 NALG1A70mi288°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW10GADLI (44°)GADLI
MERDO (11mi, 44°) 5000ft
ARA03 (27mi, 11°) 5000ft
OVOVO (9mi, 103°) 3400ft
RW10NALGU (108°)NALGU
SESRO (40mi, 108°) 5000ft
ARA03 (15mi, 115°) 5000ft
OVOVO (9mi, 103°) 3400ft
RW10NEVOL (72°)NEVOL
OBTOM (53mi, 72°) 5000ft
ARA03 (20mi, 48°) 5000ft
OVOVO (9mi, 103°) 3400ft
RW10NORGI (351°)NORGI
MIRAB (80mi, 352°) 5000ft
336AT (29mi, 338°) 5000ft
OVOVO (4mi, 338°) 3500ft
OVOVO (turn) 3500ft
RW10RAGED (308°)RAGED
ITGIR (43mi, 308°) 5000ft
303AT (31mi, 303°) 5000ft
OVOVO (4mi, 303°) 3500ft
OVOVO (turn) 3500ft
 RNAVOVOVO 3400ft
OERR (6mi, 103°) 1869ft
(2988mi, 233°) 2220ft
OVOVO (2984mi, 53°) 3500ft
OVOVO (turn)
RW28GADLI (44°)GADLI
ARA01 (41mi, 44°) 5000ft
ELOXA (6mi, 104°) 3800ft
ELOXA (turn) 3800ft
RW28NALGU (108°)NALGU
ARA01 (70mi, 108°) 5000ft
ELOXA (6mi, 104°) 3800ft
ELOXA (turn) 3800ft
RW28NEVOL (72°)NEVOL
ARA01 (83mi, 72°) 5000ft
ELOXA (6mi, 104°) 3800ft
ELOXA (turn) 3800ft
RW28NORGI (351°)NORGI
MIRAB (80mi, 352°) 5000ft
ARA02 (27mi, 23°) 5000ft
ELOXA (9mi, 283°) 3500ft
RW28RAGED (308°)RAGED
ITGIR (43mi, 308°) 5000ft
ARA02 (18mi, 330°) 5000ft
ELOXA (9mi, 283°) 3500ft
 RNAVELOXA 3500ft
OERR (6mi, 283°) 1857ft
(2988mi, 233°) 2400ft
ELOXA (2992mi, 53°) 3800ft
ELOXA (turn)
