Airports for X-Plane

Amman - Amman Marka Intl

Airport details

CountryJordan
StateAmman
RegionOJ
AirspaceAmman Ctr
MunicipalityMarka Sub-District
Elevation2555ft (779m)
TimezoneGMT +2
Coordinates31.97270, 35.99157
Magnetic var
Typeland
Available sinceX-Plane v10.32
ICAO codeOJAM
IATA codeADJ
FAA coden/a

Communication

Amman Marka Intl AMMAN Ground Control121.700
Amman Marka Intl AMMAN Tower118.100
Amman Marka Intl AMMAN Approach128.900

Approach frequencies

ILS-cat-IRW24109.518.00mi
3° GSRW24109.518.00mi
Nearby Points of Interest:
Salt
-
Bethabara
-
Kastron Mefaa

Runway info

Runway 06 / 24
 length3281m (10764ft)
 bearing68° / 248°
 width45m (148ft)
 surfaceconcrete
 blast zone225m (738ft) / 120m (394ft)

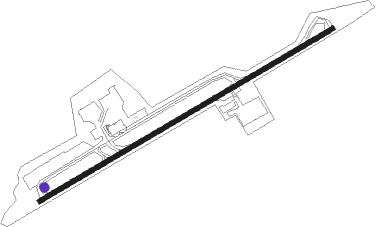

Airport layout - taxiway location A2


Taxiway locations

 A1  A2  B  C
Parking locations

 Academy  New  South

Nearby beacons

codeidentifierdistbearingfrequency
AMNAMMAN VOR/DME4.267°116.30
QAQUEEN ALIA NDB15.4157°410
QAAQUEEN ALIA VOR/DME16.3145°115.20
MDBMADABA NDB17.3208°399
QTRQATRANEH VOR/DME43.6175°112.90
MZDMETZADA VOR/DME49.2223°115
RMDRAMAT DAVID NDB58.4311°368

Departure and arrival routes

Transition altitude13000ft
Transition level15000ft
SID end pointsdistanceoutbound heading
RW06
 LOSA1M, LOSA5D27mi69°
 LUDA5D, LUDA1M32mi83°
 KINU5D39mi120°
 KULD5D, KULD1M48mi140°
 QTR5D, QTR01M44mi175°
 MOUA1M23mi246°
 MUVI5D25mi251°
 OSAM1M19mi264°
 RALN5D23mi265°
RW24
 LOSA4D, LOSA1N27mi69°
 LUDA1N, LUDA4D32mi83°
 KULD4D, KULD1N48mi140°
 QTR4D, QTR01N44mi175°
 MOUA1N23mi246°
 MUVI4D26mi253°
 OSAM1N19mi264°
 RALN4D23mi265°

STAR starting pointsdistanceinbound heading
RW06
 OSAM1L19.184°
 RALN5A23.085°
 LOSA1L, LOSA5A27.2249°
 LUDA5A, LUDA1L32.3263°
 ELOX1L46.1298°
 KULD1L, KULD5A48.4320°
 QTR5A, QTR01L43.6355°
RW24
 OSAM1K19.184°
 RALN4A23.085°
 LOSA1K, LOSA4A27.2249°
 LUDA1K, LUDA4A32.3263°
 ELOX1K46.1298°
 KINU4A38.8300°
 KULD4A, KULD1K48.4320°
 QTR01K, QTR4A43.6355°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW06EMILO (44°)EMILO 7000ft
SOLOL (5mi, 330°) 5500ft
RW06MUSAL (89°)MUSAL 7000ft
SOLOL (5mi, 151°) 5500ft
 RNAVSOLOL 5500ft
ORKAB (5mi, 68°) 4200ft
OJAM (6mi, 68°) 2606ft
AM064 (1mi, 68°) 2960ft
EMILO (13mi, 227°) 7000ft
EMILO (turn)
RW24IVADO (248°)IVADO 9000ft
NIVLU (6mi, 248°) 7200ft
RW24LOXER (262°)LOXER 9000ft
NIVLU (7mi, 298°) 7200ft
 RNAVNIVLU 7200ft
AM240 (10mi, 248°) 4100ft
OJAM (6mi, 248°) 2509ft
ORKAB (6mi, 248°) 4900ft
MUSAL (7mi, 287°) 7000ft
MUSAL (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
LOSA1LMUSALVHFright330 (150)°> 7000ftDME 4.0mi210
LUDA1LMUSALVHFright330 (150)°> 7000ftDME 4.0mi210
OSAM1LMUSALVHFright330 (150)°> 7000ftDME 4.0mi210
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
