Airports for X-Plane

Kuwait City - Kuwait Intl

Airport details

CountryKuwait
StateFarwaniya
RegionOK
AirspaceKuwait Ctr
Elevation204ft (62m)
TimezoneGMT +3
Coordinates29.22927, 47.98426
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeOKBK
IATA codeKWI
FAA coden/a

Communication

Kuwait Intl ATIS126.225
Kuwait Intl Ground Control121.900
Kuwait Intl Ground Control121.700
Kuwait Intl Tower118.300
Kuwait Intl Approach124.800
Kuwait Intl Departure121.300

Approach frequencies

ILS-cat-IIRW33L109.518.00mi
ILS-cat-IIRW15R111.318.00mi
ILS-cat-IIRW15L110.118.00mi
ILS-cat-IIRW33R110.518.00mi
3° GSRW33L109.518.00mi
3° GSRW15R111.318.00mi
3° GSRW15L110.118.00mi
3° GSRW33R110.518.00mi

Runway info

Runway 15L / 33R
 length3510m (11516ft)
 bearing152° / 332°
 width45m (148ft)
 surfaceasphalt
 blast zone120m (394ft) / 120m (394ft)
Runway 15R / 33L
 length3410m (11188ft)
 bearing152° / 332°
 width45m (148ft)
 surfaceconcrete
 blast zone65m (213ft) / 60m (197ft)

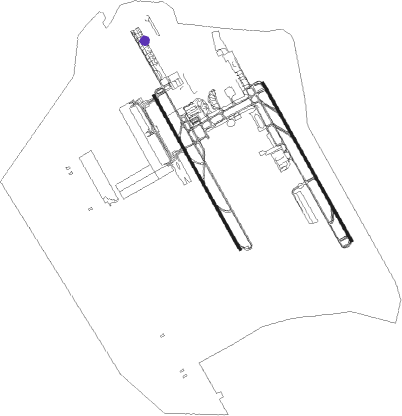

Airport layout - parking location 73


Taxiway locations

 E  E1  E10  E11  E12  E14  E2  E3
 E4  E5  E6  E7  E8  E9  L  L5
 M15  T  W1  W11  W12  W13  W14  W16
 W17  W18  W19  W2  W20  W3  W4  W5
 W8
Parking locations

 1  127  127A  128  129  129A  130  131
 132  133  134  135  136  137  138  139
 2  21  22  24  25  26  27  28
 29  3  4  40  41  42  43  45
 46  5  501  503  505  507  509  50A
 50B  511  513  515  517  519  52  533
 534  535  536  537  538  539  540  54A
 55  56B  63  64  65  71  72  73
 73A  74  75  75A  76  77  77A  78
 79  B1  B2  G10  G12  G13  G14  G15
 G16  G17  G18  G19  G20  G21  G22  G23
 G25  G26  G9  GA1  T1  VIP1  VIP2

Nearby beacons

codeidentifierdistbearingfrequency
KUAKUWAIT VOR/DME1.9304°114.15
ASBALI AL SALEM VORTAC25.3284°116
PWRPWR (ALI AL SALEM) TACAN25.3284°135.40
KFRWAFRA VOR/DME36.5182°112

Departure and arrival routes

Transition altitude13000ft
SID end pointsdistanceoutbound heading
RW15L
 RALK4E21mi57°
 ALVA4E23mi75°
 SESR4E49mi95°
 BOXI4E50mi118°
 ASVI4E46mi151°
 KFR4E40mi212°
RW15R
 RALK4E21mi57°
 ALVA4E23mi75°
 SESR4E49mi95°
 BOXI4E50mi118°
 ASVI4E46mi151°
 KFR4E40mi212°
RW33L
 RALK4F21mi57°
 ALVA4F23mi75°
 SESR4F49mi95°
 BOXI4F50mi118°
 ASVI4F46mi151°
 KFR4F40mi212°
RW33R
 RALK4F21mi57°
 ALVA4F23mi75°
 SESR4F49mi95°
 BOXI4F50mi118°
 ASVI4F46mi151°
 KFR4F40mi212°

STAR starting pointsdistanceinbound heading
RW15 (ALL)
 KFR3D36.52°
 SIDA3D47.1218°
 RALK3D20.9237°
 ALVA3D23.1255°
 DESL3D56.5257°
 SESR3D48.9275°
 DEBT3D, DEBT3E39.8314°
 ASVI3D46.2331°
 KUNR3D42.7344°
RW33 (ALL)
 RALK3C20.9237°
 ALVA3C23.1255°
 SESR3C48.9275°
RW33L
 ASVI3C, DEBT3C, KFR3C, KUNR3C17.0333°
RW33R
 KUNR3C, KFR3C, DEBT3C, ASVI3C17.0333°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW15LIVETA (126°)IVETA 3000ft
RERAN (6mi, 68°) 2400ft
RW15LPASEL (190°)PASEL 3000ft
RERAN (8mi, 248°) 2400ft
 RNAVRERAN 2400ft
FF15L (6mi, 152°) 2000ft
SD15L (3mi, 152°) 1000ft
OKBK (3mi, 157°) 215ft
(3259mi, 239°) 1200ft
LUDIM (3274mi, 59°) 5000ft
RW15RIVETA (126°)IVETA 3000ft
DATAR (5mi, 68°) 2400ft
RW15RPASEL (190°)PASEL 3000ft
DATAR (9mi, 248°) 2400ft
 RNAVDATAR 2400ft
FF15R (5mi, 152°) 2000ft
SD15R (3mi, 152°) 930ft
OKBK (4mi, 139°) 185ft
(3259mi, 239°) 1200ft
LUDIM (3274mi, 59°) 5000ft
RW33LKFR (2°)KFR
ASLUN (23mi, 360°) 3000ft
RARVA (6mi, 68°) 2500ft
RW33LTABTO (297°)TABTO 3000ft
RARVA (9mi, 248°) 2500ft
 RNAVRARVA 2500ft
FF33L (6mi, 332°) 2000ft
OKBK (6mi, 340°) 225ft
(3259mi, 239°) 2400ft
LUDIM (3274mi, 59°) 5000ft
RW33RKFR (2°)KFR
ASLUN (23mi, 360°) 3000ft
GINBI (8mi, 68°) 2500ft
RW33RTABTO (297°)TABTO 3000ft
GINBI (8mi, 248°) 2500ft
 RNAVGINBI 2500ft
FF33R (5mi, 332°) 2000ft
OKBK (7mi, 330°) 260ft
(3259mi, 239°) 2400ft
LUDIM (3274mi, 59°) 5000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ALVA3CTABTOVHFright62 (242)°3000ft - 3000ft1.0min timedICAO rules
ASVI3CPEDELVHFleft152 (332)°3000ft - 3000ft1.0min timedICAO rules
ASVI3DEMEBAVHFright152 (332)°> 3000ft1.0min timedICAO rules
DEBT3CPEDELVHFleft152 (332)°3000ft - 3000ft1.0min timedICAO rules
DEBT3EEMEBAVHFright152 (332)°> 3000ft1.0min timedICAO rules
KFR3CPEDELVHFleft152 (332)°3000ft - 3000ft1.0min timedICAO rules
KFR3DEMEBAVHFright152 (332)°> 3000ft1.0min timedICAO rules
KUNR3CPEDELVHFleft152 (332)°3000ft - 3000ft1.0min timedICAO rules
KUNR3DEMEBAVHFright152 (332)°> 3000ft1.0min timedICAO rules
RALK3CTABTOVHFright62 (242)°3000ft - 3000ft1.0min timedICAO rules
RALK3DRALKAVHFright95 (275)°3000ft - 46000ft1.0min timed250
SESR3CTABTOVHFright62 (242)°3000ft - 3000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
