Al Ain - Al Ain Intl

Airport details

CountryUnited Arab Emirates
StateAbu Dhabi Emirate
RegionOM
AirspaceEmirates Ctr
MunicipalityAl Ain International Airport
Elevation869ft (265m)
TimezoneGMT +4
Coordinates24.27736, 55.62441
Magnetic var
Typeland
Available sinceX-Plane v10.30
ICAO codeOMAL
IATA codeAAN
FAA coden/a

Communication

Al Ain INTL Ground Control129.150
Al Ain INTL Tower119.850
Al Ain INTL Approach119.850

Approach frequencies

ILS-cat-IRW01111.918.00mi
3° GSRW01111.918.00mi
Nearby Points of Interest:
Al Ain
-
Bidaa Bint Saud
-
Cultural Sites of Al Ain (Hafit, Hili, Bidaa Bint Saud and Oases Areas)

Runway info

Runway 01 / 19
 length4021m (13192ft)
 bearing8° / 188°
 width45m (148ft)
 surfaceasphalt
 blast zone255m (837ft) / 255m (837ft)

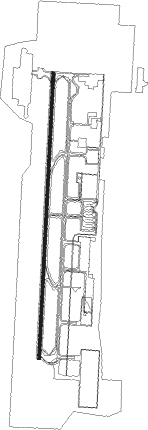

Airport layout


Taxiway locations
Parking locations

Nearby beacons

codeidentifierdistbearingfrequency
ALAAL AIN VOR/DME0.5296°115.90
ALNAL AIN VOR/DME1.4226°112.60
MINMINHAD VOR/DME46.7343°115.20
ADVABU DHABI VOR/DME52.7278°114.25
FJVFUJAIRAH VOR/DME63.542°113.80

Departure and arrival routes

Transition altitude13000ft
Transition level15000ft
SID end pointsdistanceoutbound heading
RW01
 GIDI1H26mi44°
 MURG1H28mi59°
 LABR2H13mi175°
 RETA2H19mi189°
 ROVO1H14mi276°
RW19
 GIDI1J26mi44°
 MURG1J28mi59°
 LABR2J13mi175°
 RETA2J19mi189°
 ROVO1J14mi276°

STAR starting pointsdistanceinbound heading
RW01
 KANI1K16.470°
 ROVO2K14.496°
 GIDI2K25.7224°
 ITRA1K10.2290°
RW19
 KANI2L16.470°
 ROVO3L14.496°
 GIDI2L25.7224°
 ITRA2L, ITRA2M10.2290°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW01ASVAD (12°)ASVAD 2500ft
AL013 (4mi, 8°) 2500ft
 RNAVAL013 2500ft
OMAL (8mi, 14°) 915ft
AL001 (4mi, 357°)
AL002 (6mi, 277°) 2500ft
ROVOS (9mi, 252°) 4000ft
ROVOS (turn) 4000ft
RW19AL007 (152°)AL007 3500ft
AL008 (6mi, 97°) 2500ft
RW19AL009 (218°)AL009 3500ft
AL008 (6mi, 277°) 2500ft
RW19AL012 (185°)AL012 5500ft
AL008 (5mi, 188°) 2500ft
 RNAVAL008 2500ft
AL011 (5mi, 188°) 2500ft
OMAL (6mi, 180°) 888ft
AL004 (6mi, 195°)
AL005 (6mi, 262°) 2500ft
ROVOS (11mi, 320°) 4000ft
ROVOS (turn) 4000ft
