Al Ain - Al Ain Intl

Airport details

Country	United Arab Emirates
State	Abu Dhabi Emirate
Region	OM
Airspace	Emirates Ctr
Municipality	Al Ain International Airport
Elevation	869ft (265m)
Timezone	GMT +4
Coordinates	24.27736, 55.62441
Magnetic var
Type	land
Available since	X-Plane v10.30
ICAO code	OMAL
IATA code	AAN
FAA code	n/a

Communication

Al Ain INTL Ground Control	129.150
Al Ain INTL Tower	119.850
Al Ain INTL Approach	119.850

Approach frequencies

ILS-cat-I	RW01	111.9	18.00mi
3° GS	RW01	111.9	18.00mi

Nearby Points of Interest:

Al Ain

Bidaa Bint Saud

Cultural Sites of Al Ain (Hafit, Hili, Bidaa Bint Saud and Oases Areas)

Runway info

Runway 01 / 19
	length	4021m (13192ft)
	bearing	8° / 188°
	width	45m (148ft)
	surface	asphalt
	blast zone	255m (837ft) / 255m (837ft)

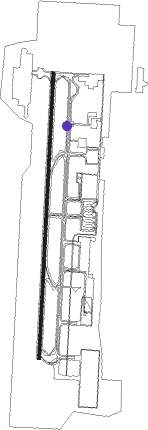

Airport layout - taxiway location F

Taxiway locations

Parking locations

Nearby beacons

code	identifier	dist	bearing	frequency
ALA	AL AIN VOR/DME	0.5	296°	115.90
ALN	AL AIN VOR/DME	1.4	226°	112.60
MIN	MINHAD VOR/DME	46.7	343°	115.20
ADV	ABU DHABI VOR/DME	52.7	278°	114.25
FJV	FUJAIRAH VOR/DME	63.5	42°	113.80

Departure and arrival routes

Transition altitude

13000ft

Transition level

15000ft

SID end points		distance	outbound heading
RW01
	GIDI1H	26mi	44°
	MURG1H	28mi	59°
	LABR2H	13mi	175°
	RETA2H	19mi	189°
	ROVO1H	14mi	276°
RW19
	GIDI1J	26mi	44°
	MURG1J	28mi	59°
	LABR2J	13mi	175°
	RETA2J	19mi	189°
	ROVO1J	14mi	276°

STAR starting points		distance	inbound heading
RW01
	KANI1K	16.4	70°
	ROVO2K	14.4	96°
	GIDI2K	25.7	224°
	ITRA1K	10.2	290°
RW19
	KANI2L	16.4	70°
	ROVO3L	14.4	96°
	GIDI2L	25.7	224°
	ITRA2L, ITRA2M	10.2	290°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW01	ASVAD (12°)	ASVAD 2500ft AL013 (4mi, 8°) 2500ft
	RNAV	AL013 2500ft OMAL (8mi, 14°) 915ft AL001 (4mi, 357°) AL002 (6mi, 277°) 2500ft ROVOS (9mi, 252°) 4000ft ROVOS (turn) 4000ft
RW19	AL007 (152°)	AL007 3500ft AL008 (6mi, 97°) 2500ft
RW19	AL009 (218°)	AL009 3500ft AL008 (6mi, 277°) 2500ft
RW19	AL012 (185°)	AL012 5500ft AL008 (5mi, 188°) 2500ft
	RNAV	AL008 2500ft AL011 (5mi, 188°) 2500ft OMAL (6mi, 180°) 888ft AL004 (6mi, 195°) AL005 (6mi, 262°) 2500ft ROVOS (11mi, 320°) 4000ft ROVOS (turn) 4000ft
