Airports for X-Plane

Jebel Ali - Al Maktoum Intl

Airport details

CountryUnited Arab Emirates
StateDubai
RegionOM
AirspaceEmirates Ctr
Elevation169ft (52m)
TimezoneGMT +4
Coordinates24.89449, 55.15297
Magnetic var
Typeland
Available sinceX-Plane v10.30
ICAO codeOMDW
IATA codeDWC
FAA coden/a

Communication

Al Maktoum Intl ATIS126.475
Al Maktoum Intl Al Maktoum Ground Control118.375
Al Maktoum Intl Al Maktoum Tower118.625
Al Maktoum Intl Academy Tower118.775
Al Maktoum Intl Al Maktoum Approach124.025
Al Maktoum Intl Dubai South Approach120.400
Al Maktoum Intl Minhad Approach122.500
Al Maktoum Intl Dubai North Departure126.200
Al Maktoum Intl Dubai South Departure121.025

Approach frequencies

ILS-cat-IIIRW12111.7518.00mi
ILS-cat-IIIRW30109.7518.00mi
ILS-cat-IRW31110.5518.00mi
3° GSRW31110.5518.00mi
3° GSRW12111.7518.00mi
3° GSRW30109.7518.00mi
Nearby Points of Interest:
Dubai Creek
-
Sharjah

Runway info

Runway 12 / 30
 length4501m (14767ft)
 bearing119° / 299°
 width60m (197ft)
 surfaceasphalt
 blast zone135m (443ft) / 137m (449ft)
Runway 13 / 31
 length1839m (6033ft)
 bearing119° / 299°
 width30m (98ft)
 surfaceasphalt
 displ threshold151m (495ft) / 150m (492ft)
 blast zone61m (200ft) / 62m (203ft)

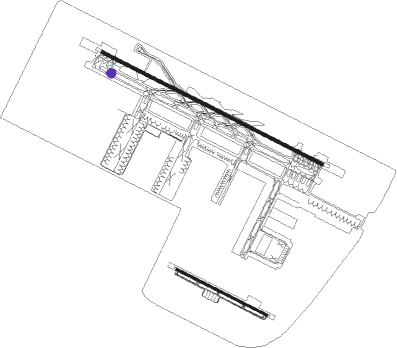

Airport layout - taxiway location V


Taxiway locations

 U4  V  V1  V10  V11  V12  V13  V16
 V17  V18  V19  V2  V20  V21  V3  V4
 V6  V7  V8  V9  W  W10  W11  W14
 W15  W16  W17  W18  W19  W20  W21  W4
 W7  W8  Z  Z11  Z12  Z13  Z14  Z15
 Z16  Z17  Z20  Z21  Z22  Z23  Z24  Z5
 Z6  Z7  Z8  Z9
Parking locations

 G1  G10  G100  G101  G102  G103  G11  G12
 G13  G14  G15  G16  G17  G18  G19  G2
 G20  G3  G4  G5  G6  G7  G8  G9
 S289  S290  S291  S292  S293  S294  S295  S296
 S297  S298  S299  S300  S301  S302  S303  S304
 S305  S306  S307  S308  S309  S310  S311  S312
 S313  S324  S325  S326  S327  S328  S329  S330
 S331  S332  S340  S341  S342  S343  S344  S345
 S346  S347L  S347R  S348L  S348R  S401  S402  S403
 S404  S405L  S405R  S406L  S406R  S407L  S407R  S408L
 S408R  S409L  S409R  S410  S420L  S420R  S421L  S421R
 S422L  S422R  S423L  S423R  S424L  S424R  S425L  S425R
 S440L  S440R  S441  S442L  S442R  S443L  S443R  S444L
 S444R  S445L  S446L  S446R  S448  S45R  S801  S802
 S803  S804  S805  S806  S807  S808  S809  S810
 S811  S812

Nearby beacons

codeidentifierdistbearingfrequency
MINMINHAD VOR/DME15.361°115.20
ADVABU DHABI VOR/DME38.7225°114.25
ALAAL AIN VOR/DME44.6143°115.90
ALNAL AIN VOR/DME45.4144°112.60
ALBAL BATEEN (ABU DHABI) VOR/DME47.2237°114
ABMABUMUSA ISLAND NDB59.4352°285
RAVRAS AL KHAIMAH VOR/DME59.949°113.60

Departure and arrival routes

Transition altitude13000ft
Transition level15000ft
SID end pointsdistanceoutbound heading
RW12
 DAVM4J64mi27°
 NOLS3J56mi72°
 ANVI6J43mi98°
 KUTL3J12mi262°
 MIRO3J37mi288°
 NABI3J39mi297°
 SENP3J43mi305°
 RIDA3J43mi315°
RW13
 ANVI2N43mi98°
 MIRO1N37mi288°
 NABI1N39mi297°
RW30
 DAVM4L64mi27°
 NOLS3L56mi72°
 ANVI4L43mi98°
 KUTL3L12mi262°
 MIRO3L37mi288°
 NABI3L39mi297°
 SENP3L43mi305°
 RIDA3L43mi315°
RW31
 ANVI1P43mi98°
 MIRO1P37mi288°
 NABI1P39mi297°

STAR starting pointsdistanceinbound heading
RW12
 ELOV3Y44.594°
 LORI3Y27.494°
 GERU3Y39.099°
 DATO5Y42.3149°
 GONV5Y50.3166°
 PUVA6Y52.2219°
 UMAM4Y48.3273°
 GIDI5Y46.0291°
RW13
 ELOV3Y44.594°
 LORI3Y27.494°
 GERU3Y39.099°
 DATO5Y42.3149°
 GONV5Y50.3166°
 PUVA6Y52.2219°
 UMAM4Y48.3273°
 GIDI5Y46.0291°
RW30
 ELOV3Z44.594°
 LORI3Z27.494°
 GERU3Z39.099°
 DATO5Z42.3149°
 GONV5Z50.3166°
 PUVA6Z52.2219°
 UMAM4Z48.3273°
 GIDI5Z46.0291°
RW31
 ELOV3Z44.594°
 LORI3Z27.494°
 GERU3Z39.099°
 DATO5Z42.3149°
 GONV5Z50.3166°
 PUVA6Z52.2219°
 UMAM4Z48.3273°
 GIDI5Z46.0291°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW12NITRI (120°)NITRI 3000ft
PUSVO (4mi, 119°) 3000ft
 RNAVPUSVO 3000ft
DW660 (5mi, 119°) 2000ft
OMDW (7mi, 122°) 165ft
REVUL (12mi, 117°) 3000ft
REVUL (turn) 3000ft
RW13ORPAT (84°)ORPAT
IVOPU (6mi, 299°)
EF670 (4mi, 299°) 2000ft
EF671 (3mi, 34°) 2000ft
EF672 (4mi, 119°) 2000ft
RW13TOVLA (100°)TOVLA
DW400 (5mi, 75°) 2000ft
EF671 (5mi, 81°) 2000ft
EF672 (4mi, 119°) 2000ft
 RNAVEF672 2000ft
EF667 (6mi, 119°) 2000ft
OMDW (5mi, 106°) 205ft
EF673 (4mi, 137°)
SEVNU (5mi, 169°) 2000ft
SEVNU (turn) 2000ft
RW30GEXIK (298°)GEXIK 3000ft
REVUL (2mi, 299°) 3000ft
 RNAVREVUL 3000ft
DW760 (5mi, 299°) 2000ft
OMDW (8mi, 297°) 221ft
LADMO (14mi, 300°) 3000ft
LADMO (turn) 3000ft
RW31KUKPO (329°)KUKPO 3000ft
EF870 (7mi, 3°) 2000ft
PEBER (3mi, 34°) 2000ft
EF871 (4mi, 299°) 2000ft
RW31SIBVA (334°)SIBVA 2000ft
ODGAK (5mi, 119°) 2000ft
EF870 (4mi, 119°) 2000ft
PEBER (3mi, 34°) 2000ft
EF871 (4mi, 299°) 2000ft
RW31SINPU (297°)SINPU 7000ft
EF869 (7mi, 281°)
PEBER (6mi, 299°) 2000ft
EF871 (4mi, 299°) 2000ft
 RNAVEF871 2000ft
EF866 (4mi, 299°) 2000ft
OMDW (8mi, 308°) 205ft
EF868 (2mi, 262°)
EF872 (3mi, 214°)
SIBVA (8mi, 122°) 2000ft
SIBVA (turn) 2000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ELOV3YTOVLAVHFleft275 (95)°3000ft - 10000ft1.0min timed210
ELOV3ZTOVLAVHFleft275 (95)°3000ft - 10000ft1.0min timed210
GERU3YTOVLAVHFleft275 (95)°3000ft - 10000ft1.0min timed210
GERU3ZTOVLAVHFleft275 (95)°3000ft - 10000ft1.0min timed210
GIDI5YSINPUVHFright88 (268)°3000ft - 10000ft1.0min timed210
GIDI5ZSINPUVHFright88 (268)°3000ft - 10000ft1.0min timed210
LORI3YTOVLAVHFleft275 (95)°3000ft - 10000ft1.0min timed210
LORI3ZTOVLAVHFleft275 (95)°3000ft - 10000ft1.0min timed210
UMAM4YSINPUVHFright88 (268)°3000ft - 10000ft1.0min timed210
UMAM4ZSINPUVHFright88 (268)°3000ft - 10000ft1.0min timed210
*) magnetic outbound (inbound) holding course
