Airports4XP | OMDW | Jebel Ali

Jebel Ali - Al Maktoum Intl

Airport details

Country	United Arab Emirates
State	Dubai
Region	OM
Airspace	Emirates Ctr
Elevation	169ft (52m)
Timezone	GMT +4
Coordinates	24.89449, 55.15297
Magnetic var	2.3°
Type	land
Available since	X-Plane v10.30
ICAO code	OMDW
IATA code	DWC
FAA code	n/a

Communication

Al Maktoum Intl ATIS	126.475
Al Maktoum Intl Al Maktoum Ground Control	118.375
Al Maktoum Intl Al Maktoum Tower	118.625
Al Maktoum Intl Academy Tower	118.775
Al Maktoum Intl Al Maktoum Approach	124.025
Al Maktoum Intl Dubai South Approach	120.400
Al Maktoum Intl Minhad Approach	122.500
Al Maktoum Intl Dubai North Departure	126.200
Al Maktoum Intl Dubai South Departure	121.025

Approach frequencies

ILS-cat-III	RW12	111.75	18.00mi
ILS-cat-III	RW30	109.75	18.00mi
ILS-cat-I	RW31	110.55	18.00mi
3° GS	RW31	110.55	18.00mi
3° GS	RW12	111.75	18.00mi
3° GS	RW30	109.75	18.00mi

Nearby Points of Interest:

Dubai Creek

Sharjah

Runway info

Runway 12 / 30
	length	4501m (14767ft)
	bearing	119° / 299°
	width	60m (197ft)
	surface	asphalt
	blast zone	135m (443ft) / 137m (449ft)
Runway 13 / 31
	length	1839m (6033ft)
	bearing	119° / 299°
	width	30m (98ft)
	surface	asphalt
	displ threshold	151m (495ft) / 150m (492ft)
	blast zone	61m (200ft) / 62m (203ft)

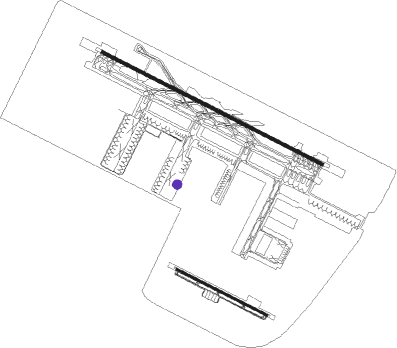

Airport layout - parking location S407L

Taxiway locations

Parking locations

Recommended scenery file

Type	3D
Author	ckamaleao
Released	07 Jul 2022
Features	› has ATC flow › has taxi route › has ground routes

Nearby beacons

code	identifier	dist	bearing	frequency
MIN	MINHAD VOR/DME	15.3	61°	115.20
ADV	ABU DHABI VOR/DME	38.7	225°	114.25
ALA	AL AIN VOR/DME	44.6	143°	115.90
ALN	AL AIN VOR/DME	45.4	144°	112.60
ALB	AL BATEEN (ABU DHABI) VOR/DME	47.2	237°	114
ABM	ABUMUSA ISLAND NDB	59.4	352°	285
RAV	RAS AL KHAIMAH VOR/DME	59.9	49°	113.60

Departure and arrival routes

Transition altitude

13000ft

Transition level

15000ft

SID end points		distance	outbound heading
RW12
	DAVM4J	64mi	27°
	NOLS3J	56mi	72°
	ANVI6J	43mi	98°
	KUTL3J	12mi	262°
	MIRO3J	37mi	288°
	NABI3J	39mi	297°
	SENP3J	43mi	305°
	RIDA3J	43mi	315°
RW13
	ANVI2N	43mi	98°
	MIRO1N	37mi	288°
	NABI1N	39mi	297°
RW30
	DAVM4L	64mi	27°
	NOLS3L	56mi	72°
	ANVI4L	43mi	98°
	KUTL3L	12mi	262°
	MIRO3L	37mi	288°
	NABI3L	39mi	297°
	SENP3L	43mi	305°
	RIDA3L	43mi	315°
RW31
	ANVI1P	43mi	98°
	MIRO1P	37mi	288°
	NABI1P	39mi	297°

STAR starting points		distance	inbound heading
RW12
	ELOV3Y	44.5	94°
	LORI3Y	27.4	94°
	GERU3Y	39.0	99°
	DATO5Y	42.3	149°
	GONV5Y	50.3	166°
	PUVA6Y	52.2	219°
	UMAM4Y	48.3	273°
	GIDI5Y	46.0	291°
RW13
	ELOV3Y	44.5	94°
	LORI3Y	27.4	94°
	GERU3Y	39.0	99°
	DATO5Y	42.3	149°
	GONV5Y	50.3	166°
	PUVA6Y	52.2	219°
	UMAM4Y	48.3	273°
	GIDI5Y	46.0	291°
RW30
	ELOV3Z	44.5	94°
	LORI3Z	27.4	94°
	GERU3Z	39.0	99°
	DATO5Z	42.3	149°
	GONV5Z	50.3	166°
	PUVA6Z	52.2	219°
	UMAM4Z	48.3	273°
	GIDI5Z	46.0	291°
RW31
	ELOV3Z	44.5	94°
	LORI3Z	27.4	94°
	GERU3Z	39.0	99°
	DATO5Z	42.3	149°
	GONV5Z	50.3	166°
	PUVA6Z	52.2	219°
	UMAM4Z	48.3	273°
	GIDI5Z	46.0	291°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW12	NITRI (120°)	NITRI 3000ft PUSVO (4mi, 119°) 3000ft
	RNAV	PUSVO 3000ft DW660 (5mi, 119°) 2000ft OMDW (7mi, 122°) 165ft REVUL (12mi, 117°) 3000ft REVUL (turn) 3000ft
RW13	ORPAT (84°)	ORPAT IVOPU (6mi, 299°) EF670 (4mi, 299°) 2000ft EF671 (3mi, 34°) 2000ft EF672 (4mi, 119°) 2000ft
RW13	TOVLA (100°)	TOVLA DW400 (5mi, 75°) 2000ft EF671 (5mi, 81°) 2000ft EF672 (4mi, 119°) 2000ft
	RNAV	EF672 2000ft EF667 (6mi, 119°) 2000ft OMDW (5mi, 106°) 205ft EF673 (4mi, 137°) SEVNU (5mi, 169°) 2000ft SEVNU (turn) 2000ft
RW30	GEXIK (298°)	GEXIK 3000ft REVUL (2mi, 299°) 3000ft
	RNAV	REVUL 3000ft DW760 (5mi, 299°) 2000ft OMDW (8mi, 297°) 221ft LADMO (14mi, 300°) 3000ft LADMO (turn) 3000ft
RW31	KUKPO (329°)	KUKPO 3000ft EF870 (7mi, 3°) 2000ft PEBER (3mi, 34°) 2000ft EF871 (4mi, 299°) 2000ft
RW31	SIBVA (334°)	SIBVA 2000ft ODGAK (5mi, 119°) 2000ft EF870 (4mi, 119°) 2000ft PEBER (3mi, 34°) 2000ft EF871 (4mi, 299°) 2000ft
RW31	SINPU (297°)	SINPU 7000ft EF869 (7mi, 281°) PEBER (6mi, 299°) 2000ft EF871 (4mi, 299°) 2000ft
	RNAV	EF871 2000ft EF866 (4mi, 299°) 2000ft OMDW (8mi, 308°) 205ft EF868 (2mi, 262°) EF872 (3mi, 214°) SIBVA (8mi, 122°) 2000ft SIBVA (turn) 2000ft

Holding patterns

STAR name	hold at	type	turn	heading*	altitude	leg	speed limit
ELOV3Y	TOVLA	VHF	left	275 (95)°	3000ft - 10000ft	1.0min timed	210
ELOV3Z	TOVLA	VHF	left	275 (95)°	3000ft - 10000ft	1.0min timed	210
GERU3Y	TOVLA	VHF	left	275 (95)°	3000ft - 10000ft	1.0min timed	210
GERU3Z	TOVLA	VHF	left	275 (95)°	3000ft - 10000ft	1.0min timed	210
GIDI5Y	SINPU	VHF	right	88 (268)°	3000ft - 10000ft	1.0min timed	210
GIDI5Z	SINPU	VHF	right	88 (268)°	3000ft - 10000ft	1.0min timed	210
LORI3Y	TOVLA	VHF	left	275 (95)°	3000ft - 10000ft	1.0min timed	210
LORI3Z	TOVLA	VHF	left	275 (95)°	3000ft - 10000ft	1.0min timed	210
UMAM4Y	SINPU	VHF	right	88 (268)°	3000ft - 10000ft	1.0min timed	210
UMAM4Z	SINPU	VHF	right	88 (268)°	3000ft - 10000ft	1.0min timed	210
*) magnetic outbound (inbound) holding course

Actual weather data

METAR OMDW 121900Z 04003KT 020V080 CAVOK 29/14 Q1005 NOSIG

TAF OMDW 121700Z 1218/1400 07005KT CAVOK BECMG 1302/1304 19013KT PROB30 TEMPO 1309/1313 3000 DU BECMG 1309/1311 32013KT BECMG 1316/1318 13007KT

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
