Lahore - Allama Iqbal Intl

Airport details

Country	Pakistan
State	Punjab
Region	OP
Airspace	Lahore Ctr
Municipality	Lahore
Elevation	708ft (216m)
Timezone	GMT +5
Coordinates	31.52156, 74.40457
Magnetic var
Type	land
Available since	X-Plane v10.30
ICAO code	OPLA
IATA code	LHE
FAA code	n/a

Communication

Allama Iqbal Intl ATIS	126.300
Allama Iqbal Intl LAHORE Ground Control	121.800
Allama Iqbal Intl LAHORE Ground Control	118.400
Allama Iqbal Intl LAHORE Tower	118.100
Allama Iqbal Intl LAHORE Approach	121.300
Allama Iqbal Intl LAHORE Approach	125.300
Allama Iqbal Intl LAHORE Departure	133.000

Approach frequencies

ILS-cat-III	RW36R	109.9	18.00mi
ILS-cat-I	RW36L	109.7	18.00mi
3° GS	RW36R	109.9	18.00mi
3° GS	RW36L	109.7	18.00mi

Nearby Points of Interest:

Lahore Fort

Fort and Shalamar Gardens in Lahore

Runway info

Runway 18L / 36R
	length	3363m (11033ft)
	bearing	181° / 1°
	width	46m (151ft)
	surface	concrete
	blast zone	125m (410ft) / 128m (420ft)
Runway 18R / 36L
	length	2746m (9009ft)
	bearing	181° / 1°
	width	46m (151ft)
	surface	asphalt
	blast zone	255m (837ft) / 0m (0ft)

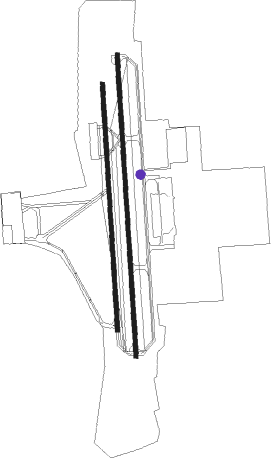

Airport layout - taxiway location S

Taxiway locations

Parking locations

Nearby beacons

code	identifier	dist	bearing	frequency
LA	LAHORE VOR/DME	0.2	244°	112.70
LA	LAHORE NDB	0.4	282°	268
LO	LAHORE NDB	4.6	182°	338
AR	AMRITSAR NDB	22.9	68°	351
AAR	AMRITSAR VOR/DME	23.1	62°	115.50
SP	SHEIKHUPURA NDB	23.3	294°	317
SLT	SIALKOT VOR/DME	59.9	356°	113.80

Departure and arrival routes

Transition altitude

3000ft

Transition level

5000ft

SID end points		distance	outbound heading
RW18 (ALL)
	SULO2E, SULO2G	13mi	137°
	VERE1E, VERE1G	25mi	234°
	MIMA2E	152mi	234°
	BIBU2E	129mi	236°
	LAXE2E, LAXE2G	25mi	260°
	MUKV1G, MUKV1E	25mi	264°
	ADNI2G, ADNI2E	25mi	309°
	AKBE1G, AKBE1E	25mi	317°
	OMUK2G, OMUK2E	25mi	356°
RW36 (ALL)
	SULO2F, SULO2D	13mi	137°
	VERE1D, VERE1F	25mi	234°
	MIMA2D	152mi	234°
	BIBU2D	129mi	236°
	LAXE2D, LAXE2F	25mi	260°
	MUKV1D, MUKV1F	25mi	264°
	ADNI2D, ADNI2F	25mi	309°
	AKBE1F, AKBE1D	25mi	317°
	OMUK2F, OMUK2D	25mi	356°

STAR starting points		distance	inbound heading
RW18 (ALL)
	VERE1C, VERE1A	25.2	54°
	MIMA2B	152.1	54°
	BIBU2B	128.5	56°
	LAXE2A, LAXE2C	25.3	80°
	MUKV1C, MUKV1A	25.2	84°
	ADNI2C, ADNI2A	25.2	129°
	AKBE1C, AKBE1A	25.0	137°
	OMUK2C, OMUK2A	25.0	176°
	SULO2C	13.3	317°
RW36 (ALL)
	VERE1B, VERE1A	25.2	54°
	MIMA1A	152.1	54°
	BIBU1A	128.5	56°
	LAXE2A, LAXE2B	25.3	80°
	MUKV1A, MUKV1B	25.2	84°
	ADNI2A, ADNI2B	25.2	129°
	AKBE1B, AKBE1A	25.0	137°
	OMUK2B, OMUK2A	25.0	176°
	SULO2B	13.3	317°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW18L	BITOL (157°)	BITOL 4000ft LA362 (5mi, 108°) 2700ft
	RNAV	LA362 2700ft LA361 (4mi, 181°) 2700ft OPLA (7mi, 181°) 762ft (4609mi, 247°) 3000ft (turn) 3000ft
RW18R	BITOL (157°)	BITOL 4000ft LA372 (5mi, 108°) 2700ft
	RNAV	LA372 2700ft LA371 (4mi, 181°) 2700ft OPLA (7mi, 180°) 760ft (4609mi, 247°) 3000ft (turn) 3000ft
RW36L	ELAMA (2°)	ELAMA 3000ft
	RNAV	ELAMA 3000ft LA471 (4mi, 1°) 2500ft OPLA (6mi, 2°) 761ft (4609mi, 247°) 3000ft (turn) 3000ft
RW36R	ELAMA (2°)	ELAMA 3000ft
	RNAV	ELAMA 3000ft LA461 (4mi, 3°) 2500ft OPLA (6mi, 1°) 756ft (4609mi, 247°) 3000ft (turn) 3000ft

Holding patterns

STAR name	hold at	type	turn	heading*	altitude	leg	speed limit
ADNI2A	LA	NDB	right	355 (175)°		1.0min timed	ICAO rules
ADNI2B	ELAMA	VHF	left	179 (359)°	3000ft - 7000ft	1.0min timed	220
ADNI2C	BITOL	VHF	right	290 (110)°	> 3000ft	1.0min timed	230
AKBE1A	LA	NDB	right	355 (175)°		1.0min timed	ICAO rules
AKBE1B	ELAMA	VHF	left	179 (359)°	3000ft - 7000ft	1.0min timed	220
AKBE1C	BITOL	VHF	right	290 (110)°	> 3000ft	1.0min timed	230
BIBU1A	ELAMA	VHF	left	179 (359)°	3000ft - 7000ft	1.0min timed	220
BIBU2B	BITOL	VHF	right	290 (110)°	> 3000ft	1.0min timed	230
LAXE2A	LA	NDB	right	355 (175)°		1.0min timed	ICAO rules
LAXE2B	ELAMA	VHF	left	179 (359)°	3000ft - 7000ft	1.0min timed	220
LAXE2C	BITOL	VHF	right	290 (110)°	> 3000ft	1.0min timed	230
MIMA1A	ELAMA	VHF	left	179 (359)°	3000ft - 7000ft	1.0min timed	220
MIMA2B	BITOL	VHF	right	290 (110)°	> 3000ft	1.0min timed	230
MUKV1A	LA	NDB	right	355 (175)°		1.0min timed	ICAO rules
MUKV1B	ELAMA	VHF	left	179 (359)°	3000ft - 7000ft	1.0min timed	220
MUKV1C	BITOL	VHF	right	290 (110)°	> 3000ft	1.0min timed	230
OMUK2A	LA	NDB	right	355 (175)°		1.0min timed	ICAO rules
OMUK2B	ELAMA	VHF	left	179 (359)°	3000ft - 7000ft	1.0min timed	220
OMUK2C	BITOL	VHF	right	290 (110)°	> 3000ft	1.0min timed	230
RABA2A	LA	NDB	right	355 (175)°		1.0min timed	ICAO rules
RABA2B	ELAMA	VHF	left	179 (359)°	3000ft - 7000ft	1.0min timed	220
RABA2C	BITOL	VHF	right	290 (110)°	> 3000ft	1.0min timed	230
SULO2A	LA	NDB	right	355 (175)°		1.0min timed	ICAO rules
SULO2B	ELAMA	VHF	left	179 (359)°	3000ft - 7000ft	1.0min timed	220
SULO2C	BITOL	VHF	right	290 (110)°	> 3000ft	1.0min timed	230
VERE1A	LA	NDB	right	355 (175)°		1.0min timed	ICAO rules
VERE1B	ELAMA	VHF	left	179 (359)°	3000ft - 7000ft	1.0min timed	220
VERE1C	BITOL	VHF	right	290 (110)°	> 3000ft	1.0min timed	230
*) magnetic outbound (inbound) holding course

Actual weather data

METAR OPLA 041155Z 05012KT 6000 SCT040 SCT100 30/21 Q1003 TEMPO 09015G30KT RMK QFE977 A29.62

TAF OPLA 041100Z 0412/0518 05012KT 5000 FU FEW040 SCT100 TX33/0510Z TN22/0500Z PROB30KT TEMPO 0416/0422 05020G35KT 3000 -TSRA FEW030CB SCT040 BKN100 BECMG 0504/0506 13012KT 6000 SCT100

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
