Airports for X-Plane

Doha - Doha Hamad Intl

Airport details

CountryQatar
StateQATAR
RegionOT
AirspaceBahrain Ctr
MunicipalityDoha
Elevation13ft (4m)
TimezoneGMT +3
Coordinates25.27456, 51.60838
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeOTHH
IATA codeDOH
FAA coden/a

Communication

Doha Hamad Intl ATIS126.850
Doha Hamad Intl Clearance DEL118.375
Doha Hamad Intl Ground Control121.675
Doha Hamad Intl Ground Control121.875
Doha Hamad Intl Tower118.525
Doha Hamad Intl Tower118.025

Approach frequencies

ILS-cat-IIIRW34R110.118.00mi
ILS-cat-IIIRW34L111.918.00mi
ILS-cat-IIIRW16L108.718.00mi
ILS-cat-IIIRW16R108.118.00mi
3° GSRW34R110.118.00mi
3° GSRW34L111.918.00mi
3° GSRW16L108.718.00mi
3° GSRW16R108.118.00mi

Runway info

Runway 16L / 34R
 length4864m (15958ft)
 bearing156° / 336°
 width60m (197ft)
 surfaceasphalt
 blast zone255m (837ft) / 255m (837ft)
Runway 16R / 34L
 length4264m (13990ft)
 bearing156° / 336°
 width60m (197ft)
 surfaceasphalt
 blast zone255m (837ft) / 255m (837ft)

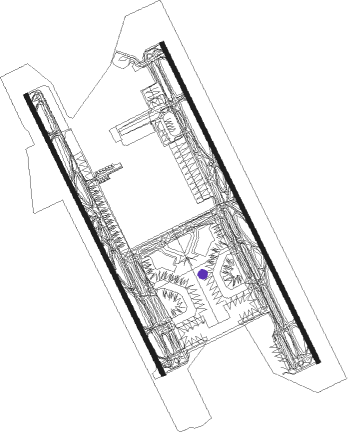

Airport layout - parking location C13


Parking locations

 A1  A10  A11  A3  A4  A5  A6  A7
 A8  A9  B1  B10  B2  B3  B4  B5
 B6  B7  B8  B9  C  C10  C11  C12
 C13  Cargo  D2  D4  E2  E4  G  H
 V

Nearby beacons

codeidentifierdistbearingfrequency
DOHDOHA/HAMAD INTL VOR/DME1.4177°114.40
DIADOHA INTL VOR/DME2.9218°112.40
WKDOHA INTL NDB5.6185°323
ALDAL UDEID VORTAC18.8237°115.20

Departure and arrival routes

Transition altitude13000ft
Transition level15000ft
SID end pointsdistanceoutbound heading
RW16L
 ALVE1M41mi24°
 VAXI1M48mi62°
 ALSE1M61mi81°
 NAML1M53mi101°
 BUND1M51mi107°
 LOXU1M16mi143°
 SALW1M59mi269°
 PATO1M45mi337°
RW16R
 ALVE1C41mi24°
 VAXI1C48mi62°
 ALSE1C61mi81°
 NAML1C53mi101°
 BUND1C51mi107°
 LOXU1C16mi143°
 SALW1C59mi269°
 PATO1C45mi337°
RW34L
 ALVE1W41mi24°
 VAXI1W48mi62°
 ALSE1W61mi81°
 NAML1W53mi101°
 BUND1W51mi107°
 SALW1W59mi269°
 PATO1Z, PATO1W45mi337°
 MUXO1W14mi357°
RW34R
 ALVE1E41mi24°
 VAXI1E48mi62°
 ALSE1E61mi81°
 NAML1E53mi101°
 BUND1E51mi107°
 SALW1E59mi269°
 PATO1E45mi337°
 MUXO1E14mi357°

STAR starting pointsdistanceinbound heading
RW16L
 GINT1P29.189°
 BAYA1P17.0224°
 AFNA1P25.1300°
RW16R
 GINT1F29.189°
 BAYA1F17.0224°
 AFNA1F25.1300°
RW34L
 GINT1L29.189°
 BAYA1L17.0224°
 AFNA1L25.1300°
RW34R
 GINT1R29.189°
 BAYA1R17.0224°
 AFNA1R25.1300°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW16LIVANI (177°)IVANI 5000ft
TOVAN (5mi, 250°) 3000ft
RW16LODBIP (156°)ODBIP 5000ft
TOVAN (5mi, 150°) 3000ft
RW16LTANDO (136°)TANDO 5000ft
TOVAN (6mi, 70°) 3000ft
 RNAVTOVAN 3000ft
HH601 (5mi, 156°) 3000ft
OTHH (10mi, 159°) 63ft
HH602 (2mi, 141°)
GENOT (13mi, 68°) 4000ft
GENOT (turn) 4000ft
RW16RIVANI (177°)IVANI 5000ft
GOLSI (6mi, 250°) 3000ft
RW16RODBIP (156°)ODBIP 5000ft
GOLSI (5mi, 163°) 3000ft
RW16RTANDO (136°)TANDO 5000ft
GOLSI (5mi, 70°) 3000ft
 RNAVGOLSI 3000ft
HH501 (5mi, 156°) 3000ft
OTHH (11mi, 153°) 63ft
HH502 (2mi, 176°)
VEKIS (14mi, 189°)
PURVA (11mi, 76°)
ASLEB (11mi, 33°)
GENOT (7mi, 353°) 2000ft
GENOT (turn) 3000ft
RW34LDANIK (358°)DANIK 5000ft
IMKAT (5mi, 70°) 3000ft
RW34LEMUNA (336°)EMUNA 5000ft
IMKAT (5mi, 330°) 3000ft
RW34LMUXED (316°)MUXED 5000ft
IMKAT (6mi, 250°) 3000ft
 RNAVIMKAT 3000ft
HH801 (5mi, 336°) 3000ft
OTHH (10mi, 340°) 63ft
HH802 (2mi, 319°)
DARTU (5mi, 320°) 2500ft
SIVOT (6mi, 320°) 5000ft
BUBOD (8mi, 74°)
TATSA (10mi, 107°)
GENOT (7mi, 141°) 5000ft
GENOT (turn) 5000ft
RW34RDANIK (358°)DANIK 5000ft
LAGMA (6mi, 70°) 3000ft
RW34REMUNA (336°)EMUNA 5000ft
LAGMA (5mi, 343°) 3000ft
RW34RMUXED (316°)MUXED 5000ft
LAGMA (5mi, 250°) 3000ft
 RNAVLAGMA 3000ft
HH901 (5mi, 336°) 3000ft
OTHH (11mi, 333°) 63ft
HH902 (2mi, 356°)
GOMBO (14mi, 36°)
GENOT (11mi, 146°) 4000ft
GENOT (turn) 4000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AFNA1FAFNANVHFright88 (268)°15000ft - 22000ft1.5min timed240
AFNA1LAFNANVHFright88 (268)°15000ft - 22000ft1.5min timed240
AFNA1PAFNANVHFright88 (268)°15000ft - 22000ft1.5min timed240
AFNA1RAFNANVHFright88 (268)°15000ft - 22000ft1.5min timed240
BAYA1FBAYANVHFleft49 (229)°15000ft - 24000ft1.5min timed240
BAYA1LBAYANVHFleft49 (229)°15000ft - 24000ft1.5min timed240
BAYA1PBAYANVHFleft49 (229)°15000ft - 24000ft1.5min timed240
BAYA1RBAYANVHFleft49 (229)°15000ft - 24000ft1.5min timed240
GINT1FGINTOVHFright267 (87)°15000ft - 21000ft1.5min timed240
GINT1LGINTOVHFright267 (87)°15000ft - 21000ft1.5min timed240
GINT1PGINTOVHFright267 (87)°15000ft - 21000ft1.5min timed240
GINT1RGINTOVHFright267 (87)°15000ft - 21000ft1.5min timed240
*) magnetic outbound (inbound) holding course
