Airports for X-Plane

Taipei - Taipei Taoyuan Intl

Airport details

CountryTaiwan
StateTaiwan
RegionRC
AirspaceTaipei Ctr
MunicipalityTaoyuan City
Elevation104ft (32m)
TimezoneGMT +8
Coordinates25.08028, 121.23222
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeRCTP
IATA codeTPE
FAA coden/a

Communication

Taipei Taoyuan Intl TAIPEI ATIS127.600
Taipei Taoyuan Intl TAIPEI DEL121.800
Taipei Taoyuan Intl TAIPEI Ground Control121.700
Taipei Taoyuan Intl TAIPEI Tower118.700
Taipei Taoyuan Intl TAIPEI Approach119.600
Taipei Taoyuan Intl TAIPEI FOLLOW119.500
Taipei Taoyuan Intl TAIPEI Departure119.700

Approach frequencies

ILS-cat-IIRW23L111.918.00mi
ILS-cat-IIRW05R110.718.00mi
ILS-cat-IIRW05L111.118.00mi
ILS-cat-IIRW23R109.318.00mi
3° GSRW23L111.918.00mi
3° GSRW05R110.718.00mi
3° GSRW05L111.118.00mi
3° GSRW23R109.318.00mi
Nearby Points of Interest:
Sanxia Zaishu Temple
-
Sanxia Arch Bridge
-
Wugu XiYun temple
-
Former British Merchant Warehouse
-
Li Family Abode
-
Chou's Chastity Arch
-
Ren'an Hospital
-
Taiwan New Cultural Movement Memorial Hall
-
Judicial Yuan Building
-
Yen Chia-Kan's Residence
-
Red Building of Taipei Municipal Jianguo High School
-
Former Dadaocheng Substation
-
National Taiwan University Hospital
-
Control Yuan
-
Qidong Street Japanese Houses
-
Jingmei Fusing Temple
-
Hsinchu Jinshan Temple

Runway info

Runway 05R / 23L
 length3803m (12477ft)
 bearing52° / 232°
 width60m (197ft)
 surfaceasphalt
 displ threshold103m (338ft) / 350m (1148ft)
 blast zone126m (413ft) / 120m (394ft)
Runway 05L / 23R
 length3663m (12018ft)
 bearing52° / 232°
 width60m (197ft)
 surfaceasphalt
 blast zone125m (410ft) / 123m (404ft)

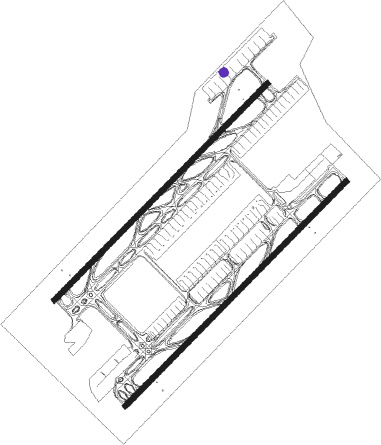

Airport layout - parking location 519


Taxiway locations

 EC  L  L1  L2  N1  N10  N11  N2
 N4  N5  N6  N7  N8  N9  NC  NN
 NP  Q  Q1  Q2  Q3  Q4  Q5  Q6
 Q7  R  R1  R2  R3  S  S1  S10
 S2  S3  S4  S5  S6  S7  S8  S9
 W1  W2  WC
Parking locations

 501  502  503  504  505  506  507  508
 509  510  511  512  513  514  515  516
 517  518  519  520  521  522  523  524
 525  601  602  603  604  605  606  607
 608  609  610  611  612  613  614  615
 801  802  803  804  805  806  807  808
 A1  A2  A3  A4  A5  A6  A7  A8
 A9  B1  B2  B3  B4  B5  B6  B7
 B8  B9  C1  C10  C2  C3  C4  C5
 C6  C7  C8  C9  D1  D10  D2  D3
 D4  D5  D6  D7  D8  D9

Nearby beacons

codeidentifierdistbearingfrequency
TYNTAOYUAN TACAN1.2145°115.80
RALUNGTANG NDB13.1174°202
SGSONGSHAN (TAIPEI) NDB16.192°310
APANBU NDB16.772°250
APUANBU (TAIPEI) VOR/DME16.872°112.50
TSISONGSHAN (TAIPEI) VOR/DME18.192°113.50
HSUHSINCHU TACAN22.3229°116.30
LUKEELUNG NDB31.184°357
HLHOULONG NDB41.3224°362
HLGHOULONG VOR/DME41.6224°114
WKHSINSHIE NDB55.5206°340
CCKCINGCYUANGANG TACAN59.4217°111.30
TCCINGCYUANGANG (TAICHUNG) NDB59.8217°210
TCK(TAICHUNG) DME59.8217°108.40

Departure and arrival routes

Transition altitude11000ft
SID end pointsdistanceoutbound heading
RW05L
 PIAN1C54mi39°
 MOLK1C177mi60°
 ROBI1C57mi71°
 KUDO1C41mi86°
 TINH1C62mi132°
 CHAL1C45mi244°
RW05R
 PIAN1A54mi39°
 MOLK1A177mi60°
 ROBI1A57mi71°
 KUDO1A41mi86°
 TINH1A62mi132°
 CHAL1A45mi244°
RW23L
 PIAN1B54mi39°
 MOLK1B177mi60°
 ROBI1B57mi71°
 KUDO1B41mi86°
 TINH1B62mi132°
 CHAL1B45mi244°
RW23R
 PIAN1D54mi39°
 MOLK1D177mi60°
 ROBI1D57mi71°
 KUDO1D41mi86°
 TINH1D62mi132°
 CHAL1D45mi244°

STAR starting pointsdistanceinbound heading
RW05 (ALL)
 TNN1A129.628°
 TONG1A145.441°
 BAKE1A48.7229°
 DRAK1A56.0238°
 GRAC1A57.5269°
RW23 (ALL)
 TNN1B129.628°
 TONG1B145.441°
 BAKE1B48.7229°
 DRAK1B56.0238°
 GRAC1B57.5269°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW05LJAMMY (67°)JAMMY 4000ft
TP052 (8mi, 99°) 4000ft
TP051 (5mi, 52°) 3000ft
RW05LTP053 (52°)TP053 4000ft
TP052 (5mi, 52°) 4000ft
TP051 (5mi, 52°) 3000ft
 RNAVTP051 3000ft
BAGEL (7mi, 52°) 1400ft
RCTP (5mi, 55°) 124ft
(7087mi, 258°) 800ft
MARCH (7075mi, 78°) 4000ft
MARCH (turn) 4000ft
RW05RJAMMY (67°)JAMMY 4000ft
TP062 (8mi, 102°) 4000ft
TP061 (5mi, 52°) 3000ft
RW05RTP063 (50°)TP063 4000ft
TP062 (5mi, 52°) 4000ft
TP061 (5mi, 52°) 3000ft
 RNAVTP061 3000ft
YUPPY (7mi, 52°) 1500ft
RCTP (5mi, 45°) 157ft
TP065 (9mi, 55°)
MARCH (22mi, 249°) 4000ft
MARCH (turn) 4000ft
RW23LAUGUR (216°)AUGUR 4500ft
TP242 (9mi, 177°) 4500ft
TP241 (5mi, 232°) 3100ft
RW23LTP243 (233°)TP243 4500ft
TP242 (5mi, 232°) 4500ft
TP241 (5mi, 232°) 3100ft
 RNAVTP241 3100ft
SHAFU (6mi, 232°) 1900ft
RCTP (6mi, 237°) 146ft
TP246 (9mi, 228°)
JUNTA (22mi, 34°) 4000ft
JUNTA (turn) 4000ft
RW23RAUGUR (216°)AUGUR 4500ft
TP232 (8mi, 179°) 4500ft
TP231 (5mi, 232°) 3100ft
RW23RTP233 (231°)TP233 4500ft
TP232 (5mi, 232°) 4500ft
TP231 (5mi, 232°) 3100ft
 RNAVTP231 3100ft
TINFU (6mi, 232°) 1700ft
RCTP (6mi, 230°) 113ft
(7087mi, 258°) 800ft
JUNTA (7089mi, 78°) 4000ft
JUNTA (turn) 4000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BAKE1AAUGURVHFright38 (218)°> 5000ftDME 5.0mi210
BAKE1AJAMMYVHFleft248 (68)°> 4000ftDME 5.0miICAO rules
BAKE1AMARCHVHFright54 (234)°4000ft - 60000ftDME 5.0miICAO rules
BAKE1ASEPIAVHFright54 (234)°5000ft - 60000ftDME 5.0miICAO rules
BAKE1BAUGURVHFright38 (218)°> 5000ftDME 5.0mi210
BAKE1BSEPIAVHFright54 (234)°5000ft - 60000ftDME 5.0miICAO rules
DRAK1AAUGURVHFright38 (218)°> 5000ftDME 5.0mi210
DRAK1AJAMMYVHFleft248 (68)°> 4000ftDME 5.0miICAO rules
DRAK1AMARCHVHFright54 (234)°4000ft - 60000ftDME 5.0miICAO rules
DRAK1ASEPIAVHFright54 (234)°5000ft - 60000ftDME 5.0miICAO rules
DRAK1BAUGURVHFright38 (218)°> 5000ftDME 5.0mi210
DRAK1BSEPIAVHFright54 (234)°5000ft - 60000ftDME 5.0miICAO rules
GRAC1AAUGURVHFright38 (218)°> 5000ftDME 5.0mi210
GRAC1AJAMMYVHFleft248 (68)°> 4000ftDME 5.0miICAO rules
GRAC1AMARCHVHFright54 (234)°4000ft - 60000ftDME 5.0miICAO rules
GRAC1ASEPIAVHFright54 (234)°5000ft - 60000ftDME 5.0miICAO rules
GRAC1BAUGURVHFright38 (218)°> 5000ftDME 5.0mi210
GRAC1BSEPIAVHFright54 (234)°5000ft - 60000ftDME 5.0miICAO rules
TNN1ABRAVOVHFleft226 (46)°5000ft - 60000ftDME 5.0miICAO rules
TNN1AJAMMYVHFleft248 (68)°> 4000ftDME 5.0miICAO rules
TNN1AMEICHVHFright202 (22)°5000ft - 60000ftDME 8.0miICAO rules
TNN1ATNNNDBright2 (182)°> 5000ft1.0min timedICAO rules
TNN1BAUGURVHFright38 (218)°> 5000ftDME 5.0mi210
TNN1BBRAVOVHFleft226 (46)°5000ft - 60000ftDME 5.0miICAO rules
TNN1BJAMMYVHFleft248 (68)°> 4000ftDME 5.0miICAO rules
TNN1BJUNTAVHFleft234 (54)°4000ft - 60000ftDME 5.0miICAO rules
TNN1BMEICHVHFright202 (22)°5000ft - 60000ftDME 8.0miICAO rules
TNN1BTNNNDBright2 (182)°> 5000ft1.0min timedICAO rules
TONG1ABRAVOVHFleft226 (46)°5000ft - 60000ftDME 5.0miICAO rules
TONG1AELBERVHFright217 (37)°5000ft - 60000ftDME 8.0miICAO rules
TONG1AJAMMYVHFleft248 (68)°> 4000ftDME 5.0miICAO rules
TONG1ATONGAVHFleft214 (34)°> 27000ftDME 8.0miICAO rules
TONG1BAUGURVHFright38 (218)°> 5000ftDME 5.0mi210
TONG1BBRAVOVHFleft226 (46)°5000ft - 60000ftDME 5.0miICAO rules
TONG1BELBERVHFright217 (37)°5000ft - 60000ftDME 8.0miICAO rules
TONG1BJAMMYVHFleft248 (68)°> 4000ftDME 5.0miICAO rules
TONG1BJUNTAVHFleft234 (54)°4000ft - 60000ftDME 5.0miICAO rules
TONG1BTONGAVHFleft214 (34)°> 27000ftDME 8.0miICAO rules
*) magnetic outbound (inbound) holding course
