Airports for X-Plane

Nagasaki

Airport details

CountryJapan
StateNagasaki Prefecture
RegionRJ
AirspaceFukuoka Ctr
MunicipalityOmura
Elevation15ft (5m)
TimezoneGMT +9
Coordinates32.93600, 129.92935
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeRJFU
IATA codeNGS
FAA coden/a

Communication

Nagasaki ATIS126.850
Nagasaki Ground Control121.600
Nagasaki Tower122.700
Nagasaki Tower126.200
Nagasaki Tower118.500
Nagasaki Approach119.175
Nagasaki Approach121.025
Nagasaki Departure121.000

Approach frequencies

ILS-cat-IRW32110.918.00mi
3° GSRW32110.918.00mi
Nearby Points of Interest:
Nagasaki
-
Narutaki-juku
-
Nagasaki Kunchi
-
Dejima
-
Former British Consulate, Nagasaki
-
Former Latin Divinity School, Nagasaki
-
Shitsu Church
-
Ōno Village
-
Kosuge Slip Dock
-
Ōno Church
-
Takashima Coal Mine
-
Hara Castle
-
Port of Miike
-
Takashima Kouzaki Site
-
Nijinomatsubara
-
Kurokoshima
-
Saiwai Bridge
-
Yoshinogari site
-
Mount Yasuman
-
Karatsu Bay
-
Eta Funayama Kofun

Runway info

Runway 14 / 32
 length3000m (9843ft)
 bearing133° / 313°
 width61m (200ft)
 surfaceasphalt
 blast zone61m (200ft) / 61m (200ft)
Runway 18 / 36
 length1202m (3944ft)
 bearing174° / 354°
 width30m (98ft)
 surfaceasphalt

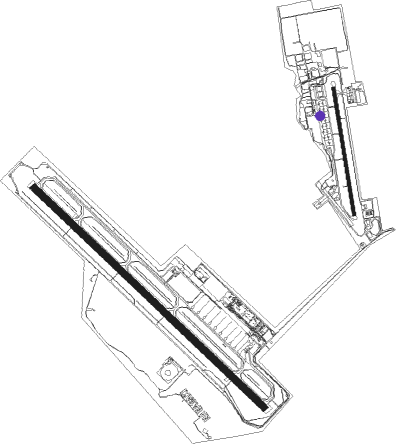

Airport layout - parking location A5


Taxiway locations

 P2  P3  T1  T2  T3  T4  T5  T6
Parking locations

 A1  A10  A11  A12  A13  A14  A15  A2
 A3  A4  A5  A6  A7  A8  A9  Gate
 H1  Ramp

Nearby beacons

codeidentifierdistbearingfrequency
JBTOMURA TACAN0.6164°114.05
MNEMINOSHIMA VOR/DME1.1216°116.30
OLENAGASAKI VOR/DME1.9200°116.60
SGESAGA VOR/DME22.360°114.75
AKEAMAKUSA VOR/DME29.7153°113.45
KUEKUMAMOTO VOR/DME46.496°112.80
IKEIKI (IKISHIMA) VOR/DME49.3349°113.20
DGCFUKUOKA VORTAC5032°114.50
AHTASHIYA TACAN67.537°108.60

Departure and arrival routes

Transition altitude14000ft
Transition level14000ft
SID end pointsdistanceoutbound heading
RW14
 CHIKU4160mi73°
 SOUTH749mi137°
 NORTH949mi349°
RW32
 CHIKU4160mi73°
 SOUTH749mi137°
 NORTH949mi349°

STAR starting pointsdistanceinbound heading
ALL
 FUBUKI, SARUKU26.8212°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW14IORIE (128°)IORIE 3000ft
TENBO (5mi, 133°) 2400ft
RW14KOHNO (104°)KOHNO 3000ft
TENBO (5mi, 53°) 2400ft
RW14SARUK (155°)SARUK 3700ft
TENBO (5mi, 233°) 2400ft
 RNAVTENBO 2400ft
OMRAN (4mi, 133°) 1600ft
RJFU (5mi, 119°) 64ft
ETARI (13mi, 139°)
KOHNO (23mi, 302°) 3000ft
KOHNO (turn) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
FUBUKITAKAKVHFright10 (190)°5000ft - 14000ft1.0min timed210
*) magnetic outbound (inbound) holding course
