Airports for X-Plane

Busan - Gimhae

Airport details

CountrySouth Korea
StateBusan Gwang'yeogsi
RegionRK
AirspaceIncheon Ctr
MunicipalityBusan
Elevation13ft (4m)
TimezoneGMT +9
Coordinates35.18056, 128.93805
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeRKPK
IATA codePUS
FAA coden/a

Communication

Gimhae ATIS126.600
Gimhae DLVRY121.725
Gimhae Ground Control121.900
Gimhae Tower118.450
Gimhae Tower118.100
Gimhae ARR119.200
Gimhae ARR134.400
Gimhae Approach125.500
Gimhae Departure125.500

Approach frequencies

ILS-cat-IIRW36L108.518.00mi
ILS-cat-IRW36R109.518.00mi
3° GSRW36R109.518.00mi
3° GSRW36L108.518.00mi

Runway info

Runway 18R / 36L
 length3203m (10509ft)
 bearing173° / 353°
 width60m (197ft)
 surfaceconcrete
 displ threshold600m (1969ft) / 0m (0ft)
 blast zone255m (837ft) / 255m (837ft)
Runway 18L / 36R
 length2746m (9009ft)
 bearing173° / 353°
 width46m (151ft)
 surfaceconcrete
 blast zone255m (837ft) / 255m (837ft)

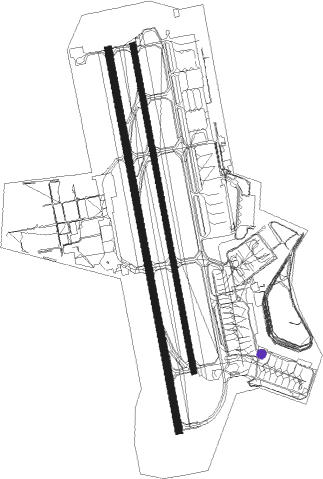

Airport layout - parking location 12


Taxiway locations

 C1  C2  C3  C4  C5  C6  C7  E1
 E2  E3  E4  E5  G2  G3  G4  G5
 G6  G7  G8  G9  P  S  S2  W1
 W2  W3
Parking locations

 1  10  11  12  19  20  21  22
 23  24  25  26  27  28  29  31
 32  34  36  37  38  4  41  42
 43  44  45  46  47  48  5  51
 51L  51R  52  53  53L  53R  54  54L
 54R  55  55L  55R  57  58  58L  58R
 8  9  931  932  933  Military  New  West

Nearby beacons

codeidentifierdistbearingfrequency
KHEKIMHAE (BUSAN) TACAN0.589°117
KMHGIMHAE VOR/DME1.1353°113.80
PSNBUSAN VORTAC4.6133°114
USULSAN NDB31.246°335
USNULSAN VOR/DME32.345°111.40
TGUDALSEONG VORTAC41.4331°112.20
SCNSACHEON TACAN42.5265°110
SACSACHEON (CHINJU) VOR/DME42.6265°115.10
DOCDONGCHON VOR/DME45.7338°116.50
NPHNAVY (POHANG) VORTAC53.530°109.60
KPOPOHANG VORTAC54.534°112.50
VCETSUSHIMA VOR/DME57.4156°111.45

Departure and arrival routes

Transition altitude14000ft
Transition level14000ft
SID end pointsdistanceoutbound heading
RW18 (ALL)
 BAHDA1, ULSUK333mi227°
RW18L
 BURIM233mi227°
RW18R
 BURIM233mi227°
RW36 (ALL)
 ATLAX213mi37°
 BEVSI3, OPONO2, SOORO133mi227°

STAR starting pointsdistanceinbound heading
RW18 (ALL)
 GAYHA215.298°
RW36 (ALL)
 KEVOX214.251°
 PEDLO115.0314°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW36LKEVOX (51°)KEVOX 6000ft
PK711 (6mi, 114°) 5000ft
AKEVI (6mi, 85°) 3300ft
RW36LPEDLO (314°)PEDLO 7000ft
AKEVI (9mi, 265°) 3300ft
 RNAVAKEVI 3300ft
OLMOG (5mi, 353°) 2100ft
PK722 (3mi, 353°) 1200ft
IKESI (3mi, 353°) 382ft
PK723 (3mi, 353°)
OPONO (12mi, 298°) 6000ft
GAYHA (7mi, 229°)
KEVOX (13mi, 155°) 6000ft
KEVOX (turn) 10000ft
RW36RKEVOX (51°)KEVOX 6000ft
PK711 (6mi, 114°) 5000ft
BOSPI (6mi, 85°) 3300ft
RW36RPEDLO (314°)PEDLO 7000ft
BOSPI (9mi, 265°) 3300ft
 RNAVBOSPI 3300ft
NEIAN (5mi, 353°) 2100ft
PK712 (3mi, 353°) 1200ft
IDIVU (2mi, 353°) 471ft
PK713 (3mi, 353°)
OPONO (12mi, 298°) 6000ft
GAYHA (7mi, 229°) 6000ft
KEVOX (13mi, 155°) 6000ft
KEVOX (turn) 10000ft
RWNVBGAYHA (98°)GAYHA 6000ft
OVTUS (7mi, 171°) 5000ft
NOORI (8mi, 122°) 4000ft
PK731 (3mi, 43°) 3500ft
 RNAVPK731 3500ft
WAYBI (3mi, 43°) 2600ft
ZIKKO (4mi, 43°) 1700ft
PK733 (10mi, 43°) 3500ft
PK734 (11mi, 302°) 6000ft
GAYHA (15mi, 229°) 6000ft
GAYHA (turn) 10000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
GAYHA2GAYHAVHFright90 (270)°6000ft - 10000ft1.0min timed210
KEVOX2KEVOXVHFright230 (50)°6000ft - 10000ftDME 5.0mi230
PEDLO1PEDLOVHFright92 (272)°7000ft - 10000ftDME 5.0mi230
*) magnetic outbound (inbound) holding course
