Airports for X-Plane

Kalibo

Airport details

CountryPhilippines
StateAklan
RegionRP
AirspaceManila Ctr
MunicipalityKalibo
Elevation14ft (4m)
TimezoneGMT +8
Coordinates11.68036, 122.37647
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeRPVK
IATA codeKLO
FAA coden/a

Communication

Kalibo CTAF121.900
Kalibo Tower124.200
Nearby Points of Interest:
Panay Church

Runway info

Runway 05 / 23
 length2514m (8248ft)
 bearing49° / 229°
 width45m (148ft)
 surfaceasphalt
 blast zone52m (171ft) / 0m (0ft)

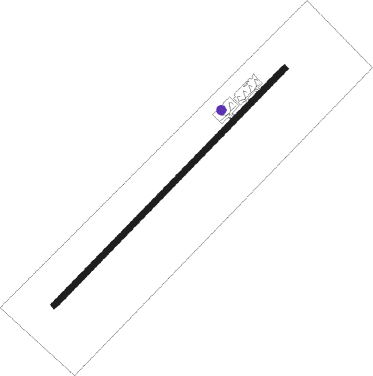

Airport layout - parking location A


Parking locations

 A  C  D  E

Nearby beacons

codeidentifierdistbearingfrequency
KLKALIBO NDB0.448°298
KLOKALIBO VOR/DME0.465°113
RXTROXAS TACAN22.4102°113.30
ROXROXAS VOR/DME22.8102°112.90
CATDME28.6300°113.40
CTCATICLAN NDB28.6300°379
IOOILOILO VOR/DME51.2172°116.30
BCDBACOLOD VOR/DME66.2145°115.30

Departure and arrival routes

Transition altitude11000ft
Transition level13000ft
SID end pointsdistanceoutbound heading
RW05
 SAGR2P43mi14°
 ROX3A23mi102°
 BUNG2P37mi123°
 GALI2P, GALI3G28mi144°
 BUSO3C30mi172°
 TAPE3A52mi321°
 MINO3C, MINO2P42mi348°
RW23
 SAGR4R, SAGR2R43mi14°
 ROX3B23mi102°
 BUNG2R37mi123°
 GALI2R, GALI3H28mi144°
 BUSO3D30mi172°
 TAPE3B52mi321°
 MINO4R, MINO3D, MINO2R42mi348°

STAR starting pointsdistanceinbound heading
RW05
 TAPE1A52.2141°
 ATRI1B40.2298°
 GALI1A28.0324°
 BUSO1A29.5352°
RW23
 TAPE1R52.2141°
 ATRI1R40.2298°
 NASA1R, NASA3R34.9308°
 BUSO1R29.5352°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW05-XVK500 (225°)VK500 8000ft
VK501 (10mi, 212°) 5000ft
VK612 (3mi, 206°)
VK613 (9mi, 206°)
VK615 (5mi, 257°) 2800ft
VK616 (4mi, 344°) 2800ft
RW05-XVK600 (351°)VK600 5500ft
VK504 (8mi, 291°)
VK615 (3mi, 341°) 2800ft
VK616 (4mi, 344°) 2800ft
 RNAVVK616 2800ft
VK618 (3mi, 34°) 2400ft
RPVK (7mi, 49°) 82ft
(7305mi, 265°) 800ft
VK500 (7312mi, 84°) 4000ft
VK500 (turn) 4000ft
RW05-YVK600 (351°)VK600 5500ft
VK504 (8mi, 291°)
VK506 (5mi, 347°) 2600ft
 RNAVVK506 2600ft
VK507 (3mi, 4°) 2100ft
VK508 (2mi, 27°) 2100ft
RPVK (7mi, 49°) 82ft
(7305mi, 265°) 800ft
VK500 (7312mi, 84°) 4000ft
VK500 (turn) 4000ft
RW05-ZVK500 (225°)VK500 8000ft
VK501 (10mi, 212°) 5000ft
VK502 (3mi, 212°)
VK503 (7mi, 212°) 2100ft
 RNAVVK503 2100ft
VK507 (5mi, 287°) 2100ft
VK508 (2mi, 27°) 2100ft
RPVK (7mi, 49°) 82ft
(7305mi, 265°) 800ft
VK500 (7312mi, 84°) 4000ft
VK500 (turn) 4000ft
RW23BARRY (194°)BARRY 4000ft
VK23A (8mi, 139°) 2400ft
RW23BIBIT (263°)BIBIT 4000ft
VK23A (7mi, 318°) 2400ft
 RNAVVK23A 2400ft
VK23B (5mi, 229°) 1900ft
RPVK (6mi, 229°) 68ft
(7305mi, 265°) 1000ft
BIBIT (7317mi, 85°) 4000ft
BIBIT (turn) 4000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ATRI1BVK600VHFright102 (282)°5500ft - 10000ft1.0min timed230
ATRI1RBIBITVHFleft140 (320)°4000ft - 11000ft1.0min timed230
BUSO1AVK600VHFright102 (282)°5500ft - 10000ft1.0min timed230
BUSO1RBIBITVHFleft140 (320)°4000ft - 11000ft1.0min timed230
GALI1AVK600VHFright102 (282)°5500ft - 10000ft1.0min timed230
NASA1RBIBITVHFleft140 (320)°4000ft - 11000ft1.0min timed230
NASA3RBIBITVHFleft140 (320)°4000ft - 11000ft1.0min timed230
TAPE1AVK500VHFright32 (212)°4000ft - 14000ft1.0min timed230
TAPE1RBARRYVHFright320 (140)°4000ft - 11000ft1.0min timed230
*) magnetic outbound (inbound) holding course
