Airports for X-Plane

Curitiba - Afonso Pena

Airport details

CountryBrazil
StateParaná
RegionSB
AirspaceCuritiba Ctr
MunicipalitySão José dos Pinhais
Elevation2984ft (910m)
TimezoneGMT -3
Coordinates-25.53167, -49.17611
Magnetic var
Typeland
Available sinceX-Plane v10.30
ICAO codeSBCT
IATA codeCWB
FAA coden/a

Communication

Afonso Pena ATIS127.800
Afonso Pena Ground Control121.900
Afonso Pena CURITIBA Tower118.550
Afonso Pena CURITIBA Approach129.550
Afonso Pena CURITIBA Approach119.950
Afonso Pena CURITIBA Approach120.650

Approach frequencies

ILS-cat-IIRW15109.318.00mi
ILS-cat-IRW33110.318.00mi
3° GSRW15109.318.00mi
3° GSRW33110.318.00mi
Nearby Points of Interest:
Jockey Club do Paraná
-
Casa Emílio Romani
-
Palácio da Liberdade (Curitiba)
-
Paço da Liberdade
-
Paraná Public Library
-
Casa Barão do Serro Azul
-
Antigo Palácio Wolff
-
Palácio Garibaldi
-
Graciosa State Park
-
Antigo Engenho de Mate da Rondinha
-
Ponte do Rio dos Papagaios
-
Sede da Fazenda Cancela
-
Casa Elfrida Lobo

Runway info

Runway 15 / 33
 length2222m (7290ft)
 bearing132° / 312°
 width45m (148ft)
 surfaceasphalt
 blast zone70m (230ft) / 66m (217ft)
Runway 11 / 29
 length1800m (5906ft)
 bearing91° / 271°
 width45m (148ft)
 surfaceasphalt

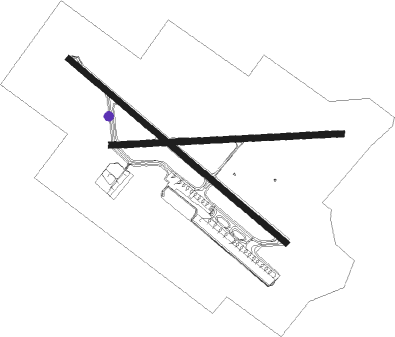

Airport layout - taxiway location C


Taxiway locations

 A  B  C  D  E  F  G  H
 M  N
Parking locations

 Gate

Nearby beacons

codeidentifierdistbearingfrequency
CTBCURITIBA VOR/DME0.492°116.50
BCHBACACHERI NDB8.2338°300
LAADME35247°117.70
PGADME3591°114.10
JNVJOINVILLE VOR/DME46.2151°115.10
PGRGROSSA NDB56.6290°275

Departure and arrival routes

Transition altitude6000ft
SID end pointsdistanceoutbound heading
RW15
 ANRE1A45mi18°
 SUPL1A27mi131°
 DAGI1A47mi208°
 RORI1A100mi302°
RW33
 OPMU1B45mi18°
 DAGI1B47mi208°
 GEGI1B40mi290°

STAR starting pointsdistanceinbound heading
RW15
 MUDA2A58.465°
 MATK2A55.0159°
 RAXI1A104.8233°
 ISNI2A69.8343°
RW33
 MUDA1B58.465°
 MATK1B55.0159°
 RAXI1B104.8233°
 ISNI1B69.8343°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW11CT029 (70°)CT029 7000ft
CT031 (6mi, 24°) 5500ft
RW11CT042 (92°)CT042 7000ft
CT031 (6mi, 92°) 5500ft
RW11CT093 (115°)CT093 7000ft
CT031 (6mi, 160°) 5500ft
 RNAVCT031 5500ft
CT032 (5mi, 92°) 4620ft
SBCT (5mi, 94°) 3024ft
(3234mi, 63°) 4000ft
DUBRI (3225mi, 242°) 7000ft
DUBRI (turn) 7000ft
RW15-ZDODRA (104°)DODRA 7000ft
TEDUG (6mi, 47°) 5500ft
RW15-ZSIBUM (132°)SIBUM 7000ft
TEDUG (6mi, 132°) 5500ft
RW15-ZSOVTA (163°)SOVTA 7000ft
TEDUG (6mi, 227°) 5500ft
 RNAVTEDUG 5500ft
PULAR (5mi, 132°) 4620ft
SBCT (6mi, 133°) 3022ft
(3234mi, 63°) 3400ft
CT053 (3229mi, 242°)
TEKES (22mi, 76°) 6000ft
TEKES (turn) 6000ft
RW29CT094 (271°)CT094 7200ft
CT056 (6mi, 272°) 5800ft
RW29CT096 (293°)CT096 7200ft
CT056 (6mi, 340°) 5800ft
RW29CT097 (249°)CT097 7200ft
CT098 (3mi, 204°) 6500ft
CT056 (3mi, 204°) 5800ft
 RNAVCT056 5800ft
CT099 (2mi, 272°) 5500ft
CT057 (3mi, 272°) 4620ft
SBCT (6mi, 270°) 3014ft
(3234mi, 63°) 4500ft
BACOR (3246mi, 243°) 7200ft
BACOR (turn) 7200ft
RW33-ZALGUD (342°)ALGUD 7000ft
OPVIS (6mi, 47°) 5500ft
RW33-ZEDSUR (283°)EDSUR 7000ft
OPVIS (6mi, 227°) 5500ft
 RNAVOPVIS 5500ft
CT059 (3mi, 312°) 4900ft
BUVBA (2mi, 312°) 4620ft
SBCT (6mi, 310°) 3037ft
(3234mi, 63°) 3800ft
VUPAB (3247mi, 243°) 6000ft
VUPAB (turn) 6000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
MATK1BCT072VHFleft14 (194)°1.0min timedICAO rules
MATK2ACT072VHFleft14 (194)°1.0min timedICAO rules
MUDA1BGERKAVHFleft252 (72)°1.0min timedICAO rules
RAXI1AUREBAVHFright83 (263)°1.0min timedICAO rules
RAXI1BISREMVHFleft83 (263)°1.0min timedICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
