Airports for X-Plane

Rio De Janeiro - Santos-dumont

Airport details

CountryBrazil
StateRio de Janeiro
RegionSB
AirspaceCuritiba Ctr
Elevation11ft (3m)
TimezoneGMT -3
Coordinates-22.91000, -43.16250
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSBRJ
IATA codeSDU
FAA coden/a

Communication

Santos-Dumont ATIS132.650
Santos-Dumont CLRD RIO121.050
Santos-Dumont RIO Ground Control121.700
Santos-Dumont RIO Tower118.700
Santos-Dumont Approach RIO119.725
Santos-Dumont RIO Tower dep118.700
Nearby Points of Interest:
Fort of Santiago
-
Ladeira da Misericórdia
-
Brazilian Academy of Letters
-
Museu da Imagem e do Som do Rio de Janeiro
-
Gustavo Capanema Palace
-
Monumento a Marechal Deodoro da Fonseca
-
Municipal Chamber of Rio de Janeiro
-
Clube Naval
-
Automóvel Clube do Brasil
-
Avenida Rio Branco
-
Fortaleza de São José da Ilha das Cobras
-
Casa Cavé
-
Santa Teresa Tram
-
Rua do Catete
-
Palácio Episcopal (Rio de Janeiro)
-
Fortaleza de Nossa Senhora da Conceição
-
Pedra do Sal
-
Palace of Itamaraty
-
Palácio Duque de Caxias
-
Reservatório do Morro da Viúva
-
Fortaleza de São João
-
Guanabara Palace
-
Museu Antônio Parreiras
-
Palácio do Ingá
-
Palacete Modesto Leal

Runway info

Runway 02R / 20L
 length1327m (4354ft)
 bearing356° / 176°
 width42m (138ft)
 surfaceasphalt
 blast zone18m (59ft) / 22m (72ft)
Runway 02L / 20R
 length1250m (4101ft)
 bearing356° / 176°
 width30m (98ft)
 surfaceasphalt
 blast zone27m (89ft) / 9m (30ft)

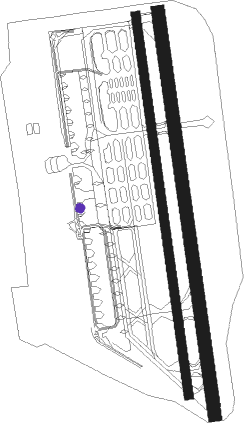

Airport layout - parking location R10


Taxiway locations

 A  B  C  D  J
Parking locations

 Gate  GEIV1  GEIV2  GEIV3  GEIV4  R10  R11  R13
 R14  R15  R16  R17  R18  R19  R20  Ramp

Nearby beacons

codeidentifierdistbearingfrequency
PPPAIOL (RIO DE JANEIRO) NDB2.4356°415
YLAILHA (RIO DE JANEIRO) NDB7.3358°330
CXIGALEAO (RIO DE JANEIRO) VOR/DME7.7314°112.30
IHRASA (RIO DE JANEIRO TMA) NDB9.2174°315
CAXCAXIAS (RIO DE JANEIRO) NDB13310°400
MIAMARICA VOR/DME15.4102°114.80
PCXPORTO (RIO DE JANEIRO TMA VOR/DME20.557°114.60
NOANOVA (RIO DE JANEIRO TMA) NDB21301°215
SCRSANTA CRUZ (RIO) VOR/DME31.3266°113.60
PAIPIRAI VOR/DME46.4304°115

Departure and arrival routes

Transition altitude7000ft
SID end pointsdistanceoutbound heading
RW02R
 PUMS4B47mi16°
 PUMS3A127mi38°
 EVSO2B84mi265°
 EVKO3A, EVKO1F59mi278°
RW20L
 PUMS3D47mi16°
 PUMS2C127mi38°
 EVSO1D84mi265°
 EVKO1C, EVKO1F59mi278°

STAR starting pointsdistanceinbound heading
RW02 (ALL)
 MAKT2A29.44°
 SINA1A59.2265°
RW02R
 ROPA1A84.047°
 ASAL1A, ASAL1B26.179°
RW20 (ALL)
 MAKT1B111.452°
 ASAL1C26.179°
 SINA1B84.3248°
RW20L
 ROPA1A84.047°
 ASAL1A26.179°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW02RCMOVGI (357°)MOVGI 4000ft
RJ222 (7mi, 20°) 3500ft
RW02RCPOPSU (332°)POPSU 5500ft
RJ222 (9mi, 318°) 3500ft
 RNAVRJ222 3500ft
RJ221 (6mi, 349°) 1840ft
RJ501 (3mi, 350°) 950ft
RJ223 (turn) 950ft
(2869mi, 62°) 1100ft
GL139 (2863mi, 242°) 2000ft
RJ042 (5mi, 71°) 3000ft
EVRIR (14mi, 143°) 5500ft
EVRIR (turn) 5500ft
RW02RTMOVGI (357°)MOVGI 4000ft
RJ222 (7mi, 20°) 2000ft
RW02RTPOPSU (332°)POPSU 5500ft
RJ222 (9mi, 318°) 2000ft
 RNAVRJ222 2000ft
RJ706 (6mi, 351°) 1546ft
RJ704 (1mi, 351°) 1131ft
RJ807 (turn) 857ft
RJ702 (turn) 593ft
RJ701 (turn) 326ft
SBRJ (1mi, 357°) 44ft
RJ901 (turn) 500ft
RJ008 (turn)
RJ902 (4mi, 73°) 2000ft
EVRIR (19mi, 120°) 5500ft
EVRIR (turn) 5500ft
RW02RVMOVGI (357°)MOVGI 4000ft
RJ222 (7mi, 20°) 3500ft
RW02RVPOPSU (332°)POPSU 5500ft
RJ222 (9mi, 318°) 3500ft
 RNAVRJ222 3500ft
RJ221 (6mi, 349°) 1840ft
RJ501 (3mi, 350°) 950ft
RJ223 (turn) 950ft
YLA (9mi, 349°) 3000ft
SEDBU (9mi, 37°) 3000ft
GL882 (12mi, 132°) 3000ft
PUMSO (7mi, 132°) 4000ft
PUMSO (turn)
RW02RWGELUT (84°)GELUT 6000ft
RJ931 (5mi, 67°) 4800ft
RJ031 (5mi, 67°) 3500ft
RJ032 (5mi, 92°) 2700ft
 RNAVRJ032 2700ft
RJ801 (3mi, 110°) 1850ft
RJ802 (turn) 1537ft
RJ803 (1mi, 158°) 1162ft
RJ804 (2mi, 87°) 305ft
SBRJ (1mi, 357°) 44ft
RJ901 (turn) 500ft
RJ902 (4mi, 61°) 2000ft
EVRIR (19mi, 120°) 5500ft
EVRIR (turn) 5500ft
RW02RXMOVGI (357°)MOVGI 4000ft
RJ222 (7mi, 20°) 2000ft
RW02RXPOPSU (332°)POPSU 5500ft
RJ222 (9mi, 318°) 2000ft
 RNAVRJ222 2000ft
RJ809 (6mi, 351°) 1551ft
RJ808 (1mi, 351°) 1113ft
RJ807 (turn) 859ft
RJ806 (turn) 557ft
RJ804 (turn) 305ft
SBRJ (1mi, 357°) 44ft
RJ901 (turn) 500ft
RJ008 (turn)
RJ902 (4mi, 73°) 2000ft
EVRIR (19mi, 120°) 5500ft
EVRIR (turn) 5500ft
RW02RYGELUT (84°)GELUT 6000ft
RJ931 (5mi, 67°) 4800ft
RJ031 (5mi, 67°) 4000ft
 RNAVRJ031 4000ft
RJ032 (5mi, 92°) 2800ft
RJ033 (3mi, 120°) 1900ft
RJ034 (3mi, 118°) 1200ft
RJ037 (4mi, 105°) 2000ft
RJ002 (5mi, 106°) 3000ft
EVRIR (13mi, 107°) 5500ft
EVRIR (turn) 5500ft
RW20LDEVRIR (290°)EVRIR 5500ft
RJ951 (8mi, 306°) 3100ft
RJ947 (3mi, 306°) 3000ft
 RNAVRJ947 3000ft
RJ010 (5mi, 303°) 2400ft
RJ949 (3mi, 283°) 1477ft
RJ948 (2mi, 283°) 900ft
RJ942 (3mi, 185°) 1400ft
RJ943 (5mi, 124°)
RJ249 (9mi, 135°) 4000ft
RJ249 (turn) 4000ft
RW20LEGELUT (84°)GELUT 6000ft
RJ946 (5mi, 67°) 4800ft
RJ031 (5mi, 67°) 3000ft
 RNAVRJ031 3000ft
RJ107 (5mi, 72°) 2170ft
RJ941 (4mi, 98°) 900ft
RJ942 (5mi, 122°) 1400ft
RJ943 (5mi, 124°)
RJ249 (9mi, 135°) 4000ft
RJ249 (turn) 4000ft
RW20LWGELUT (84°)GELUT 6000ft
RJ931 (5mi, 67°) 4800ft
RJ031 (5mi, 67°) 3500ft
RJ072 (3mi, 76°) 2500ft
 RNAVRJ072 2500ft
RJ073 (3mi, 90°) 1764ft
RJ904 (3mi, 90°) 949ft
RJ906 (2mi, 131°) 357ft
SBRJ (1mi, 175°) 50ft
RJ907 (turn) 500ft
RJ908 (2mi, 153°)
RJ909 (3mi, 131°)
UTGAX (4mi, 138°)
RJ249 (7mi, 107°)
EVRIR (7mi, 77°) 5500ft
EVRIR (turn) 5500ft
RW20LXEVRIR (290°)EVRIR 5500ft
RJ932 (4mi, 298°)
RJ226 (5mi, 298°) 2500ft
RJ227 (5mi, 287°) 2500ft
 RNAVRJ227 2500ft
RJ251 (3mi, 303°) 2000ft
RJ933 (turn) 1700ft
RJ241 (turn) 1529ft
RJ911 (1mi, 303°) 1100ft
RJ906 (2mi, 243°) 357ft
SBRJ (1mi, 175°) 50ft
RJ907 (turn) 500ft
RJ908 (2mi, 153°)
RJ909 (3mi, 131°)
UTGAX (4mi, 138°)
RJ249 (7mi, 107°)
EVRIR (7mi, 77°) 5500ft
EVRIR (turn) 5500ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ASAL1AKEVUNVHFright119 (299)°1.0min timedICAO rules
ASAL1AKOSRUVHFleft360 (180)°1.0min timedICAO rules
ASAL1ATOKIMVHFleft360 (180)°1.0min timedICAO rules
ASAL1BKEVUNVHFright119 (299)°1.0min timedICAO rules
ASAL1BKOSRUVHFleft360 (180)°1.0min timedICAO rules
ASAL1BTOKIMVHFleft360 (180)°1.0min timedICAO rules
ASAL1CKEVUNVHFright119 (299)°1.0min timedICAO rules
ASAL1CKOSRUVHFleft360 (180)°1.0min timedICAO rules
ASAL1CTOKIMVHFleft360 (180)°1.0min timedICAO rules
MAKT1BKOLBIVHFright283 (103)°1.0min timedICAO rules
MAKT1BMAKTIVHFright247 (67)°1.0min timedICAO rules
MAKT1BVUDAVVHFright205 (25)°1.0min timedICAO rules
MAKT2AKOLBIVHFright283 (103)°1.0min timedICAO rules
MAKT2AMAKTIVHFright247 (67)°1.0min timedICAO rules
MAKT2AVUDAVVHFright205 (25)°1.0min timedICAO rules
ROPA1AAKNUBVHFright230 (50)°1.0min timedICAO rules
ROPA1AKABUKVHFright206 (26)°1.0min timedICAO rules
ROPA1AKOLBIVHFright283 (103)°1.0min timedICAO rules
SINA1AMCANDBleft56 (236)°1.0min timedICAO rules
SINA1ASINAGVHFleft96 (276)°1.0min timedICAO rules
SINA1AUMDEDVHFleft96 (276)°1.0min timedICAO rules
SINA1BMCANDBleft56 (236)°1.0min timedICAO rules
SINA1BSINAGVHFleft96 (276)°1.0min timedICAO rules
SINA1BUMDEDVHFleft96 (276)°1.0min timedICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
