Airports for X-Plane

Santa Maria

Airport details

CountryBrazil
StateRio Grande do Sul
RegionSB
AirspaceCuritiba Ctr
MunicipalitySanta Maria
Elevation287ft (87m)
TimezoneGMT -3
Coordinates-29.71083, -53.69222
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSBSM
IATA codeRIA
FAA coden/a

Communication

Santa Maria Tower118.850
Santa Maria Tower118.300
Santa Maria Approach121.350
Santa Maria Approach119.350

Approach frequencies

ILS-cat-IRW11110.318.00mi
3° GSRW11110.318.00mi

Runway info

Runway 11 / 29
 length2703m (8868ft)
 bearing93° / 273°
 width45m (148ft)
 surfaceconcrete
 blast zone255m (837ft) / 255m (837ft)
Runway 02 / 20
 length1773m (5817ft)
 bearing3° / 183°
 width30m (98ft)
 surfaceasphalt
 displ threshold0m (0ft) / 259m (850ft)
 blast zone58m (190ft) / 0m (0ft)

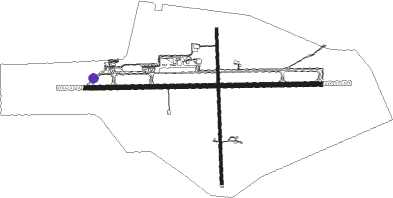

Airport layout - taxiway location A


Taxiway locations

 A  B  C  D  E  F
Parking locations

 Gate

Nearby beacons

codeidentifierdistbearingfrequency
SMASANTA MARIA VOR/DME1273°112
CATCRUZ ALTA NDB59.53°335

Departure and arrival routes

Transition altitude4000ft
SID end pointsdistanceoutbound heading
RW11
 ALBA1B104mi44°
 SMA1B14mi46°
 TOPI1B53mi69°
 KEKA1C, KEKA1D39mi93°
 IMPE1C, IMPE1D39mi97°
 POXE1A39mi159°
 BGE1B103mi194°
 GUXA1B29mi232°
 OMNI11mi273°
 RAXE1C, RAXE1D, IBDO1A41mi281°
 ISLI1B53mi349°
RW20
 BGE1B103mi194°
 GUXA1B29mi232°
 OMNI11mi273°
 RAXE1D41mi281°
RW29
 ALBA2A104mi44°
 SMA2A14mi46°
 TOPI2A53mi69°
 KEKA2B, KEKA2A39mi93°
 IMPE2B, IMPE2A39mi97°
 POXE1B39mi159°
 BGE1C, BGE1B, BGE1A103mi194°
 GUXA2A, GUXA1B29mi232°
 OMNI11mi273°
 RAXE2B, RAXE2A, RAXE1D41mi281°
 ISLI2A53mi349°

STAR starting pointsdistanceinbound heading
RW11
 RAXE1A41.0101°
 GEGA1A55.0253°
 KEKA1A38.8273°
 IMPE1A38.8277°
RW29
 RAXE1B41.0101°
 GEGA1B55.0253°
 KEKA1B38.8273°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW11SM001 (93°)SM001 5000ft
SM004 (6mi, 93°) 3000ft
RW11SM002 (114°)SM002 5000ft
SM004 (6mi, 161°) 3000ft
RW11SM003 (72°)SM003 5000ft
SM004 (6mi, 27°) 3000ft
 RNAVSM004 3000ft
ULVUD (5mi, 93°) 1930ft
SM021 (2mi, 93°) 1293ft
SM022 (turn) 1006ft
SBSM (3mi, 93°) 338ft
(3546mi, 61°) 800ft
SM017 (3541mi, 241°) 5000ft
SM017 (turn) 5000ft
RW29SM008 (273°)SM008 5000ft
SM011 (6mi, 273°) 3500ft
RW29SM009 (295°)SM009 5000ft
SM011 (6mi, 4°) 3500ft
RW29SM012 (251°)SM012 5000ft
SM011 (6mi, 184°) 3500ft
 RNAVSM011 3500ft
SM013 (6mi, 273°) 2510ft
SM018 (2mi, 273°) 1677ft
SM019 (2mi, 273°) 1027ft
SBSM (3mi, 273°) 306ft
(3546mi, 61°) 800ft
SM009 (3537mi, 241°) 5000ft
SM009 (turn) 5000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
GEGA1ASM016VHFright108 (288)°1.0min timedICAO rules
GEGA1BSM012VHFright288 (108)°1.0min timedICAO rules
IMPE1ASM014VHFleft109 (289)°1.0min timedICAO rules
KEKA1ASM016VHFright108 (288)°1.0min timedICAO rules
KEKA1BSM008VHFright109 (289)°1.0min timedICAO rules
RAXE1ASM001VHFright289 (109)°1.0min timedICAO rules
RAXE1BSM012VHFright288 (108)°1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
