Airports for X-Plane

Santiago - Arturo Benítez Intl

Airport details

CountryChile
StateSantiago Metropolitan Region
RegionSC
AirspaceSantiago Ctr
MunicipalityPudahuel
Elevation1555ft (474m)
TimezoneGMT -4
Coordinates-33.38733, -70.78989
Magnetic var
Typeland
Available sinceX-Plane v10.32
ICAO codeSCEL
IATA codeSCL
FAA coden/a

Communication

Arturo Benítez Intl ATIS132.100
Arturo Benítez Intl Delivery121.700
Arturo Benítez Intl Ground Control122.500
Arturo Benítez Intl Tower118.100
Arturo Benítez Intl Radar North119.700
Arturo Benítez Intl Radar South127.900

Approach frequencies

ILS-cat-IIIRW17L110.318.00mi
ILS-cat-IRW17R111.118.00mi
3° GSRW17R111.118.00mi
3° GSRW17L110.318.00mi

Runway info

Runway 17L / 35R
 length3758m (12329ft)
 bearing177° / 357°
 width55m (180ft)
 surfaceasphalt
 displ threshold0m (0ft) / 546m (1791ft)
Runway 17R / 35L
 length3811m (12503ft)
 bearing177° / 357°
 width45m (148ft)
 surfaceasphalt

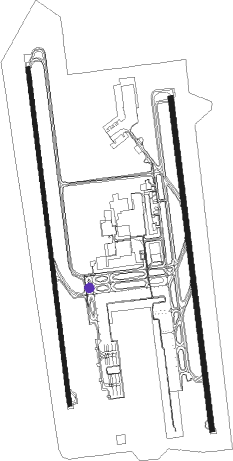

Airport layout - taxiway location Q


Taxiway locations

 A  B  C  F  H  K  Q  T
 U  V  W  Z
Parking locations

 Rampstart

Nearby beacons

codeidentifierdistbearingfrequency
PDHPUDAHUEL (SANTIAGO) VOR/DME1.7203°117.20
AMBSANTIAGO VOR/DME1.9170°116.10
BQEEL BOSQUE VOR/DME11.7151°117.50
TBNTABON VOR/DME28.2354°113.90
VDMVINA DEL MAR VOR/DME43.4303°114.90
SNOSANTO DOMINGO NDB44.1252°355
DGODOMINGO VOR/DME44.3252°112.30
SALSALINAS NDB44.5298°390
VTNVENTANAS VOR/DME52.7313°113.30

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW16
 DILO5B88mi6°
 GUVO5B67mi29°
 NEBE5C, NEBE6A51mi115°
 ALBA5C, ALBA6A68mi129°
 LINE4C, LINE4A32mi176°
 ANGO6B, ANGO5C38mi192°
 GELU4B, GELU4A38mi218°
 SABLA631mi277°
 VTN453mi313°
 DONT4B, DONT4A33mi318°
 TBN4A28mi354°
RW17 (ALL)
 DILO5B88mi6°
 GUVO5B67mi29°
 GELU4B38mi218°
RW17L
 NEBE6A, NEBE5C51mi115°
 ALBA5C, ALBA6A68mi129°
 LINE4C, LINE4A32mi176°
 ANGO5C, ANGO6B38mi192°
 GELU4A38mi218°
 SABLA631mi277°
 VTN453mi313°
 DONT4A, DONT4B33mi318°
 TBN4A28mi354°
RW17R
 NEBE6A, NEBE5C51mi115°
 ALBA5C, ALBA6A68mi129°
 LINE4C, LINE4A32mi176°
 ANGO5C, ANGO6B38mi192°
 GELU4A38mi218°
 SABLA631mi277°
 VTN453mi313°
 DONT4B, DONT4A33mi318°
 TBN4A28mi354°
RW35 (ALL)
 NEBE4D51mi115°
 ALBA4D68mi129°
 LINE4D32mi176°
 GELU2C38mi218°
RW35L
 DILO4A88mi6°
 GUVO4C, GUVO3A67mi29°
 TENUT440mi325°
RW35R
 DILO4A88mi6°
 GUVO3A, GUVO4C67mi29°
 TENUT440mi325°

STAR starting pointsdistanceinbound heading
RW16
 EROL6A81.826°
 EROL5E11.627°
 EROL6F33.2156°
 ANDES928.2174°
 UMKA6C, UMKA5A, SIMO6B, ASIM8B, ASIM6D28.1177°
 BAYOS852.1177°
RW17 (ALL)
 EROL6A81.826°
RW17L
 EROL5E11.627°
 EROL6F33.2156°
 ANDES928.2174°
 UMKA5A, SIMO6B, UMKA6C, ASIM8B, ASIM6D28.1177°
 BAYOS852.1177°
RW17R
 EROL1D81.826°
 EROL5E11.627°
 EROL6F33.2156°
 ANDES928.2174°
 SIMO6B, UMKA6C, UMKA5A, ASIM8B, ASIM6D28.1177°
 BAYOS852.1177°
RW35 (ALL)
 EROL4B81.826°
 SABL4A30.997°
 SIMO5D98.2178°
 ASIM4C93.4197°
 UMKA6B49.9237°
RW35L
 EROL4C, KODVO420.5356°
RW35R
 KODVO4, EROL4C20.5356°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW16-YISILO (203°)ISILO 6000ft
TEGEB (5mi, 266°) 5000ft
RW16-YPUMAR (178°)PUMAR 6500ft
TEGEB (9mi, 177°) 5000ft
RW16-YTEGEB (178°)TEGEB 5000ft
 RNAVTEGEB 5000ft
ATTES (6mi, 177°) 3100ft
SCEL (5mi, 180°) 1601ft
(4447mi, 65°) 2100ft
EL059 (4446mi, 245°)
EL099 (4mi, 72°)
EL138 (4mi, 11°)
PULKI (6mi, 333°) 6000ft
ISILO (7mi, 353°) 6000ft
TEGEB (5mi, 266°) 6000ft
TEGEB (turn) 6000ft
RW16-ZPUMAR (178°)PUMAR 6500ft
TEGEB (9mi, 177°) 5000ft
RW16-ZTEGEB (178°)TEGEB 5000ft
 RNAVTEGEB 5000ft
NEGTA (2mi, 177°) 4400ft
ILKOS (2mi, 177°) 3700ft
ATTES (3mi, 177°) 3100ft
SCEL (5mi, 180°) 1601ft
(4447mi, 65°) 2100ft
EL059 (4446mi, 245°)
EL099 (4mi, 72°)
EL138 (4mi, 11°)
PULKI (6mi, 333°) 6000ft
ISILO (7mi, 353°) 6000ft
TEGEB (5mi, 266°) 6000ft
TEGEB (turn) 6000ft
RW17LXISILO (203°)ISILO 6000ft
TEGEB (5mi, 266°) 5000ft
RW17LXPUMAR (178°)PUMAR 6500ft
TEGEB (9mi, 177°) 5000ft
RW17LXTEGEB (178°)TEGEB 5000ft
 RNAVTEGEB 5000ft
ATTES (6mi, 177°) 3000ft
SCEL (5mi, 180°) 1601ft
(4447mi, 65°) 2100ft
EL059 (4446mi, 245°)
EL099 (4mi, 72°)
EL138 (4mi, 11°)
PULKI (6mi, 333°) 6000ft
ISILO (7mi, 353°) 6000ft
TEGEB (5mi, 266°) 6000ft
TEGEB (turn) 6000ft
RW17LYPUMAR (178°)PUMAR 6500ft
TEGEB (9mi, 177°) 5000ft
RW17LYTEGEB (178°)TEGEB 5000ft
 RNAVTEGEB 5000ft
NEGTA (2mi, 177°) 4400ft
ILKOS (2mi, 177°) 3700ft
ATTES (3mi, 177°) 3000ft
SCEL (5mi, 180°) 1601ft
(4447mi, 65°) 2100ft
EL059 (4446mi, 245°)
EL099 (4mi, 72°)
EL138 (4mi, 11°)
PULKI (6mi, 333°) 6000ft
ISILO (7mi, 353°) 6000ft
TEGEB (5mi, 266°) 6000ft
TEGEB (turn) 6000ft
RW17RTVOVPO (355°)VOVPO 10000ft
EL243 (7mi, 321°) 8000ft
EL184 (6mi, 321°) 6500ft
EL148 (3mi, 5°) 5600ft
EL130 (2mi, 65°) 5300ft
ARUKI (2mi, 97°) 5000ft
 RNAVARUKI 5000ft
EL069 (4mi, 141°) 3800ft
NEGAG (2mi, 175°) 3100ft
SCEL (6mi, 169°) 1601ft
EL041 (3mi, 191°)
EL079 (4mi, 177°)
GENPO (5mi, 177°)
TELAG (9mi, 236°) 6000ft
TELAG (turn) 6000ft
RW17RXISILO (203°)ISILO 6000ft
SEDPA (5mi, 269°) 5000ft
RW17RXSEDPA (173°)SEDPA 5000ft
RW17RXTEMUS (175°)TEMUS 6500ft
SEDPA (9mi, 177°) 5000ft
 RNAVSEDPA 5000ft
NEGAG (6mi, 177°) 3100ft
SCEL (6mi, 169°) 1601ft
EL041 (3mi, 191°)
EL079 (4mi, 177°)
GENPO (5mi, 177°) 5000ft
GENPO (turn) 5000ft
RW17RYKIDAS (173°)KIDAS 5000ft
RW17RYTEMUS (175°)TEMUS 6500ft
KIDAS (9mi, 177°) 5000ft
 RNAVKIDAS 5000ft
ISOVA (5mi, 177°) 3300ft
SCEL (6mi, 170°) 1601ft
(4447mi, 65°) 1960ft
EL023 (4448mi, 245°)
PORMA (8mi, 156°) 3300ft
TELAG (13mi, 233°) 5000ft
TELAG (turn) 5000ft
RW35LANKES (30°)ANKES 6000ft
GENPO (6mi, 88°) 5000ft
RW35LVISEK (356°)VISEK 7000ft
GENPO (8mi, 349°) 5000ft
 RNAVGENPO 5000ft
TEPIL (5mi, 357°) 3500ft
EL035 (2mi, 357°) 2700ft
EL025 (turn) 2400ft
SCEL (4mi, 9°) 1600ft
KIDAS (11mi, 353°) 5000ft
KIDAS (turn) 5000ft
RW35RANKES (30°)ANKES 6000ft
ESKUL (7mi, 88°) 5000ft
RW35RVISEK (356°)VISEK 7000ft
ESKUL (8mi, 356°) 5000ft
 RNAVESKUL 5000ft
UKEMU (6mi, 357°) 3200ft
EL015 (4mi, 357°) 2080ft
SCEL (3mi, 352°) 1605ft
MESAL (12mi, 358°) 5000ft
MESAL (turn) 5000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ANDES9TBNNDBright342 (162)°< 24500ft1.0min timedICAO rules
ASIM4CUGOLAVHFright357 (177)°> 9000ftDME 5.0miICAO rules
ASIM6DMORPAVHFright357 (177)°> 12000ftDME 7.0miICAO rules
ASIM6DUGOLAVHFright357 (177)°> 9000ftDME 5.0miICAO rules
ASIM8BMORPAVHFright357 (177)°> 12000ftDME 7.0miICAO rules
ASIM8BUGOLAVHFright357 (177)°> 9000ftDME 5.0miICAO rules
BAYOS8UGOLAVHFright357 (177)°> 9000ftDME 5.0miICAO rules
EROL1DKADAKVHFleft201 (21)°> 10000ftDME 7.0miICAO rules
EROL1DVOVPOVHFright176 (356)°> 10000ftDME 7.0miICAO rules
EROL4BKADAKVHFleft201 (21)°> 10000ftDME 7.0miICAO rules
EROL4CKADAKVHFleft201 (21)°> 10000ftDME 7.0miICAO rules
EROL4CPEFORVHFleft176 (356)°< 60000ftDME 4.0miICAO rules
EROL4CUKARAVHFleft176 (356)°< 60000ftDME 4.0miICAO rules
EROL5EKADAKVHFleft201 (21)°> 10000ftDME 7.0miICAO rules
EROL5ESEDPAVHFleft356 (176)°< 8000ftDME 4.0miICAO rules
EROL5ETEGEBVHFleft356 (176)°5000ft - 8000ftDME 4.0miICAO rules
EROL6AKADAKVHFleft201 (21)°> 10000ftDME 7.0miICAO rules
EROL6AVOVPOVHFright176 (356)°> 10000ftDME 7.0miICAO rules
EROL6FTABONVHFright351 (171)°> 9000ftDME 5.0miICAO rules
EROL6FUGOLAVHFright357 (177)°> 9000ftDME 5.0miICAO rules
KODVO4DGO22VHFleft273 (93)°> 7000ftDME 7.0miICAO rules
KODVO4PEFORVHFleft176 (356)°< 60000ftDME 4.0miICAO rules
KODVO4UKARAVHFleft176 (356)°< 60000ftDME 4.0miICAO rules
SABL4ASABLAVHFright303 (123)°> 8000ftDME 7.0miICAO rules
SIMO5DUGOLAVHFright357 (177)°> 9000ftDME 5.0miICAO rules
SIMO6BDABITVHFright357 (177)°> 16000ftDME 10.0miICAO rules
SIMO6BMORPAVHFright357 (177)°> 12000ftDME 7.0miICAO rules
SIMO6BUGOLAVHFright357 (177)°> 9000ftDME 5.0miICAO rules
UMKA5AUGOLAVHFright357 (177)°> 9000ftDME 5.0miICAO rules
UMKA6BUGOLAVHFright357 (177)°> 9000ftDME 5.0miICAO rules
UMKA6CUGOLAVHFright357 (177)°> 9000ftDME 5.0miICAO rules
*) magnetic outbound (inbound) holding course
