Airports for X-Plane

Concepcion - Carriel Sur

Airport details

CountryChile
StateBiobío Region
RegionSC
AirspaceSantiago Ctr
MunicipalityTalcahuano
Elevation22ft (7m)
TimezoneGMT -4
Coordinates-36.77139, -73.06250
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSCIE
IATA codeCCP
FAA coden/a

Communication

Carriel Sur Ground Control121.900
Carriel Sur Concepcion Tower118.600
Carriel Sur Concepcion Approach120.500

Approach frequencies

ILS-cat-IIIRW02109.918.00mi
3° GSRW02109.918.00mi

Runway info

Runway 02 / 20
 length2604m (8543ft)
 bearing30° / 210°
 width45m (148ft)
 surfaceasphalt

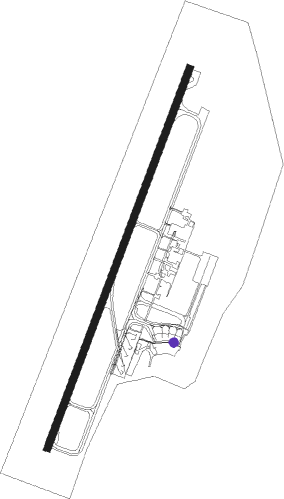

Airport layout - taxiway location 04


Taxiway locations

 01  02  03  04  A  B  C  E
 G
Parking locations

 GA  Gate  Parking

Nearby beacons

codeidentifierdistbearingfrequency
CARCONCEPCION VOR/DME131°114.30
MADLOS ANGELES VOR/DME48.8135°116.30

Departure and arrival routes

Transition altitude3500ft
SID end pointsdistanceoutbound heading
RW02
 SOST3L, SOST2J61mi26°
 LODO4M, LODO3J61mi50°
 VUMI2J, VUMI3L31mi79°
 PANE2J, PANE3M60mi182°
RW02R
 SOST2J, SOST3L61mi26°
 LODO4M, LODO3J61mi50°
 VUMI3L, VUMI2J31mi79°
 PANE3M, PANE2J60mi182°
RW20
 DEXO2J61mi5°
 ESID2J61mi17°
 SOST4M, SOST2K61mi26°
 LODO4N, LODO3K61mi50°
 VUMI4M, VUMI2K31mi79°
 PANE2L, PANE3N60mi182°
RW20L
 DEXO2J61mi5°
 ESID2J61mi17°
 SOST4M, SOST2K61mi26°
 LODO4N, LODO3K61mi50°
 VUMI2K, VUMI4M31mi79°
 PANE2L, PANE3N60mi182°

STAR starting pointsdistanceinbound heading
RW02
 PANE5B, PANE6A59.72°
 ESID2A61.1197°
 SOST6D61.1206°
 ARUN6E61.1215°
 VUMI6C30.5259°
 ANGO5A, ANGO5C56.8339°
RW02R
 PANE5B, PANE6A59.72°
 ESID2A61.1197°
 SOST6D61.1206°
 ARUN6E61.1215°
 VUMI6C30.5259°
 ANGO5C, ANGO5A56.8339°
RW20
 PANE5C59.72°
 SOST5C, SOST5A61.1206°
 ARUN6C61.1215°
 VUMI4B30.5259°
 ANGO4B56.8339°
RW20L
 PANE5C59.72°
 SOST5A, SOST5C61.1206°
 ARUN6C61.1215°
 VUMI4B30.5259°
 ANGO4B56.8339°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW02-YDAPSO (30°)DAPSO 3500ft
 RNAVDAPSO 3500ft
PANOV (8mi, 30°) 1700ft
IE030 (2mi, 30°) 1020ft
SCIE (4mi, 30°) 86ft
ARTEN (12mi, 30°) 3500ft
ARTEN (turn) 3500ft
RW02-ZDAPSO (30°)DAPSO 3500ft
 RNAVDAPSO 3500ft
PANOV (8mi, 30°) 1700ft
SCIE (6mi, 30°) 86ft
(4595mi, 63°) 3500ft
ARTEN (4588mi, 243°) 3500ft
ARTEN (turn) 3500ft
RW02RWDAPSO (30°)DAPSO 3500ft
 RNAVDAPSO 3500ft
IE051 (8mi, 31°) 1700ft
IE031 (2mi, 30°) 1020ft
SCIE (3mi, 28°) 72ft
(4595mi, 63°) 1000ft
ARTEN (4588mi, 243°) 3500ft
ARTEN (turn) 3500ft
RW20LYARTEN (210°)ARTEN 3500ft
RW20LYDAMIP (238°)DAMIP 3500ft
ARTEN (6mi, 291°) 3500ft
RW20LYRODUT (210°)RODUT 3500ft
ARTEN (6mi, 210°) 3500ft
 RNAVARTEN 3500ft
IE050 (6mi, 209°) 1700ft
SCIE (6mi, 211°) 65ft
(4595mi, 63°) 1000ft
DAPSO (4603mi, 243°) 3500ft
DAPSO (turn) 3500ft
RW20ARTEN (210°)ARTEN 3500ft
RW20DAMIP (238°)DAMIP 3500ft
ARTEN (6mi, 291°) 3500ft
RW20RODUT (210°)RODUT 3500ft
ARTEN (6mi, 210°) 3500ft
 RNAVARTEN 3500ft
SIDIV (6mi, 210°) 1700ft
SCIE (6mi, 210°) 79ft
DAPSO (14mi, 210°) 3500ft
DAPSO (turn) 3500ft
