Airports for X-Plane

Guayaquil - Guayaquil - Jose J De Olmedo

Airport details

CountryEcuador
StateGuayas
RegionSE
AirspaceGuayaquil Ctr
MunicipalityGuayaquil
Elevation19ft (6m)
TimezoneGMT -5
Coordinates-2.15778, -79.88389
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSEGU
IATA codeGYE
FAA coden/a

Communication

Guayaquil - Jose J de Olmedo Guayaquil ATIS126.900
Guayaquil - Jose J de Olmedo Guayaquil Center127.950
Guayaquil - Jose J de Olmedo Guayaquil Ground121.900
Guayaquil - Jose J de Olmedo Guayaquil Tower118.300
Guayaquil - Jose J de Olmedo Guayaquil Approach120.700
Guayaquil - Jose J de Olmedo Guayaquil Center128.300

Approach frequencies

ILS-cat-IRW21110.318.00mi
3° GSRW21110.318.00mi

Runway info

Runway 03 / 21
 length2698m (8852ft)
 bearing30° / 210°
 width45m (148ft)
 surfaceasphalt
 displ threshold104m (341ft) / 137m (449ft)
 blast zone86m (282ft) / 0m (0ft)

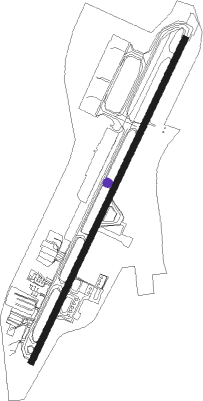

Airport layout - taxiway location D


Taxiway locations

 A  B  C  D  E  F  G  H
 J  K
Parking locations

 C10  C10A  C10B  C11  C11A  C12  C12A  C13
 C13A  C14  C7  C8  C9  C9B  East  GA
 Northeast  T15  T16A  T16B  T17A  T17B  T18A  T18B
 T19A  T19B  T20  T21A  T21B  T22  West

Nearby beacons

codeidentifierdistbearingfrequency
RGUAYAQUIL NDB1.732°315
GYVGUAYAQUIL VOR/DME230°115.90
PALPALMA (GUAYAQUIL) NDB930°365
SOLCHONGON (GUAYAQUIL) NDB12.4248°280
CUVCUENCA VOR/DME70.8125°114.50
CUNCUENCA NDB70.9125°410

Departure and arrival routes

Transition altitude3000ft
SID end pointsdistanceoutbound heading
RW03
 DALUD2, DALU2A42mi2°
 VULKY242mi6°
 DAKA2A42mi20°
 BIVA2A, BIVA2B42mi33°
 MIMIT238mi185°
 SOL2A12mi248°
 ASOSI2, ASOS3B39mi268°
 RENA2B, RENAR241mi329°
RW21
 TOLAV2215mi1°
 REGAP297mi33°
 EVRED4, EVRE2A39mi171°
 PUNA2A, PUNAS438mi185°
 SOL312mi248°
 ASOS3A39mi268°
 RENA2A41mi329°

STAR starting pointsdistanceinbound heading
RW03
 PUNAS138.15°
 IROM2A39.8115°
 ASDE2A67.0148°
 DALUD141.8182°
 DAKAB142.0200°
RW21
 STAR3, IROMO239.8115°
 ASDEL267.0148°
 UGUPI2214.6181°
 TEMOX2104.7206°
 EVRED238.9351°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW03ARSOR (30°)ARSOR 4000ft
IRODA (6mi, 30°) 2500ft
RW03UMDER (59°)UMDER 4000ft
IRODA (6mi, 120°) 2500ft
 RNAVIRODA 2500ft
SELDI (5mi, 30°) 1700ft
SEGU (6mi, 30°) 90ft
PAL (9mi, 30°) 3000ft
PAL (turn) 3000ft
RW21MUBAS (210°)MUBAS 3500ft
LOGED (5mi, 210°) 2500ft
RW21REGAP (235°)REGAP 3500ft
LOGED (5mi, 300°) 2500ft
RW21SIDEV (181°)SIDEV 4000ft
LOGED (6mi, 120°) 2500ft
 RNAVLOGED 2500ft
ERURA (4mi, 210°) 2000ft
SEGU (7mi, 210°) 78ft
SELDI (6mi, 210°) 2000ft
SIDEV (18mi, 10°) 4000ft
SIDEV (turn) 4000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ASDE2AUMDERVHFleft303 (123)°> 4000ft1.0min timedICAO rules
ASDEL2SIDEVVHFright303 (123)°> 4000ft1.0min timedICAO rules
DAKAB1UMDERVHFleft303 (123)°> 4000ft1.0min timedICAO rules
DALUD1UMDERVHFleft303 (123)°> 4000ft1.0min timedICAO rules
EVRED2EVREDVHFright178 (358)°> 14000ft1.5min timedICAO rules
IROM2AUMDERVHFleft303 (123)°> 4000ft1.0min timedICAO rules
IROMO2SIDEVVHFright303 (123)°> 4000ft1.0min timedICAO rules
PUNAS1ARSORVHFleft213 (33)°> 4000ft1.0min timedICAO rules
STAR1PALFIXright33 (213)°< 60000ft1.0min timedICAO rules
STAR2PALFIXright33 (213)°< 60000ft1.0min timedICAO rules
STAR3PALFIXright33 (213)°< 60000ft1.0min timedICAO rules
STAR4PALFIXright33 (213)°< 60000ft1.0min timedICAO rules
STAR5PALFIXright33 (213)°< 60000ft1.0min timedICAO rules
TEMOX2MUBASVHFright33 (213)°> 4000ft1.0min timedICAO rules
UGUPI2MUBASVHFright33 (213)°> 4000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
