Guayaquil - Guayaquil - Jose J De Olmedo
Airport details
| Country | Ecuador |
| State | Guayas |
| Region | SE |
| Airspace | Guayaquil Ctr |
| Municipality | Guayaquil |
| Elevation | 19ft (6m) |
| Timezone | GMT -5 |
| Coordinates | -2.15778, -79.88389 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | SEGU |
| IATA code | GYE |
| FAA code | n/a |
Communication
| Guayaquil - Jose J de Olmedo Guayaquil ATIS | 126.900 |
| Guayaquil - Jose J de Olmedo Guayaquil Center | 127.950 |
| Guayaquil - Jose J de Olmedo Guayaquil Ground | 121.900 |
| Guayaquil - Jose J de Olmedo Guayaquil Tower | 118.300 |
| Guayaquil - Jose J de Olmedo Guayaquil Approach | 120.700 |
| Guayaquil - Jose J de Olmedo Guayaquil Center | 128.300 |
Approach frequencies
| ILS-cat-I | RW21 | 110.3 | 18.00mi |
| 3° GS | RW21 | 110.3 | 18.00mi |

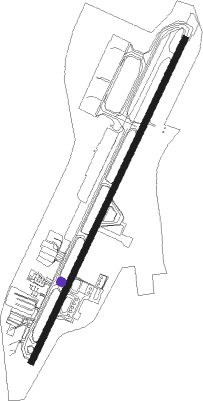

Runway info
| Runway 03 / 21 | ||
| length | 2698m (8852ft) | |
| bearing | 30° / 210° | |
| width | 45m (148ft) | |
| surface | asphalt | |
| displ threshold | 104m (341ft) / 137m (449ft) | |
| blast zone | 86m (282ft) / 0m (0ft) | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| R | GUAYAQUIL NDB | 1.7 | 32° | 315 |
| GYV | GUAYAQUIL VOR/DME | 2 | 30° | 115.90 |
| PAL | PALMA (GUAYAQUIL) NDB | 9 | 30° | 365 |
| SOL | CHONGON (GUAYAQUIL) NDB | 12.4 | 248° | 280 |
| CUV | CUENCA VOR/DME | 70.8 | 125° | 114.50 |
| CUN | CUENCA NDB | 70.9 | 125° | 410 |
Departure and arrival routes
| Transition altitude | 3000ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW03 | |||
| DALUD2, DALU2A | 42mi | 2° | |
| VULKY2 | 42mi | 6° | |
| DAKA2A | 42mi | 20° | |
| BIVA2A, BIVA2B | 42mi | 33° | |
| MIMIT2 | 38mi | 185° | |
| SOL2A | 12mi | 248° | |
| ASOSI2, ASOS3B | 39mi | 268° | |
| RENA2B, RENAR2 | 41mi | 329° | |
| RW21 | |||
| TOLAV2 | 215mi | 1° | |
| REGAP2 | 97mi | 33° | |
| EVRED4, EVRE2A | 39mi | 171° | |
| PUNA2A, PUNAS4 | 38mi | 185° | |
| SOL3 | 12mi | 248° | |
| ASOS3A | 39mi | 268° | |
| RENA2A | 41mi | 329° | |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| RW03 | |||
| PUNAS1 | 38.1 | 5° | |
| IROM2A | 39.8 | 115° | |
| ASDE2A | 67.0 | 148° | |
| DALUD1 | 41.8 | 182° | |
| DAKAB1 | 42.0 | 200° | |
| RW21 | |||
| STAR3, IROMO2 | 39.8 | 115° | |
| ASDEL2 | 67.0 | 148° | |
| UGUPI2 | 214.6 | 181° | |
| TEMOX2 | 104.7 | 206° | |
| EVRED2 | 38.9 | 351° | |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW03 | ARSOR (30°) | ARSOR 4000ft IRODA (6mi, 30°) 2500ft |
| RW03 | UMDER (59°) | UMDER 4000ft IRODA (6mi, 120°) 2500ft |
| RNAV | IRODA 2500ft SELDI (5mi, 30°) 1700ft SEGU (6mi, 30°) 90ft PAL (9mi, 30°) 3000ft PAL (turn) 3000ft | |
| RW21 | MUBAS (210°) | MUBAS 3500ft LOGED (5mi, 210°) 2500ft |
| RW21 | REGAP (235°) | REGAP 3500ft LOGED (5mi, 300°) 2500ft |
| RW21 | SIDEV (181°) | SIDEV 4000ft LOGED (6mi, 120°) 2500ft |
| RNAV | LOGED 2500ft ERURA (4mi, 210°) 2000ft SEGU (7mi, 210°) 78ft SELDI (6mi, 210°) 2000ft SIDEV (18mi, 10°) 4000ft SIDEV (turn) 4000ft |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| ASDE2A | UMDER | VHF | left | 303 (123)° | > 4000ft | 1.0min timed | ICAO rules |
| ASDEL2 | SIDEV | VHF | right | 303 (123)° | > 4000ft | 1.0min timed | ICAO rules |
| DAKAB1 | UMDER | VHF | left | 303 (123)° | > 4000ft | 1.0min timed | ICAO rules |
| DALUD1 | UMDER | VHF | left | 303 (123)° | > 4000ft | 1.0min timed | ICAO rules |
| EVRED2 | EVRED | VHF | right | 178 (358)° | > 14000ft | 1.5min timed | ICAO rules |
| IROM2A | UMDER | VHF | left | 303 (123)° | > 4000ft | 1.0min timed | ICAO rules |
| IROMO2 | SIDEV | VHF | right | 303 (123)° | > 4000ft | 1.0min timed | ICAO rules |
| PUNAS1 | ARSOR | VHF | left | 213 (33)° | > 4000ft | 1.0min timed | ICAO rules |
| STAR1 | PAL | FIX | right | 33 (213)° | < 60000ft | 1.0min timed | ICAO rules |
| STAR2 | PAL | FIX | right | 33 (213)° | < 60000ft | 1.0min timed | ICAO rules |
| STAR3 | PAL | FIX | right | 33 (213)° | < 60000ft | 1.0min timed | ICAO rules |
| STAR4 | PAL | FIX | right | 33 (213)° | < 60000ft | 1.0min timed | ICAO rules |
| STAR5 | PAL | FIX | right | 33 (213)° | < 60000ft | 1.0min timed | ICAO rules |
| TEMOX2 | MUBAS | VHF | right | 33 (213)° | > 4000ft | 1.0min timed | ICAO rules |
| UGUPI2 | MUBAS | VHF | right | 33 (213)° | > 4000ft | 1.0min timed | ICAO rules |
| *) magnetic outbound (inbound) holding course | |||||||
