Airports for X-Plane

Asunción - Silvio Pettirossi Intl

Airport details

CountryParaguay
StateCentral Department
RegionSG
AirspaceAsuncion Ctr
MunicipalityLuque
Elevation291ft (89m)
TimezoneGMT -4
Coordinates-25.24109, -57.51683
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSGAS
IATA codeASU
FAA coden/a

Communication

Silvio Pettirossi Intl Ground121.900
Silvio Pettirossi Intl Asuncion Tower118.100
Silvio Pettirossi Intl Ascuncion Approach119.700
Silvio Pettirossi Intl Ascuncion Approach120.000

Approach frequencies

ILS-cat-IRW20109.518.00mi
3° GSRW20109.518.00mi

Runway info

Runway 02 / 20
 length3366m (11043ft)
 bearing14° / 194°
 width46m (151ft)
 surfaceasphalt
 blast zone54m (177ft) / 45m (148ft)

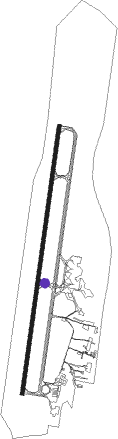

Airport layout - taxiway location C


Taxiway locations

 A  C  D  E
Parking locations

 GA1  GA10  GA11  GA12  GA13  GA14  GA15  GA16
 GA2  GA20  GA21  GA3  GA4  GA5  GA6  GA7
 GA8  GA9  Gate

Nearby beacons

codeidentifierdistbearingfrequency
VASASUNCION VOR/DME0.3239°115.90
FSAFORMOSA VOR/DME69.6216°115.60

Departure and arrival routes

Transition altitude3000ft
SID end pointsdistanceoutbound heading
RW02
 ICORA50mi34°
 ROCIO, ROLOK50mi97°
 ITAPE50mi145°
 UPOVA50mi172°
 EDRAV70mi181°
 ARPAS35mi216°
 KALOM35mi275°
 SUSRU50mi299°
 ORUMA, UKELA50mi315°
 OBLUM50mi330°
RW20
 ICORA50mi34°
 ROLOK, ROCIO50mi97°
 ITAPE50mi145°
 KONTO92mi172°
 EDRAV70mi181°
 ARPAS35mi216°
 KALOM35mi275°
 SUSRU50mi299°
 ORUMA, UKELA50mi315°
 OBLUM50mi330°

STAR starting pointsdistanceinbound heading
RW02
 SAMGU96.91°
 ISAGU100.1126°
 PUGNA100.2135°
 VUPIR100.2145°
 DEVOS99.5263°
 ESDIM99.6277°
 KONTO91.8352°
RW20
 SAMGU96.91°
 ISAGU100.1126°
 PUGNA100.2135°
 VUPIR100.2145°
 DEVOS99.5263°
 ESDIM99.6277°
 KONTO91.8352°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW02-ZATESO (14°)ATESO 3000ft
VURDO (7mi, 14°) 1930ft
RW02-ZMULSO (338°)MULSO 3000ft
VURDO (7mi, 281°) 1930ft
RW02-ZTELIT (49°)TELIT 3000ft
VURDO (7mi, 101°) 1930ft
 RNAVVURDO 1930ft
OSUNU (5mi, 14°) 1930ft
25THR (3mi, 14°) 1140ft
SGAS (3mi, 16°) 340ft
(3660mi, 66°) 3000ft
MULSO (3659mi, 246°) 3000ft
MULSO (turn) 3000ft
RW20-ZBIVAL (164°)BIVAL 3000ft
LONEL (7mi, 120°) 1890ft
RW20-ZLITUM (193°)LITUM 3000ft
LONEL (7mi, 194°) 1890ft
RW20-ZPAKOR (227°)PAKOR 3000ft
LONEL (7mi, 281°) 1890ft
 RNAVLONEL 1890ft
BURVA (5mi, 194°) 1890ft
25TH2 (3mi, 194°) 1095ft
SGAS (3mi, 191°) 299ft
(3660mi, 66°) 3000ft
PAKOR (3649mi, 246°) 3000ft
PAKOR (turn) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
DEVOSDEVOSVHFright83 (263)°1.0min timedICAO rules
ESDIMESDIMVHFleft111 (291)°1.0min timedICAO rules
ISAGUISAGUVHFright330 (150)°1.0min timedICAO rules
KONTOKONTOVHFright162 (342)°1.0min timedICAO rules
PUGNAPUGNAVHFright347 (167)°1.0min timedICAO rules
SAMGUSAMGUVHFleft194 (14)°1.0min timedICAO rules
VUPIRVUPIRVHFright3 (183)°1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
