Airports for X-Plane

Barranquilla - Ernesto Cortissoz Intl

Airport details

CountryColombia
StateAtlántico
RegionSK
AirspaceBarranquilla Ctr
MunicipalitySoledad
Elevation98ft (30m)
TimezoneGMT -5
Coordinates10.89225, -74.77282
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSKBQ
IATA codeBAQ
FAA coden/a

Communication

Ernesto Cortissoz Intl MET125.000
Ernesto Cortissoz Intl Barranquilla Information124.850
Ernesto Cortissoz Intl ATIS127.500
Ernesto Cortissoz Intl Ernesto Cortissoz Tower SMC121.900
Ernesto Cortissoz Intl Ernesto Cortissoz Tower118.100
Ernesto Cortissoz Intl Barranquilla App North119.100
Ernesto Cortissoz Intl Barranquilla ACC North128.400
Ernesto Cortissoz Intl Barranquilla ACC South124.200

Approach frequencies

ILS-cat-IRW05109.918.00mi
3° GSRW05109.918.00mi

Runway info

Runway 05 / 23
 length3020m (9908ft)
 bearing41° / 221°
 width45m (148ft)
 surfaceasphalt
 blast zone47m (154ft) / 169m (554ft)

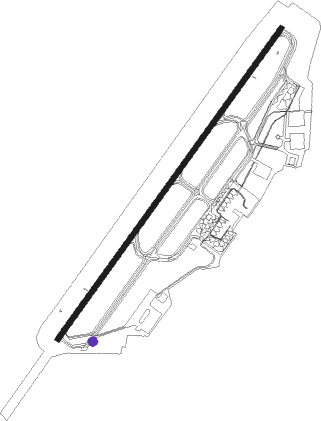

Airport layout - taxiway location A4


Taxiway locations

 A  A4  B  C  D
Parking locations

 1  10  11  12  13  14  15  16
 17  18  19  1C  2  20  21  2C
 3  3C  4  4C  5  6  6A  7
 8  9  MIL2  MIL3

Nearby beacons

codeidentifierdistbearingfrequency
BAQBARRANQUILLA VOR/DME7.7222°113.70
STASANTA MARTA VOR/DME31.682°116.60
CTCARTAGENA NDB52.9236°255
CTGCARTAGENA VOR/DME59.6227°112.30

Departure and arrival routes

Transition altitude18000ft
Transition level19000ft
SID end pointsdistanceoutbound heading
RW05
 EVPI1A63mi4°
 EDRE2A44mi7°
 TIGR1A58mi47°
 ENTI1C38mi66°
 STA3C32mi82°
 VUMB1B29mi103°
 EGOK1B29mi120°
 UMKI1B34mi143°
 DARN2B47mi162°
 ISOT2B59mi171°
 NINL1A193mi180°
 VOVL1B84mi183°
 UGRE1A73mi199°
 UGSO1A79mi207°
 CTG2E60mi227°
 VARO2D58mi279°
 KAKU1A55mi327°
 MORG2C49mi338°

STAR starting pointsdistanceinbound heading
ALL
 VOVL2A83.73°
 KAKU1B55.4147°
 MORG3A49.4158°
 ENTI2A38.2246°
 STA5A31.6262°
 ISOT4A58.7351°
RW05
 LOLU1A56.610°
 CZU1B98.218°
 UGSO1D78.927°
 CTG1A59.647°
 VARO1C57.999°
 KAKU1C55.4147°
 MORG1B49.4158°
 EDRE1B44.0187°
 ENTI1B38.2246°
 STA2B31.6262°
 VUMB1A28.5283°
 EGOK1A28.8300°
 UMKI1A33.9323°
 DARN1A46.5342°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW05EROLA (42°)EROLA 3000ft
RW05GIKTI (68°)GIKTI 4000ft
EROLA (6mi, 130°) 3000ft
RW05VALOP (15°)VALOP 4000ft
EROLA (6mi, 310°) 3000ft
 RNAVEROLA 3000ft
NUVUP (5mi, 41°) 2000ft
BQ402 (3mi, 41°) 1000ft
SKBQ (4mi, 44°) 157ft
(4508mi, 98°) 1200ft
OPSUR (4512mi, 278°) 4000ft
OPSUR (turn) 4000ft
RW23ASIVI (190°)ASIVI 4000ft
MIKID (6mi, 131°) 2400ft
RW23UKEKI (220°)UKEKI 4000ft
MIKID (6mi, 221°) 2400ft
RW23VUBON (249°)VUBON 4000ft
MIKID (6mi, 311°) 2400ft
 RNAVMIKID 2400ft
SAVRI (5mi, 221°) 1690ft
SD23 (2mi, 221°) 900ft
SKBQ (3mi, 215°) 103ft
(4508mi, 98°) 660ft
KOSVA (4511mi, 278°) 5000ft
KOSVA (turn) 5000ft
