Airports for X-Plane

Oranjestad - Reina Beatrix Intl

Airport details

CountryNetherlands
State[Other]
RegionTN
AirspaceCuracao Ctr
MunicipalityOranjestad (city)
Elevation60ft (18m)
TimezoneGMT -4
Coordinates12.50138, -70.01523
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeTNCA
IATA codeAUA
FAA coden/a

Communication

Reina Beatrix Intl ATIS132.100
Reina Beatrix Intl Ground Control121.900
Reina Beatrix Intl BEATRIX Tower120.900
Reina Beatrix Intl BEATRIX Tower128.850

Approach frequencies

ILS-cat-IRW11108.718.00mi
3° GSRW11108.718.00mi
Nearby Points of Interest:
Willem III Tower
-
Stadhuis, Oranjestad, Aruba
-
Censo / Ex Hotel Colombia
-
Watertower Oranjestad
-
Stadskunukuhuis
-
Kalkoven (Aruba)
-
Gele huisje
-
Uncle Louis Store
-
Watertower San Nicolas
-
Juwana Morto

Runway info

Runway 11 / 29
 length2828m (9278ft)
 bearing103° / 283°
 width45m (148ft)
 surfaceasphalt
 displ threshold86m (282ft) / 26m (85ft)
 blast zone59m (194ft) / 56m (184ft)

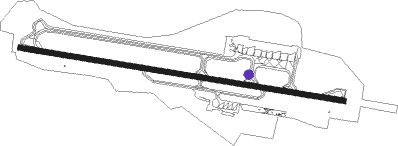

Airport layout - taxiway location B


Taxiway locations

 A  B  C  D  E  F  G
Parking locations

 GA  Gate

Nearby beacons

codeidentifierdistbearingfrequency
BEABEATRIX (ARUBA) VOR/DME0.3272°113.80
ABAARUBA VOR/DME4.287°112.50
PRGPARAGUANA (PUNTO FIJO) VOR/DME43.8189°113.60

Departure and arrival routes

Transition altitude2500ft
Transition level4000ft
SID end pointsdistanceoutbound heading
RW11
 KARU1F213mi10°
 WALP1E, WALP1F31mi25°
 SCAP1F248mi37°
 ADRI1F, ADRI1E25mi104°
 ELOT1E, ELOT1F25mi124°
 ITSE1F, ITSE1E13mi176°
 NORE1F, NORE1E12mi194°
 DATO1E, DATO2F16mi250°
 AMBA1F109mi280°
 KISA1F220mi342°
 VESK1F214mi348°
 BERO1F210mi359°
RW29
 KARU1H213mi10°
 SCAP1H248mi37°
 IRLE2H40mi106°
 PJG1G62mi107°
 ELOT2H, ELOT1G25mi124°
 ITSE1G, ITSE1H13mi176°
 NORE1H, NORE1G12mi194°
 DATO1G, DATO1H16mi250°
 AMBA1H109mi280°
 XUBA1H30mi341°
 KISA1H220mi342°
 VESK1H214mi348°
 BERO1H210mi359°

STAR starting pointsdistanceinbound heading
RW11
 NORE2A11.714°
 DATO2A15.970°
 AMBA2A109.1100°
 KISA2A220.4162°
 VESK2A214.4168°
 BERO2A210.1179°
 SCAP2A248.0217°
 IRLE2A39.7286°
 ITSE2A13.1356°
RW29
 NORE2C11.714°
 DATO2C15.970°
 AMBA2C109.1100°
 KISA1C220.4162°
 VESK1C214.4168°
 BERO1C210.1179°
 SCAP1C248.0217°
 ADRI1C24.9284°
 ITSE2C13.1356°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW11ELUMO (78°)ELUMO
DAVLA (6mi, 14°) 2500ft
RW11IGROM (129°)IGROM
DAVLA (6mi, 194°) 2500ft
 RNAVDAVLA 2500ft
BOMDA (5mi, 103°) 2000ft
AMAVA (5mi, 103°) 301ft
(4236mi, 100°) 800ft
KAPOB (4239mi, 280°)
IGROM (6mi, 283°)
IGROM (turn)
RW29NADAV (310°)NADAV
MIDVU (6mi, 14°) 2500ft
RW29OKUTO (257°)OKUTO
MIDVU (6mi, 194°) 2500ft
 RNAVMIDVU 2500ft
LENIT (5mi, 283°) 2000ft
TNCA (7mi, 283°) 112ft
(4235mi, 100°) 1000ft
SELOR (4229mi, 280°) 2500ft
NADAV (5mi, 103°) 2500ft
MIDVU (6mi, 14°) 2500ft
MIDVU (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ADRI1CMIDVUVHFright115 (295)°2500ft - 10000ftDME 4.0mi230
AMBI2AIGROMVHFright25 (205)°4000ft - 10000ftDME 4.0mi230
BERO2AIGROMVHFright25 (205)°4000ft - 10000ftDME 4.0mi230
DIBO2AIGROMVHFright25 (205)°4000ft - 10000ftDME 4.0mi230
KISA2AIGROMVHFright25 (205)°4000ft - 10000ftDME 4.0mi230
SCAP2AIGROMVHFright25 (205)°4000ft - 10000ftDME 4.0mi230
VESK2AIGROMVHFright25 (205)°4000ft - 10000ftDME 4.0mi230
*) magnetic outbound (inbound) holding course
