Airports for X-Plane

Almaty - Almaty Intl

Airport details

CountryKazakhstan
StateAlmaty Region
RegionUA
AirspaceAlmaty Ctr
MunicipalityAlmaty
Elevation2229ft (679m)
TimezoneGMT +6
Coordinates43.35556, 77.04389
Magnetic var
Typeland
Available sinceX-Plane v10.30
ICAO codeUAAA
IATA codeALA
FAA coden/a

Communication

Almaty Intl ALMATY ATIS EN129.800
Almaty Intl ALMATY ATIS RU135.100
Almaty Intl ALMATY_TAXIING Ground Control121.700
Almaty Intl ALMATY Tower119.400
Almaty Intl ALMATY Approach124.800

Approach frequencies

ILS-cat-IIIRW23R111.318.00mi
ILS-cat-IIIRW23L108.118.00mi
ILS-cat-IRW05R110.318.00mi
ILS-cat-IRW05L109.118.00mi
3° GSRW23R111.318.00mi
3° GSRW23L108.118.00mi
3° GSRW05R110.318.00mi
3° GSRW05L109.118.00mi
Nearby Points of Interest:
Talgar
-
Ile-Alatau National Park

Runway info

Runway 05R / 23L
 length4384m (14383ft)
 bearing64° / 244°
 width45m (148ft)
 surfaceasphalt
 blast zone81m (266ft) / 78m (256ft)
Runway 05L / 23R
 length4489m (14728ft)
 bearing64° / 244°
 width45m (148ft)
 surfaceconcrete
 blast zone125m (410ft) / 118m (387ft)

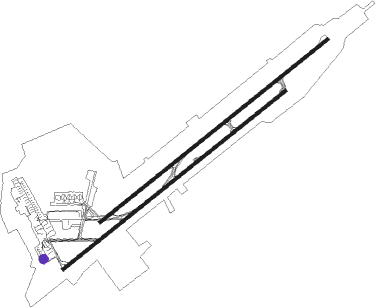

Airport layout - parking location 46


Taxiway locations

 A  B  C  D  E  F  K
Parking locations

 01  02  03  04  05  06  07  08
 12  13  14  16  17  18  19  20
 21  22  23  24  25  26  27  28
 29  30  31  31A  32  32A  33  34
 35  36  37  38  39  40  41  42
 42A  43  43A  44  45  46  46A  47
 48  49  50  51  52  53  54  55
 56  57  58  59  59B  60  60B  61
 62  63  64  65  66  67  68  69
 71  72  73  74  75  76  77  78

Nearby beacons

codeidentifierdistbearingfrequency
AALMATY NDB1.566°763
ATAALMATY VOR/DME2.162°116.40
LPCHOLPON-ATA NDB43.3178°
ILKISSYK-KUL VOR/DME49.4206°114

Departure and arrival routes

Transition altitude5187ft
Transition level7000ft
SID end pointsdistanceoutbound heading
RW05 (ALL)
 DESO5F67mi44°
 PIGA6E46mi78°
 LAKE5E11mi221°
 EKLA1E66mi271°
 RISA5E63mi316°
RW05L
 DESO1B67mi44°
 DOTA1A67mi55°
 ALUG1A54mi68°
 LAKE1B11mi221°
 EKLA1B66mi271°
 ETED1B63mi333°
RW05R
 DESO1B67mi44°
 DOTA1A67mi55°
 ALUG1A54mi68°
 LAKE1B11mi221°
 EKLA1B66mi271°
 ETED1B63mi333°
RW23 (ALL)
 DESO5G67mi44°
 PIGA6H46mi78°
 LAKE5G11mi221°
 TIPS1G68mi280°
 AGUN5G66mi297°
RW23L
 GOGD1E, GOGD1A66mi20°
 DESO1E67mi44°
 DOTA1J, DOTA1F67mi55°
 PIGA1A46mi78°
 LAKE1F11mi221°
 TIPS1A68mi280°
 TUKT1A64mi313°
 ETED1J63mi333°
RW23R
 GOGD1E, GOGD1A66mi20°
 DESO1E67mi44°
 DOTA1J, DOTA1F67mi55°
 PIGA1A46mi78°
 LAKE1F11mi221°
 TIPS1A68mi280°
 TUKT1A64mi313°
 ETED1J63mi333°

STAR starting pointsdistanceinbound heading
RW05 (ALL)
 LAKE5K, LAKE5A, LAKE1J10.741°
 TIPS1K, TIPS1S, TIPS1D, TIPS1X68.0100°
 AGUN5A, AGUN5K66.1117°
 TUKT1D, TUKT1X63.7133°
 ETED1X, ETED1P63.0153°
 GOGD1X, GOGD1J, GOGD1M, GOGD1Y66.3200°
 DESO1X, DESO5K67.0224°
 DESO1J56.0226°
 DOTA1N, DOTA1Y, DOTA1X, DOTA1P66.8235°
 DESO5A24.4244°
 ALUG3B, ALUG3K54.4248°
 PIGA1F35.1253°
 PIGA1X46.4258°
RW23 (ALL)
 LAKE5C, LAKE5L, LAKE1M10.741°
 EKLA1Z, EKLA1D, EKLA1C, EKLA1L65.591°
 BEKR1D, BEKR1Z66.0108°
 TUKT1Z, TUKT1G63.7133°
 RISA5C, RISA5L63.1136°
 ETED1Q, ETED1Z, ETED1W, ETED1R63.0153°
 GOGD1N, GOGD1Z66.3200°
 DESO1M, DESO1Z, DESO5D67.0224°
 DOTA1Q, DOTA1Z66.8235°
 DESO5L, ALUG3L24.4244°
 ALUG3C, ALUG1Z, ALUG1E54.4248°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AGUN5AUSUGAVHFright289 (109)°> 8000ft1.0min timedICAO rules
AGUN5KATANDBright51 (231)°> 10000ft1.0min timedICAO rules
ALUG1EAA231VHFleft51 (231)°14000ft - 16000ft1.5min timedICAO rules
ALUG1ELEGLAVHFright52 (232)°5300ft - 7300ft1.0min timedICAO rules
ALUG1ETIRBAVHFleft52 (232)°9000ft - 10000ft1.0min timedICAO rules
ALUG3BATANDBright51 (231)°> 10000ft1.0min timedICAO rules
ALUG3BSOPRAVHFleft51 (231)°> 10000ft1.0min timedICAO rules
ALUG3CSOPRAVHFleft51 (231)°> 10000ft1.0min timedICAO rules
ALUG3KATANDBright51 (231)°> 10000ft1.0min timedICAO rules
ALUG3LATANDBright51 (231)°> 10000ft1.0min timedICAO rules
BEKR1DAA215VHFleft273 (93)°> 18000ft1.5min timedICAO rules
BEKR1DATANDBright51 (231)°> 10000ft1.0min timedICAO rules
BEKR1DLEGLAVHFright52 (232)°5300ft - 7300ft1.0min timedICAO rules
DESO1JAA049VHFleft9 (189)°16000ft - 18000ft1.5min timedICAO rules
DESO1JAA050VHFright51 (231)°> 20000ft1.5min timedICAO rules
DESO1MGAKMAVHFright18 (198)°> 17000ft1.5min timedICAO rules
DESO1MLEGLAVHFright52 (232)°5300ft - 7300ft1.0min timedICAO rules
DESO1MTIRBAVHFleft52 (232)°9000ft - 10000ft1.0min timedICAO rules
DESO5AATANDBright51 (231)°> 10000ft1.0min timedICAO rules
DESO5KATANDBright51 (231)°> 10000ft1.0min timedICAO rules
DESO5LATANDBright51 (231)°> 10000ft1.0min timedICAO rules
DOTA1NAA049VHFleft9 (189)°16000ft - 18000ft1.5min timedICAO rules
DOTA1NAA050VHFright51 (231)°> 20000ft1.5min timedICAO rules
DOTA1PAA059VHFleft342 (162)°22000ft - 24000ft1.5min timedICAO rules
DOTA1PATANDBright51 (231)°> 10000ft1.0min timedICAO rules
DOTA1QAA231VHFleft51 (231)°14000ft - 16000ft1.5min timedICAO rules
DOTA1QLEGLAVHFright52 (232)°5300ft - 7300ft1.0min timedICAO rules
DOTA1QTIRBAVHFleft52 (232)°9000ft - 10000ft1.0min timedICAO rules
EKLA1CUSUGAVHFright289 (109)°> 8000ft1.0min timedICAO rules
EKLA1DAA215VHFleft273 (93)°> 18000ft1.5min timedICAO rules
EKLA1DATANDBright51 (231)°> 10000ft1.0min timedICAO rules
EKLA1DLEGLAVHFright52 (232)°5300ft - 7300ft1.0min timedICAO rules
EKLA1LATANDBright51 (231)°> 10000ft1.0min timedICAO rules
ETED1PAA071VHFright341 (161)°20000ft - 22000ft1.5min timedICAO rules
ETED1PAA074VHFright342 (162)°> 12000ft1.0min timedICAO rules
ETED1QAA219VHFleft318 (138)°> 13000ft1.0min timedICAO rules
ETED1RAA219VHFleft318 (138)°> 13000ft1.0min timedICAO rules
GOGD1JAA049VHFleft9 (189)°16000ft - 18000ft1.5min timedICAO rules
GOGD1MAA059VHFleft342 (162)°22000ft - 24000ft1.5min timedICAO rules
GOGD1MATANDBright51 (231)°> 10000ft1.0min timedICAO rules
GOGD1NGAKMAVHFright18 (198)°> 17000ft1.5min timedICAO rules
GOGD1NLEGLAVHFright52 (232)°5300ft - 7300ft1.0min timedICAO rules
GOGD1NTIRBAVHFleft52 (232)°9000ft - 10000ft1.0min timedICAO rules
LAKE1JATANDBright51 (231)°> 10000ft1.0min timedICAO rules
LAKE1MATANDBright51 (231)°> 10000ft1.0min timedICAO rules
LAKE1MLEGLAVHFright52 (232)°5300ft - 7300ft1.0min timedICAO rules
LAKE5AATANDBright51 (231)°> 10000ft1.0min timedICAO rules
LAKE5CATANDBright51 (231)°> 10000ft1.0min timedICAO rules
LAKE5KATANDBright51 (231)°> 10000ft1.0min timedICAO rules
LAKE5LATANDBright51 (231)°> 10000ft1.0min timedICAO rules
PIGA1FATANDBright51 (231)°> 10000ft1.0min timedICAO rules
RISA5CADABAVHFright312 (132)°> 8000ft1.0min timedICAO rules
RISA5LATANDBright51 (231)°> 10000ft1.0min timedICAO rules
TIPS1DAA074VHFright342 (162)°> 12000ft1.0min timedICAO rules
TIPS1KATANDBright51 (231)°> 10000ft1.0min timedICAO rules
TIPS1SUSUGAVHFright289 (109)°> 8000ft1.0min timedICAO rules
TUKT1DAA071VHFright341 (161)°20000ft - 22000ft1.5min timedICAO rules
TUKT1DAA074VHFright342 (162)°> 12000ft1.0min timedICAO rules
TUKT1GAA215VHFleft273 (93)°> 18000ft1.5min timedICAO rules
TUKT1GATANDBright51 (231)°> 10000ft1.0min timedICAO rules
TUKT1GLEGLAVHFright52 (232)°5300ft - 7300ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
