Airports for X-Plane

Taldykorgan

Airport details

CountryKazakhstan
StateJetisu Region
RegionUA
AirspaceAlmaty Ctr
MunicipalityEskeldi District
Elevation1943ft (592m)
TimezoneGMT +6
Coordinates45.11109, 78.43807
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeUAAT
IATA codeTDK
FAA coden/a

Communication

Taldykorgan ATC Taldykorgan Tower127.300

Runway info

Runway 02 / 20
 length2999m (9839ft)
 bearing35° / 215°
 width50m (164ft)
 surfaceconcrete
 blast zone62m (203ft) / 63m (207ft)

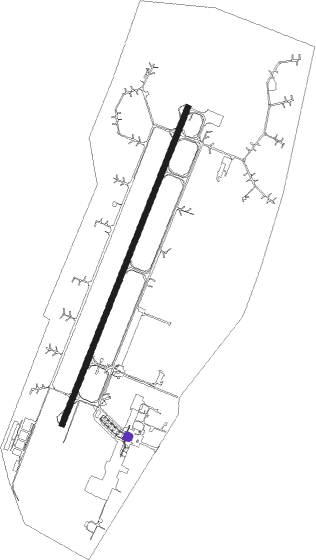

Airport layout - parking location 6


Taxiway locations

 TWY1  TWY13  TWY2  TWY3  TWY4  TWY9
Parking locations

 2  3  4  5  52  53  54  55
 56  6

Nearby beacons

codeidentifierdistbearingfrequency
TDKTALDYKORGAN VOR/DME0.4239°116.10
TTALDYKORGAN NDB0.5230°625
KTALDYKORGAN NDB1.930°625
TKTALDYKORGAN NDB2219°303
KRTALDYKORGAN NDB3.833°303

Departure and arrival routes

Transition altitude10000ft
SID end pointsdistanceoutbound heading
RW02
 BESL3E, BESL3A81mi35°
 LUSO3A, LUSO3E53mi64°
 MIPL3A, MIPL3E43mi212°
 DIPE4A, DIPE4E34mi299°
RW20
 BESL3F, BESL3B81mi35°
 LUSO3B, LUSO3F53mi64°
 MIPL3B, MIPL3F43mi212°
 DIPE4B, DIPE4F34mi299°

STAR starting pointsdistanceinbound heading
RW02
 MIPL3C, MIPL3G42.632°
 DIPE4C, DIPE4G34.2119°
 BESL3C, BESL3G80.5215°
 LUSO3G, LUSO3C52.8244°
RW20
 MIPL3H, MIPL3D42.632°
 DIPE4D, DIPE4H34.2119°
 BESL3H, BESL3D80.5215°
 LUSO3D, LUSO3H52.8244°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BESL3CTNDBright116 (296)°> 4000ft1.0min timedICAO rules
BESL3DKNDBleft53 (233)°> 4000ft1.0min timedICAO rules
BESL3GTDKNDBright21 (201)°> 7000ft1.0min timedICAO rules
BESL3HTDKNDBright21 (201)°> 7000ft1.0min timedICAO rules
DIPE4CTNDBright116 (296)°> 4000ft1.0min timedICAO rules
DIPE4DKNDBleft53 (233)°> 4000ft1.0min timedICAO rules
DIPE4GTDKNDBright21 (201)°> 7000ft1.0min timedICAO rules
DIPE4HTDKNDBright21 (201)°> 7000ft1.0min timedICAO rules
LUSO3CTNDBright116 (296)°> 4000ft1.0min timedICAO rules
LUSO3DKNDBleft53 (233)°> 4000ft1.0min timedICAO rules
LUSO3GTDKNDBright21 (201)°> 7000ft1.0min timedICAO rules
LUSO3HTDKNDBright21 (201)°> 7000ft1.0min timedICAO rules
MIPL3CTNDBright116 (296)°> 4000ft1.0min timedICAO rules
MIPL3DKNDBleft53 (233)°> 4000ft1.0min timedICAO rules
MIPL3GTDKNDBright21 (201)°> 7000ft1.0min timedICAO rules
MIPL3HTDKNDBright21 (201)°> 7000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
