Airports for X-Plane

Atyrau - Atyrau Intl

Airport details

CountryKazakhstan
StateAtyrau Region
RegionUA
AirspaceAktobe Ctr
MunicipalityAtyrau
Elevation-71ft (-22m)
TimezoneGMT +5
Coordinates47.12194, 51.82000
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeUATG
IATA codeGUW
FAA coden/a

Communication

Atyrau Intl Atyrau ATIS127.400
Atyrau Intl Atyrau Tower118.100
Atyrau Intl Atyrau Dep118.100

Approach frequencies

ILS-cat-IIRW14109.918.00mi
3° GSRW14109.918.00mi

Runway info

Runway 14 / 32
 length2999m (9839ft)
 bearing140° / 320°
 width45m (148ft)
 surfaceasphalt
 blast zone60m (197ft) / 60m (197ft)

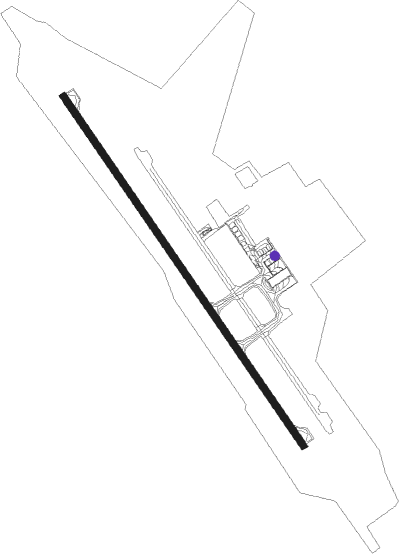

Airport layout - parking location 06


Taxiway locations

 A  B
Parking locations

 01  02  03  04  05  06  07  08
 09  10  11  12  13  14  15  16
 17  17A

Nearby beacons

codeidentifierdistbearingfrequency
TATYRAU NDB1.3320°755
ATRATYRAU VOR/DME1.5320°112.30

Departure and arrival routes

Transition altitude1568ft
Transition level4000ft
SID end pointsdistanceoutbound heading
RW14
 UDEB4C44mi56°
 GIST5C43mi73°
 BASP5C43mi83°
 GOGD4C42mi94°
 ALDA1C42mi117°
 RENP3C42mi131°
 NIKN4C42mi194°
 TUGL4C43mi255°
 OLAP4C45mi355°
RW32
 UDEB4D44mi56°
 GIST5D43mi73°
 BASP5D43mi83°
 GOGD4D42mi94°
 ALDA1D42mi117°
 RENP4D42mi131°
 NIKN4D42mi194°
 TUGL4D43mi255°
 OLAP4D45mi355°

STAR starting pointsdistanceinbound heading
RW14
 NIKN3N, NIKN3L42.014°
 TUGL3L, TUGL3N43.275°
 OLAP3L, OLAP3N44.5175°
 UDEB3N, UDEB3L43.5236°
 GIST4L, GIST3N42.9253°
 BASP4L, BASP3N42.6263°
 GOGD3L, GOGD3N42.2274°
 ALDA1N, ALDA1L41.8297°
 RENP3L, RENP3N41.6311°
RW32
 NIKN3M, NIKN3P42.014°
 TUGL3M, TUGL3P43.275°
 OLAP3M, OLAP3P44.5175°
 UDEB3M, UDEB3P43.5236°
 GIST3P, GIST4M42.9253°
 BASP3P, BASP4M42.6263°
 GOGD3P, GOGD3M42.2274°
 ALDA1P, ALDA1M41.8297°
 RENP3P, RENP3M41.6311°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ALDA1LATRNDBleft141 (321)°> 4000ft1.0min timedICAO rules
ALDA1MATRNDBleft141 (321)°> 4000ft1.0min timedICAO rules
ALDA1NTNDBright116 (296)°> 4000ft1.0min timedICAO rules
ALDA1PTNDBright116 (296)°> 4000ft1.0min timedICAO rules
BASP3NTNDBright116 (296)°> 4000ft1.0min timedICAO rules
BASP3PTNDBright116 (296)°> 4000ft1.0min timedICAO rules
BASP4LATRNDBleft141 (321)°> 4000ft1.0min timedICAO rules
BASP4MATRNDBleft141 (321)°> 4000ft1.0min timedICAO rules
GIST3NTNDBright116 (296)°> 4000ft1.0min timedICAO rules
GIST3PTNDBright116 (296)°> 4000ft1.0min timedICAO rules
GIST4LATRNDBleft141 (321)°> 4000ft1.0min timedICAO rules
GIST4MATRNDBleft141 (321)°> 4000ft1.0min timedICAO rules
GOGD3LATRNDBleft141 (321)°> 4000ft1.0min timedICAO rules
GOGD3MATRNDBleft141 (321)°> 4000ft1.0min timedICAO rules
GOGD3NTNDBright116 (296)°> 4000ft1.0min timedICAO rules
GOGD3PTNDBright116 (296)°> 4000ft1.0min timedICAO rules
NIKN3LATRNDBleft141 (321)°> 4000ft1.0min timedICAO rules
NIKN3MATRNDBleft141 (321)°> 4000ft1.0min timedICAO rules
NIKN3NTNDBright116 (296)°> 4000ft1.0min timedICAO rules
NIKN3PTNDBright116 (296)°> 4000ft1.0min timedICAO rules
OLAP3LATRNDBleft141 (321)°> 4000ft1.0min timedICAO rules
OLAP3MATRNDBleft141 (321)°> 4000ft1.0min timedICAO rules
OLAP3NTNDBright116 (296)°> 4000ft1.0min timedICAO rules
OLAP3PTNDBright116 (296)°> 4000ft1.0min timedICAO rules
RENP3LATRNDBleft141 (321)°> 4000ft1.0min timedICAO rules
RENP3MATRNDBleft141 (321)°> 4000ft1.0min timedICAO rules
RENP3NTNDBright116 (296)°> 4000ft1.0min timedICAO rules
RENP3PTNDBright116 (296)°> 4000ft1.0min timedICAO rules
TUGL3LATRNDBleft141 (321)°> 4000ft1.0min timedICAO rules
TUGL3MATRNDBleft141 (321)°> 4000ft1.0min timedICAO rules
TUGL3NTNDBright116 (296)°> 4000ft1.0min timedICAO rules
TUGL3PTNDBright116 (296)°> 4000ft1.0min timedICAO rules
UDEB3LATRNDBleft141 (321)°> 4000ft1.0min timedICAO rules
UDEB3MATRNDBleft141 (321)°> 4000ft1.0min timedICAO rules
UDEB3NTNDBright116 (296)°> 4000ft1.0min timedICAO rules
UDEB3PTNDBright116 (296)°> 4000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
