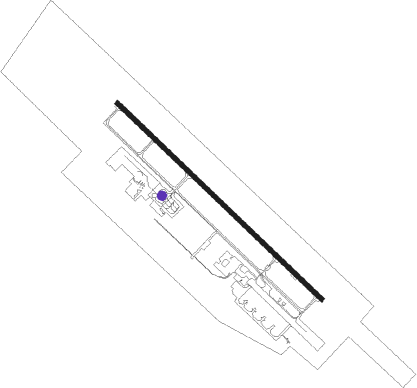

Vinnitsa - Vinnytsia Intl
Airport details
| Country | Ukraine |
| State | Vinnytsia Oblast |
| Region | UK |
| Airspace | Kyiv Ctr |
| Municipality | Vinnytsia Urban Hromada |
| Elevation | 973ft (297m) |
| Timezone | GMT +2 |
| Coordinates | 49.23694, 28.61893 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | UKWW |
| IATA code | VIN |
| FAA code | n/a |
Communication
| Vinnytsia Intl UKWW_Tower | 128.000 |
Approach frequencies
| ILS-cat-I | RW31 | 110.3 | 18.00mi |
| 3° GS | RW31 | 110.3 | 18.00mi |
Nearby Points of Interest:
Saint John the Evangelist church, Kosakivka
-Bratslav water mill and Power plant
-Synagogue in Illintsi
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| VIN | DME | 0.1 | 34° | 113.90 |
| N | GAVRYSHIVKA (VINNYTSIA) NDB | 0.8 | 120° | 842 |
| I | GAVRYSHIVKA (VINNYTSIA) NDB | 1.5 | 308° | 842 |
| WN | GAVRYSHIVKA (VINNYTSIA) NDB | 2.5 | 124° | 415 |
| WI | GAVRYSHIVKA (VINNYTSIA) NDB | 3.2 | 307° | 415 |
| SLV | SOLOVIIVKA VOR/DME | 67.9 | 45° | 113.30 |
Departure and arrival routes
| Transition altitude | 10007ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW13 | |||
| POGE6A | 29mi | 61° | |
| NIRO2A | 19mi | 140° | |
| TAKE5A | 35mi | 251° | |
| KORO4G | 31mi | 264° | |
| RW31 | |||
| POGE6C | 29mi | 61° | |
| NIRO2B | 19mi | 140° | |
| TAKE4G | 35mi | 251° | |
| KORO6B | 31mi | 264° | |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| RW13 | |||
| TAKE4H | 34.5 | 71° | |
| KORO6C | 30.8 | 84° | |
| POGE6D | 28.9 | 241° | |
| NIRO2C | 18.6 | 320° | |
| RW31 | |||
| TAKE4D | 34.5 | 71° | |
| KORO4H | 30.8 | 84° | |
| POGE6E | 28.9 | 241° | |
| NIRO2D | 18.6 | 320° | |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| KORO4H | WN | FIX | left | 132 (312)° | > 3120ft | 1.0min timed | ICAO rules |
| KORO6C | WI | FIX | right | 312 (132)° | > 3120ft | 1.0min timed | ICAO rules |
| NIRO2C | WI | FIX | right | 312 (132)° | > 3120ft | 1.0min timed | ICAO rules |
| NIRO2D | WN | FIX | left | 132 (312)° | > 3120ft | 1.0min timed | ICAO rules |
| POGE6D | WI | FIX | right | 312 (132)° | > 3120ft | 1.0min timed | ICAO rules |
| POGE6E | WN | FIX | left | 132 (312)° | > 3120ft | 1.0min timed | ICAO rules |
| TAKE4D | WN | FIX | left | 132 (312)° | > 3120ft | 1.0min timed | ICAO rules |
| TAKE4H | WI | FIX | right | 312 (132)° | > 3120ft | 1.0min timed | ICAO rules |
| *) magnetic outbound (inbound) holding course | |||||||
Disclaimer
The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
