Airports for X-Plane

Novosibirsk - Novosibirsk Tolmachevo

Airport details

CountryRussian Federation
StateNovosibirsk Oblast
RegionUN
AirspaceNovosibirsk Ctr
MunicipalityКриводановский сельсовет
Elevation365ft (111m)
TimezoneGMT +7
Coordinates55.03333, 82.59917
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeUNNT
IATA codeOVB
FAA coden/a

Communication

Novosibirsk Tolmachevo NOVOSIBIRSK ATIS127.400
Novosibirsk Tolmachevo Ground Control121.700
Novosibirsk Tolmachevo Tower 07/25118.500
Novosibirsk Tolmachevo Tower 16/34126.700
Novosibirsk Tolmachevo NOVOSIBIRSK Approach127.500

Approach frequencies

ILS-cat-IIRW16109.718.00mi
ILS-cat-IRW34111.118.00mi
ILS-cat-IRW25108.518.00mi
ILS-cat-IRW07110.118.00mi
3° GSRW34111.118.00mi
3° GSRW25108.518.00mi
3° GSRW07110.118.00mi
3° GSRW16109.718.00mi
Nearby Points of Interest:
Stanislavsky Street 3, Novosibirsk
-
Red Barracks, Novosibirsk
-
Lenina Street 86, Novosibirsk
-
Category:Krasnoyarskaya street 112, Novosibirsk
-
City Primary School on Krasnoyarskaya Street, Novosibirsk
-
Novosibirsk Main railway station
-
Housing estate near Novosibirsk-Glavny
-
Krasnoyarskaya street 3, Novosibirsk
-
City Primary School on Lenin Street, Novosibirsk
-
Deputatskaya Street 15, Novosibirsk
-
Water Tower in Novosibirsk
-
Macaroni Factory, Novosibirsk
-
Novosibirsk State Academy of Water Transport
-
Main Post Office, Novosibirsk
-
Category:Oktyabrskaya Street 15, Novosibirsk
-
Shchetinkin Street 54, Novosibirsk
-
Novosibirsk State Conservatory
-
House of Textiles, Novosibirsk
-
Ikonnikova House
-
Officers' House, Novosibirsk
-
Category:Kommunisticheskaya Street 23, Novosibirsk
-
Kryukov House
-
Kuzbassugol Building Complex
-
Severny Airport

Runway info

Runway 07 / 25
 length3586m (11765ft)
 bearing85° / 265°
 width58m (190ft)
 surfaceasphalt
 blast zone76m (249ft) / 69m (226ft)
Runway 16 / 34
 length3599m (11808ft)
 bearing163° / 343°
 width45m (148ft)
 surfaceconcrete
 blast zone75m (246ft) / 75m (246ft)

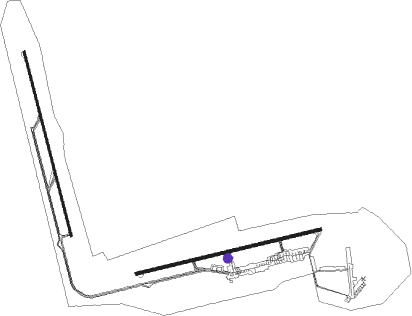

Airport layout - taxiway location C


Taxiway locations

 A  B  C  D  E  G  H  L
 N
Parking locations

 Ramp  SE

Nearby beacons

codeidentifierdistbearingfrequency
GTOLMACHEVO (NOVOSIBIRSK) NDB1.4164°700
STOLMACHEVO (NOVOSIBIRSK) NDB1.4344°722
RTOLMACHEVO (NOVOSIBIRSK) NDB1.5164°597
NSKNOVOSIBIRSK VOR/DME1.8116°113.30
ROTOLMACHEVO (NOVOSIBIRSK) NDB2.2233°860
SVTOLMACHEVO (NOVOSIBIRSK) NDB3343°520
GHTOLMACHEVO (NOVOSIBIRSK) NDB3.1163°875
KTOLMACHEVO (NOVOSIBIRSK) NDB3.4100°620
KTTOLMACHEVO (NOVOSIBIRSK) NDB4.995°310
KDNOVOTYRYSHKINO NDB16.2322°715
GVKOLYVAN NDB17.620°660
EBMATVEYEVSKIY NDB17.8102°816
NRNOVOLOKTI NDB40.4153°750

Departure and arrival routes

Transition altitude4633ft
Transition level6000ft
SID end pointsdistanceoutbound heading
RW07
 LK07T73mi86°
 PL07T69mi130°
 MM07T61mi139°
 EB07T, NR07T40mi153°
 BO07T22mi177°
 AL07T61mi196°
 OP07T66mi218°
 GL07T, GL07R56mi273°
 SM07T, GV07T58mi293°
 KD07T16mi322°
RW16
 LK16T73mi86°
 PL16T69mi130°
 EB16T, NR16T, NR16R40mi153°
 BO16T22mi177°
 AL16T61mi196°
 OP16T66mi218°
 GL16T, GL16R56mi273°
 OG16T57mi287°
 SM16T, GV16T58mi293°
 KD16T16mi322°
RW25
 PG25T10mi81°
 LK25T73mi86°
 PL25L, PL25R, PL25M69mi130°
 MM25L, MM25M, MM25T, MM25R61mi139°
 NR25L, NR25M, NR25R, NR25T, EB25M, EB25T, EB25R, EB25L40mi153°
 BO25R, BO25L, BO25M, BO25T22mi177°
 AL25R, AL25T, AL25M, AL25L61mi196°
 OP25L, OP25M, OP25R, OP25T, IB25T66mi218°
 GL25R, GL25T56mi273°
 SM25T, GV25T58mi293°
 KG25T57mi307°
 KD25T16mi322°
RW34
 LK34T73mi86°
 PL34T69mi130°
 NR34T, EB34T40mi153°
 BO34T22mi177°
 AL34T61mi196°
 OP34T, IB34T66mi218°
 GL34T56mi273°
 NP34T56mi276°
 OG34T57mi287°
 GV34T, SM34T58mi293°
 KD34T16mi322°

STAR starting pointsdistanceinbound heading
RW07
 GL07B, GL07D56.393°
 KD07B, KD07D16.2142°
 PG07D10.4261°
 LK07D, LK07B72.7266°
 AM07D22.7323°
 NR07D, NR07B40.4333°
 BO07D, BO07B21.9357°
RW16
 AL16B, AL16D60.816°
 OP16D, OP16B66.138°
 IB16D, IB16B28.159°
 GL16D, GL16B56.393°
 KD16B, KD16D16.2142°
 PG16D, LK16D, LK16B, PG16B72.7266°
 PL16D, PL16B68.7310°
 NR16D, NR16B40.4333°
 BO16B, BO16D21.9357°
RW25
 GL25D, GL25B56.393°
 KD25B, KD25D16.2142°
 LK25D72.7266°
RW34
 AL34B, AL34D60.816°
 OP34D, OP34B66.138°
 GL34D, GL34B56.393°
 KD34B, KD34C, KD34D, KD34E16.2142°
 PG34B, PG34D10.4261°
 NR34D, NR34B40.4333°
 BO34D, BO34B21.9357°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
EB07BEBFIXleft116 (296)°1.0min timedICAO rules
EB07DEBFIXleft116 (296)°1.0min timedICAO rules
EB16BEBFIXleft116 (296)°1.0min timedICAO rules
EB16DEBFIXleft116 (296)°1.0min timedICAO rules
EB25BEBFIXleft116 (296)°1.0min timedICAO rules
EB25DEBFIXleft116 (296)°1.0min timedICAO rules
EB34BEBFIXleft116 (296)°1.0min timedICAO rules
EB34DEBFIXleft116 (296)°1.0min timedICAO rules
GV07BKDFIXleft287 (107)°1.0min timedICAO rules
GV07DKDFIXleft287 (107)°1.0min timedICAO rules
GV16BKDFIXleft287 (107)°1.0min timedICAO rules
GV16DKDFIXleft287 (107)°1.0min timedICAO rules
GV25BKDFIXleft287 (107)°1.0min timedICAO rules
GV25DKDFIXleft287 (107)°1.0min timedICAO rules
GV34BKDFIXleft287 (107)°1.0min timedICAO rules
GV34DKDFIXleft287 (107)°1.0min timedICAO rules
KD07BKDFIXleft287 (107)°1.0min timedICAO rules
KD07DKDFIXleft287 (107)°1.0min timedICAO rules
KD16BKDFIXleft287 (107)°1.0min timedICAO rules
KD16DKDFIXleft287 (107)°1.0min timedICAO rules
KD25BKDFIXleft287 (107)°1.0min timedICAO rules
KD25DKDFIXleft287 (107)°1.0min timedICAO rules
KD34BKDFIXleft287 (107)°1.0min timedICAO rules
KD34CKDFIXleft287 (107)°1.0min timedICAO rules
KD34DKDFIXleft287 (107)°1.0min timedICAO rules
KD34EKDFIXleft287 (107)°1.0min timedICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
