Airports for X-Plane

Stavropol - Stavropol Shpakovskoye

Airport details

CountryRussian Federation
StateStavropol Krai
RegionUR
AirspaceRostov-na-donu Ctr
MunicipalityShpakovsky District
Elevation1483ft (452m)
TimezoneGMT +3
Coordinates45.11273, 42.11832
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeURMT
IATA codeSTW
FAA coden/a

Communication

Stavropol Shpakovskoye ATIS128.825
Stavropol Shpakovskoye Tower120.900
Stavropol Shpakovskoye Approach Control/Radar121.050

Approach frequencies

ILS-cat-IIRW25110.718.00mi
ILS-cat-IIRW07110.518.00mi
3.2° GSRW07110.518.00mi
2.7° GSRW25110.718.00mi
Nearby Points of Interest:
Stavropol Local Museum
-
Stavropol Library
-
Strizhament mount

Runway info

Runway 07 / 25
 length2594m (8510ft)
 bearing80° / 260°
 width48m (157ft)
 surfaceasphalt
 blast zone50m (164ft) / 55m (180ft)

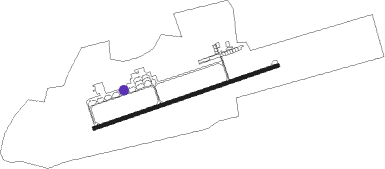

Airport layout - parking location 8


Taxiway locations

 A  B
Parking locations

 0  1  10  11  12  2  3  4
 5  6  7  8  9  Mil5  Mil6

Nearby beacons

codeidentifierdistbearingfrequency
STWSHPAKOVSKOYE VOR/DME0.2197°114.90
KSHPAKOVSKOYE (STAVROPOL) NDB185°358
OSHPAKOVSKOYE (STAVROPOL) NDB1.5256°358
KTSHPAKOVSKOYE (STAVROPOL) NDB2.682°730
OPSHPAKOVSKOYE (STAVROPOL) NDB3258°730
MDMINERALNYYE VODY NDB63.7134°468
MNWMINERALNYYE VODY VOR/DME65.9133°117.10

Departure and arrival routes

Transition altitude4439ft
Transition level6000ft
SID end pointsdistanceoutbound heading
RW07
 NEPA1A, NEPA1C, NEPA1E, NEPA1R, NEPA1T24mi23°
 PETU1A, PETU1C, PETU1E, PETU1R, PETU1T27mi60°
 DIPO1T, DIPO1R, DIPO1E, DIPO1C, DIPO1A27mi96°
 GIRT1A, GIRT1C, GIRT1E, GIRT1R, GIRT1T23mi114°
 RUGI1A, RUGI1C, RUGI1E, RUGI1R, RUGI1T22mi134°
 BUKO1A, BUKO1C, BUKO1E, BUKO1R, BUKO1T17mi153°
 BEDA1A, BEDA1C, BEDA1E, BEDA1R, BEDA1T15mi214°
 NETM1A, NETM1E, NETM1R, NETM1T, NETM1C28mi283°
 LEGN1R, LEGN1C, LEGN1A, LEGN1E, LEGN1T29mi289°
 PARA1A, PARA1T, PARA1R, PARA1E, PARA1C30mi316°
RW25
 NEPA1U, NEPA1F, NEPA1D, NEPA1B24mi23°
 PETU1D, PETU1B, PETU1U, PETU1F27mi60°
 DIPO1D, DIPO1F, DIPO1U, DIPO1B27mi96°
 GIRT1U, GIRT1D, GIRT1B, GIRT1F23mi114°
 RUGI1F, RUGI1D, RUGI1B, RUGI1U22mi134°
 BUKO1U, BUKO1D, BUKO1B, BUKO1F17mi153°
 BEDA1U, BEDA1D, BEDA1B, BEDA1F15mi214°
 NETM1F, NETM1B, NETM1D, NETM1U28mi283°
 LEGN1U, LEGN1F, LEGN1D, LEGN1B29mi289°
 PARA1U, PARA1D, PARA1B, PARA1F30mi316°

STAR starting pointsdistanceinbound heading
ALL
 BEDA1S15.434°
 NETM1S28.3103°
 LEGN1S28.8109°
 PARA1S30.4136°
 NEPA1S24.3203°
 PETU1S27.1240°
 DIPO1S27.2276°
 GIRT1S23.4294°
 RUGI1S21.8314°
RW07
 BEDA1P, BEDA1L, BEDA1J, BEDA1G15.434°
 NETM1L, NETM1J, NETM1G28.3103°
 LEGN1L, LEGN1J, LEGN1G28.8109°
 PARA1J, PARA1L, PARA1G30.4136°
 NEPA1G, NEPA1J, NEPA1L24.3203°
 PETU1J, PETU1G, PETU1L27.1240°
 DIPO1J, DIPO1G, DIPO1P, DIPO1L27.2276°
 GIRT1P, GIRT1L23.4294°
 RUGI1G, RUGI1J, RUGI1L, RUGI1P21.8314°
RW25
 BEDA1M, BEDA1K, BEDA1H15.434°
 NETM1K, NETM1M, NETM1Q, NETM1H28.3103°
 LEGN1H, LEGN1K, LEGN1M, LEGN1Q28.8109°
 PARA1H, PARA1K, PARA1M, PARA1Q30.4136°
 NEPA1M, NEPA1K, NEPA1H24.3203°
 PETU1M, PETU1K, PETU1H27.1240°
 DIPO1H, DIPO1K, DIPO1M27.2276°
 GIRT1H, GIRT1K, GIRT1M23.4294°
 RUGI1M, RUGI1K, RUGI1H21.8314°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW07MT074 (58°)MT074 4500ft
MT073 (6mi, 340°) 4300ft
RW07MT076 (99°)MT076 4500ft
MT073 (6mi, 160°) 4300ft
 RNAVMT073 4300ft
MT072 (6mi, 80°) 3300ft
URMT (6mi, 79°) 1540ft
(3509mi, 223°) 2500ft
MT077 (3507mi, 43°)
MT076 (6mi, 260°) 4500ft
RW25MT254 (279°)MT254 3500ft
MT253 (6mi, 340°) 3500ft
RW25MT256 (239°)MT256 3500ft
MT253 (6mi, 160°) 3500ft
 RNAVMT253 3500ft
MT252 (6mi, 260°) 3000ft
URMT (6mi, 261°) 1491ft
(3509mi, 223°) 2500ft
MT257 (3517mi, 43°)
MT256 (6mi, 80°) 3500ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BEDA1GOPFIXleft68 (248)°4300ft - 13000ft1.0min timed240
BEDA1HKTFIXright68 (248)°3100ft - 13000ft1.0min timed240
BEDA1JOVHFleft350 (170)°1900ft - 10000ft1.0min timedICAO rules
BEDA1KKFIXright79 (259)°8000ft - 10000ft1.0min timedICAO rules
BEDA1LMT076VHFleft2 (182)°3700ft - 13000ft1.0min timed210
BEDA1MMT254VHFleft192 (12)°2500ft - 13000ft1.0min timed210
BEDA1SSTWNDBleft72 (252)°> 3100ft1.0min timed240
DIPO1GOPFIXleft68 (248)°4300ft - 13000ft1.0min timed240
DIPO1HKTFIXright68 (248)°3100ft - 13000ft1.0min timed240
DIPO1JOVHFleft350 (170)°1900ft - 10000ft1.0min timedICAO rules
DIPO1KKFIXright79 (259)°8000ft - 10000ft1.0min timedICAO rules
DIPO1LMT076VHFleft2 (182)°3700ft - 13000ft1.0min timed210
DIPO1MMT253VHFright68 (248)°2500ft - 13000ft1.0min timed210
DIPO1SSTWNDBleft72 (252)°> 3100ft1.0min timed240
GIRT1GOPFIXleft68 (248)°4300ft - 13000ft1.0min timed240
GIRT1HKTFIXright68 (248)°3100ft - 13000ft1.0min timed240
GIRT1JOVHFleft350 (170)°1900ft - 10000ft1.0min timedICAO rules
GIRT1KKFIXright79 (259)°8000ft - 10000ft1.0min timedICAO rules
GIRT1LMT076VHFleft2 (182)°3700ft - 13000ft1.0min timed210
GIRT1MMT254VHFleft192 (12)°2500ft - 13000ft1.0min timed210
GIRT1SSTWNDBleft72 (252)°> 3100ft1.0min timed240
LEGN1GOPFIXleft68 (248)°4300ft - 13000ft1.0min timed240
LEGN1HKTFIXright68 (248)°3100ft - 13000ft1.0min timed240
LEGN1JOVHFleft350 (170)°1900ft - 10000ft1.0min timedICAO rules
LEGN1KKFIXright79 (259)°8000ft - 10000ft1.0min timedICAO rules
LEGN1LMT076VHFleft2 (182)°3700ft - 13000ft1.0min timed210
LEGN1MMT256VHFright310 (130)°2300ft - 13000ft1.0min timed210
LEGN1QMT254VHFleft192 (12)°2500ft - 13000ft1.0min timed210
LEGN1SSTWNDBleft72 (252)°> 3100ft1.0min timed240
NEPA1GOPFIXleft68 (248)°4300ft - 13000ft1.0min timed240
NEPA1HKTFIXright68 (248)°3100ft - 13000ft1.0min timed240
NEPA1JOVHFleft350 (170)°1900ft - 10000ft1.0min timedICAO rules
NEPA1KKFIXright79 (259)°8000ft - 10000ft1.0min timedICAO rules
NEPA1LMT076VHFleft2 (182)°3700ft - 13000ft1.0min timed210
NEPA1MMT256VHFright310 (130)°2300ft - 13000ft1.0min timed210
NEPA1SSTWNDBleft72 (252)°> 3100ft1.0min timed240
NETM1GOPFIXleft68 (248)°4300ft - 13000ft1.0min timed240
NETM1HKTFIXright68 (248)°3100ft - 13000ft1.0min timed240
NETM1JOVHFleft350 (170)°1900ft - 10000ft1.0min timedICAO rules
NETM1KKFIXright79 (259)°8000ft - 10000ft1.0min timedICAO rules
NETM1LMT076VHFleft2 (182)°3700ft - 13000ft1.0min timed210
NETM1MMT256VHFright310 (130)°2300ft - 13000ft1.0min timed210
NETM1QMT254VHFleft192 (12)°2500ft - 13000ft1.0min timed210
NETM1SSTWNDBleft72 (252)°> 3100ft1.0min timed240
PARA1GOPFIXleft68 (248)°4300ft - 13000ft1.0min timed240
PARA1HKTFIXright68 (248)°3100ft - 13000ft1.0min timed240
PARA1JOVHFleft350 (170)°1900ft - 10000ft1.0min timedICAO rules
PARA1KKFIXright79 (259)°8000ft - 10000ft1.0min timedICAO rules
PARA1LMT076VHFleft2 (182)°3700ft - 13000ft1.0min timed210
PARA1MMT256VHFright310 (130)°2300ft - 13000ft1.0min timed210
PARA1QMT254VHFleft192 (12)°2500ft - 13000ft1.0min timed210
PARA1SSTWNDBleft72 (252)°> 3100ft1.0min timed240
PETU1GOPFIXleft68 (248)°4300ft - 13000ft1.0min timed240
PETU1HKTFIXright68 (248)°3100ft - 13000ft1.0min timed240
PETU1JOVHFleft350 (170)°1900ft - 10000ft1.0min timedICAO rules
PETU1KKFIXright79 (259)°8000ft - 10000ft1.0min timedICAO rules
PETU1LMT076VHFleft2 (182)°3700ft - 13000ft1.0min timed210
PETU1MMT253VHFright68 (248)°2500ft - 13000ft1.0min timed210
PETU1SSTWNDBleft72 (252)°> 3100ft1.0min timed240
RUGI1GOPFIXleft68 (248)°4300ft - 13000ft1.0min timed240
RUGI1HKTFIXright68 (248)°3100ft - 13000ft1.0min timed240
RUGI1JOVHFleft350 (170)°1900ft - 10000ft1.0min timedICAO rules
RUGI1KKFIXright79 (259)°8000ft - 10000ft1.0min timedICAO rules
RUGI1LMT076VHFleft2 (182)°3700ft - 13000ft1.0min timed210
RUGI1MMT254VHFleft192 (12)°2500ft - 13000ft1.0min timed210
RUGI1SSTWNDBleft72 (252)°> 3100ft1.0min timed240
*) magnetic outbound (inbound) holding course
