Airports for X-Plane

Kaluga

Airport details

CountryRussian Federation
StateKaluga Oblast
RegionUU
AirspaceMoscow Ctr
MunicipalityKaluga
Elevation666ft (203m)
TimezoneGMT +3
Coordinates54.54839, 36.36693
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeUUBC
IATA codeKLF
FAA coden/a

Communication

Kaluga ATIS126.800
Kaluga Tower120.300

Approach frequencies

ILS-cat-IRW31111.718.00mi
3° GSRW31111.718.00mi

Runway info

Runway 13 / 31
 length2196m (7205ft)
 bearing129° / 309°
 width45m (148ft)
 surfaceasphalt

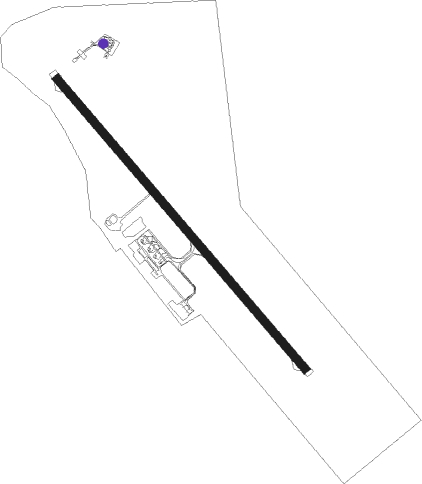

Airport layout - parking location Helo


Taxiway locations

 A  B
Parking locations

 Helo  Stand

Nearby beacons

codeidentifierdistbearingfrequency
KLGKALUGA VOR/DME0.238°114
WIGRABTSEVO (KALUGA) NDB1.1316°286
FRGRABTSEVO (KALUGA) NDB1.2123°286
INSUKHOTINO NDB33.486°10.550
WZKAMENKA NDB45.843°230
IKMDME45.943°111.60
DRSKURYGINO NDB52.656°415
GDMALOYE SKURATOVO NDB63.3145°975
KUDME63.3145°115.20

Departure and arrival routes

Transition altitude2635ft
SID end pointsdistanceoutbound heading
RW13
 OTPA1L, OTPA1F, OTPA1D34mi147°
 OBAR1D, OBAR1F, OBAR1L, OBAR1N33mi242°
 BAMD1D, BAMD1F, BAMD1L28mi279°
RW31
 OTPA1H, OTPA1G, OTPA1M34mi147°
 OBAR1M, OBAR1H, OBAR1G33mi242°
 BAMD1M, BAMD1G, BAMD1H28mi279°

STAR starting pointsdistanceinbound heading
ALL
 OBAR1A32.562°
 BAMD1A27.899°
 GITI1A13.0135°
 SOTO1A14.7237°
 OTPA1A34.4327°
RW13
 OBAR1E, OBAR1B32.562°
 BAMD1B, BAMD1E27.899°
 GITI1E, GITI1B13.0135°
 SOTO1E, SOTO1B14.7237°
 OTPA1E, OTPA1B34.4327°
RW31
 OBAR1K, OBAR1C32.562°
 BAMD1C, BAMD1K27.899°
 GITI1K, GITI1C13.0135°
 SOTO1K, SOTO1C14.7237°
 OTPA1K, OTPA1C34.4327°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW13BC513 (175°)BC513 2500ft
BC413 (6mi, 247°) 2000ft
RW13BC613 (113°)BC613 2500ft
BC413 (5mi, 89°) 2000ft
 RNAVBC413 2000ft
BC213 (5mi, 128°) 2000ft
UUBC (5mi, 130°) 716ft
(3733mi, 214°) 1070ft
BC014 (3732mi, 34°)
BC813 (8mi, 24°) 2200ft
BC513 (10mi, 309°) 2500ft
RW31BC431 (348°)BC431 2300ft
BC331 (6mi, 67°) 2000ft
RW31BC631 (284°)BC631 2300ft
BC331 (6mi, 247°) 2000ft
RW31BC831 (308°)BC831 2300ft
BC331 (6mi, 309°) 2000ft
 RNAVBC331 2000ft
BC231 (6mi, 309°) 2000ft
SDF31 (2mi, 308°) 1300ft
UUBC (3mi, 306°) 671ft
(3733mi, 214°) 1070ft
BC034 (3734mi, 34°)
BC913 (11mi, 101°) 2100ft
BC631 (5mi, 129°) 2300ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BAMD1AKLGNDBright134 (314)°> 2300ft1.0min timed230
BAMD1BWIFIXright134 (314)°> 2300ft1.0min timed230
BAMD1CFRFIXright134 (314)°> 2300ft1.0min timed230
GITI1AKLGNDBright134 (314)°> 2300ft1.0min timed230
GITI1BWIFIXright134 (314)°> 2300ft1.0min timed230
GITI1CFRFIXright134 (314)°> 2300ft1.0min timed230
GITI1EBC813VHFright134 (314)°> 2200ft1.0min timed230
GITI1KBC913VHFleft314 (134)°> 2100ft1.0min timed230
OBAR1AKLGNDBright134 (314)°> 2300ft1.0min timed230
OBAR1BWIFIXright134 (314)°> 2300ft1.0min timed230
OBAR1CFRFIXright134 (314)°> 2300ft1.0min timed230
OTPA1AKLGNDBright134 (314)°> 2300ft1.0min timed230
OTPA1BWIFIXright134 (314)°> 2300ft1.0min timed230
OTPA1CFRFIXright134 (314)°> 2300ft1.0min timed230
OTPA1EBC813VHFright134 (314)°> 2200ft1.0min timed230
SOTO1AKLGNDBright134 (314)°> 2300ft1.0min timed230
SOTO1BWIFIXright134 (314)°> 2300ft1.0min timed230
SOTO1CFRFIXright134 (314)°> 2300ft1.0min timed230
SOTO1EBC813VHFright134 (314)°> 2200ft1.0min timed230
SOTO1KBC913VHFleft314 (134)°> 2100ft1.0min timed230
*) magnetic outbound (inbound) holding course
