Airports for X-Plane

Moscow - Domodedovo Intl

Airport details

CountryRussian Federation
StateMoscow Oblast
RegionUU
AirspaceMoscow Ctr
MunicipalityDomodedovsky District
Elevation592ft (180m)
TimezoneGMT +3
Coordinates55.41906, 37.88273
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeUUDD
IATA codeDME
FAA coden/a

Communication

Domodedovo Intl ATIS128.300
Domodedovo Intl CLD129.150
Domodedovo Intl Ground Control119.000
Domodedovo Intl Tower1118.600
Domodedovo Intl Tower2119.700
Domodedovo Intl Approach127.700
Domodedovo Intl Departure132.050

Approach frequencies

ILS-cat-IIIRW14R110.118.00mi
ILS-cat-IRW32L109.318.00mi
3° GSRW14R110.118.00mi
3° GSRW32L109.318.00mi
Nearby Points of Interest:
Exaltation of the Cross Jerusalem Monastery
-
Gosfilmofond of Russia
-
Saint Nicholas Church, Ermolino
-
Old Believers churches (Mikhailovskaya Sloboda)
-
Church of the Theotokos of the Sign in Zakharino
-
Holy Trinity Church
-
Church of Holy Trinity, Troitskoye, Chekhov District, Moscow Oblast
-
Church of Saints Peter and Paul in Yasenevo
-
Polivanovo
-
Vlakhernskoye-Kuzminki
-
Church of the Theotokos of Blachernae in Kuzminki
-
Palace Pavilion in Kolomenskoe
-
Durasov Theatre
-
Lyublino Park
-
Lyublinsky Pond

Runway info

Runway 14 / 32
 length3800m (12467ft)
 bearing130° / 310°
 width60m (197ft)
 surfaceconcrete
Runway 14L / 32R
 length2366m (7762ft)
 bearing130° / 310°
 width53m (174ft)
 surfaceconcrete
Runway 14R / 32L
 length3494m (11463ft)
 bearing130° / 310°
 width60m (197ft)
 surfaceconcrete

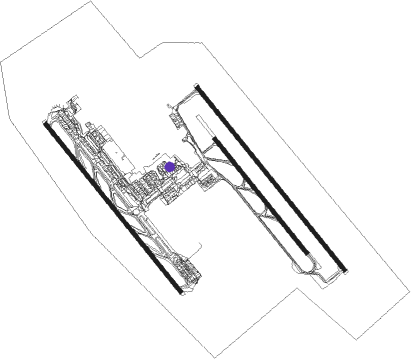

Airport layout - parking location 14


Taxiway locations

 A11  A12  A2  A4  A5  A6  A7  A8
 A9  B1  B11  B2  B3  B4  B5  B6
 B7  B8  H1  H2  M  P4  P6  P9
 T1  T2
Parking locations

 1  10  11  112  114  115  116  117
 118  119  12  120  121  122  123  124
 125  126  127  128  12A  13  130  14
 15  16  17  18  18B  18C  19  2
 3  33B  35  36  36A  37  38  4
 41  41A  42A  5  52  53  54  6
 60  60A  60B1  61  62  62A  62B  63
 64  65  66  67A  68  68A  69  69A
 7  70  70A  71  71A  72  72A  74
 74A  75  76  76A  77  77A  78  8
 81  82  83  84  85  86A  87  88
 89  9  90  91  92  92A  94  95
 95A  96  C10  C11  C12  C13  C14  C15
 C16  C18  C2  C4  C6  C7  C9  G10
 G11  G12  G13  G15  G16  G16C  G2  G3
 G4  G5  G6  G7  G8  M1  M10  M12
 M14  M16  M17  M18  M19  M20  M21  M22
 M3  M4  M6  M7  M9  Ramp  S1  S11
 S12  S13  S2  S3

Nearby beacons

codeidentifierdistbearingfrequency
DMDOMODEDOVO (MOSCOW) NDB0.8296°320
DMDDOMODEDOVO (MOSCOW) VOR/DME2137°113.30
DODOMODEDOVO (MOSCOW) NDB2.2136°659
LPDME9.549°109.20
WTKARTINO NDB10.7330°12.150
PSOSTAFYEVO (OSTAVYEVO) NDB11.6287°625
DRAMENSKOYE NDB1257°11.850
RTRAMENSKOYE VOR/DME12.165°117.90
DMRAMENSKOYE NDB12.441°581
RRAMENSKOYE NDB12.570°760
LOKLIMOVSK NDB12.8259°10.050
POSTAFYEVO (OSTAVYEVO) NDB13.1284°305
RTRAMENSKOYE NDB13.176°370
NOSTAFYEVO NDB14.8282°305
DKGLOTAYEVO NDB15.6198°
GLWDME15.6198°113.50
NWOSTAFYEVO NDB16281°625
AOAKSINYINO NDB21.1123°732
MRNDME21.150°112.50
RWMARYINO NDB21.150°493
DRSKURYGINO NDB21.6248°415
OBVNUKOVO (MOSCOW) NDB22.4288°852
OEVNUKOVO (MOSCOW) NDB23.5284°949
SXVNUKOVO (MOSCOW) NDB23.6288°914
WNKVNUKOVO VOR/DME23.6285°113.70
GTVNUKOVO (MOSCOW) NDB24.4284°294
BPCHELOBITYEVO NDB29.7336°680
KSOPALIKHA NDB32304°565
OPHDME-ILS32304°109.70
IKMDME32.5257°111.60
WZKAMENKA NDB32.5257°230
BWSHEREMETYEVO (MOSCOW) NDB36.2326°380
ADSHEREMETYEVO (MOSCOW) NDB36.4326°700
BSHEREMETYEVO (MOSCOW) NDB36.4323°770
ASHEREMETYEVO (MOSCOW) NDB36.6323°338
NSHEREMETYEVO (MOSCOW) NDB37317°770
MSHEREMETYEVO (MOSCOW) NDB37.1317°338
NLSHEREMETYEVO (MOSCOW) NDB37.4314°380
MRSHEREMETYEVO (MOSCOW) NDB37.6314°700
ERSHEREMETYEVO NDB38.1319°794
MRSHEREMETYEVO (MOSCOW) VOR/DME38.5315°114.60
UMIVANOVSKOYE NDB42.3295°405
INSUKHOTINO NDB52.3215°10.550
IKODME53.3349°113.20
KNKOSTINO NDB53.3349°642
SWSAVELOVO NDB58.9335°12.850
SWODME58.9335°111.80

Departure and arrival routes

Transition altitude3947ft
SID end pointsdistanceoutbound heading
RW14C
 RILP4M88mi15°
 OLMU4M69mi68°
 KOGO4M70mi72°
 TOGM4M73mi132°
 LINR4M66mi162°
 SOTO4M59mi241°
 POKA4M80mi275°
 SUNU4M74mi293°
RW14L
 RILP4M88mi15°
 OLMU4M69mi68°
 KOGO4M70mi72°
 TOGM4M73mi132°
 LINR4M66mi162°
 SOTO4M59mi241°
 POKA4M80mi275°
 SUNU4M74mi293°
RW14R
 RILP4T, RILP4S88mi15°
 OLMU4S69mi68°
 KOGO4S70mi72°
 TOGM4S73mi132°
 LINR4S66mi162°
 SOTO4S59mi241°
 POKA4L, POKA4S80mi275°
 SUNU4T, SUNU4S, SUNU4L74mi293°
RW32C
 RILP4N88mi15°
 OLMU4N69mi68°
 KOGO4N70mi72°
 TOGM4N73mi132°
 LINR4N66mi162°
 SOTO4N59mi241°
 POKA4N80mi275°
 SUNU4N74mi293°
RW32L
 RILP4R, RILP4Q88mi15°
 OLMU4Q69mi68°
 KOGO4Q70mi72°
 TOGM4Q73mi132°
 LINR4Q66mi162°
 SOTO4P, SOTO4Q59mi241°
 POKA4P, POKA4Q80mi275°
 SUNU4R, SUNU4Q, SUNU4P74mi293°
RW32R
 RILP4N88mi15°
 OLMU4N69mi68°
 KOGO4N70mi72°
 TOGM4N73mi132°
 LINR4N66mi162°
 SOTO4N59mi241°
 POKA4N80mi275°
 SUNU4N74mi293°

STAR starting pointsdistanceinbound heading
ALL
 TENR3L, TENR3N53.824°
 BILR3L, BILR3N78.789°
 ESOL3N, ESOL3L88.6149°
 ROMT3L, ROMT3N101.5174°
 URAG3P, URAG3N, URAG3M, URAG3L72.4266°
 OLOP3L, OLOP3N79.4319°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW14CYALBOR (321°)ALBOR
SAZDU (6mi, 15°)
TOSLA (6mi, 14°)
BIMME (9mi, 310°)
ANKAZ (6mi, 310°)
OZFUR (6mi, 309°) 4000ft
ETDAR (4mi, 249°) 3000ft
LIZHI (3mi, 131°) 2500ft
RW14CYPEREK (207°)PEREK 6000ft
GEKLA (5mi, 258°)
ETDAR (7mi, 240°) 3000ft
LIZHI (3mi, 131°) 2500ft
 RNAVLIZHI 2500ft
DD141 (3mi, 130°) 2000ft
UUDD (4mi, 145°) 594ft
(3807mi, 214°) 1300ft
DD712 (3808mi, 35°) 3000ft
PEFOS (5mi, 130°)
NIDBE (5mi, 130°)
IZVOK (4mi, 131°) 5000ft
DD047 (8mi, 249°) 5000ft
ALBOR (9mi, 310°)
RW14CZALBOR (321°)ALBOR
SAZDU (6mi, 15°)
TOSLA (6mi, 14°)
BIMME (9mi, 310°)
DEZAP (5mi, 253°) 4000ft
KETFI (7mi, 279°) 4000ft
NIZVO (6mi, 311°) 4000ft
ETDAR (5mi, 69°) 3000ft
LIZHI (3mi, 131°) 2500ft
 RNAVLIZHI 2500ft
DD141 (3mi, 130°) 2000ft
UUDD (4mi, 145°) 594ft
(3807mi, 214°) 1300ft
DD712 (3808mi, 35°) 3000ft
PEFOS (5mi, 130°)
NIDBE (5mi, 130°)
IZVOK (4mi, 131°) 5000ft
DD047 (8mi, 249°) 5000ft
ALBOR (9mi, 310°)
RW14LYALBOR (321°)ALBOR
SAZDU (6mi, 15°)
TOSLA (6mi, 14°)
BIMME (9mi, 310°)
ANKAZ (6mi, 310°) 4000ft
OZFUR (6mi, 309°) 4000ft
DD072 (4mi, 249°) 3000ft
DD071 (3mi, 130°) 2500ft
RW14LYPEREK (207°)PEREK 6000ft
GEKLA (5mi, 258°)
DD072 (7mi, 240°) 3000ft
DD071 (3mi, 130°) 2500ft
 RNAVDD071 2500ft
DD070 (3mi, 130°) 2000ft
UUDD (4mi, 146°) 593ft
(3807mi, 214°) 1300ft
DD712 (3808mi, 35°) 3000ft
PEFOS (5mi, 130°)
NIDBE (5mi, 130°)
IZVOK (4mi, 131°) 5000ft
DD047 (8mi, 249°) 5000ft
ALBOR (9mi, 310°)
RW14LZALBOR (321°)ALBOR
SAZDU (6mi, 15°)
TOSLA (6mi, 14°)
BIMME (9mi, 310°)
DEZAP (5mi, 253°) 4000ft
KETFI (7mi, 279°) 4000ft
NIZVO (6mi, 311°) 4000ft
DD072 (5mi, 69°) 3000ft
DD071 (3mi, 130°) 2500ft
 RNAVDD071 2500ft
DD070 (3mi, 130°) 2000ft
UUDD (4mi, 146°) 593ft
(3807mi, 214°) 1300ft
DD712 (3808mi, 35°) 3000ft
PEFOS (5mi, 130°)
NIDBE (5mi, 130°)
IZVOK (4mi, 131°) 5000ft
DD047 (8mi, 249°) 5000ft
ALBOR (9mi, 310°)
RW14RYALBOR (321°)ALBOR
SAZDU (6mi, 15°)
TOSLA (6mi, 14°)
BIMME (9mi, 310°)
ANKAZ (6mi, 310°)
OZFUR (6mi, 309°) 4000ft
DUPIZ (5mi, 249°) 3000ft
KATEZ (3mi, 130°) 2500ft
RW14RYPEREK (207°)PEREK 6000ft
GEKLA (5mi, 258°)
DUPIZ (8mi, 242°) 3000ft
KATEZ (3mi, 130°) 2500ft
 RNAVKATEZ 2500ft
DD144 (3mi, 130°) 2000ft
UUDD (5mi, 127°) 643ft
(3807mi, 214°) 1300ft
DK (3794mi, 34°) 3000ft
GUFUZ (16mi, 138°) 5000ft
DD046 (8mi, 77°) 5000ft
ALBOR (9mi, 328°)
RW14RZALBOR (321°)ALBOR
SAZDU (6mi, 15°)
TOSLA (6mi, 14°)
BIMME (9mi, 310°)
DEZAP (5mi, 253°) 4000ft
KETFI (7mi, 279°) 4000ft
NIZVO (6mi, 311°) 4000ft
DUPIZ (4mi, 69°) 3000ft
KATEZ (3mi, 130°) 2500ft
 RNAVKATEZ 2500ft
DD144 (3mi, 130°) 2000ft
UUDD (5mi, 127°) 643ft
(3807mi, 214°) 1300ft
DK (3794mi, 34°) 3000ft
GUFUZ (16mi, 138°) 5000ft
DD046 (8mi, 77°) 5000ft
ALBOR (9mi, 328°)
RW32CALBOR (321°)ALBOR 5000ft
ODVUV (8mi, 355°) 4000ft
 RNAVODVUV 3000ft
DD341 (3mi, 310°) 3000ft
UUDD (10mi, 305°) 574ft
(3807mi, 214°) 1200ft
DD712 (3808mi, 35°) 3000ft
PEFOS (5mi, 130°)
NIDBE (5mi, 130°)
IZVOK (4mi, 131°) 5000ft
DD047 (8mi, 249°) 5000ft
ALBOR (9mi, 310°) 5000ft
RW32LALBOR (321°)ALBOR 5000ft
IFUTU (7mi, 342°) 4000ft
 RNAVIFUTU 3000ft
DD347 (4mi, 310°) 3000ft
16THR (6mi, 310°) 1100ft
UUDD (3mi, 314°) 588ft
(3807mi, 214°) 1200ft
DK (3794mi, 34°) 3000ft
GUFUZ (16mi, 138°) 5000ft
DD046 (8mi, 77°) 5000ft
ALBOR (9mi, 328°) 5000ft
RW32RALBOR (321°)ALBOR 5000ft
DD324 (8mi, 359°) 4000ft
 RNAVDD324 3000ft
DD335 (3mi, 310°) 3000ft
UUDD (10mi, 304°) 573ft
(3807mi, 214°) 1200ft
DD712 (3808mi, 35°) 3000ft
PEFOS (5mi, 130°)
NIDBE (5mi, 130°)
IZVOK (4mi, 131°) 5000ft
DD047 (8mi, 249°) 5000ft
ALBOR (9mi, 310°) 5000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BILR3LALBORVHFleft127 (307)°3000ft - 9000ft1.0min timedICAO rules
BILR3LNIDBEVHFright315 (135)°8000ft - 10000ft1.0min timedICAO rules
BILR3LNUKDIVHFleft253 (73)°23000ft - 27000ft1.5min timedICAO rules
BILR3LPREKIVHFright271 (91)°21000ft - 25000ft1.5min timedICAO rules
BILR3NALBORVHFleft127 (307)°3000ft - 9000ft1.0min timedICAO rules
BILR3NNIDBEVHFright315 (135)°8000ft - 10000ft1.0min timedICAO rules
BILR3NNUKDIVHFleft253 (73)°23000ft - 27000ft1.5min timedICAO rules
BILR3NPREKIVHFright271 (91)°21000ft - 25000ft1.5min timedICAO rules
ESOL3LALBORVHFleft127 (307)°3000ft - 9000ft1.0min timedICAO rules
ESOL3LKUPVEVHFright313 (133)°8000ft - 9000ft1.0min timedICAO rules
ESOL3LRATKEVHFright351 (171)°21000ft - 25000ft1.5min timedICAO rules
ESOL3LSUBODVHFright10 (190)°21000ft - 27000ft1.5min timedICAO rules
ESOL3NALBORVHFleft127 (307)°3000ft - 9000ft1.0min timedICAO rules
ESOL3NKUPVEVHFright313 (133)°8000ft - 9000ft1.0min timedICAO rules
ESOL3NNIDBEVHFright315 (135)°8000ft - 10000ft1.0min timedICAO rules
ESOL3NRATKEVHFright351 (171)°21000ft - 25000ft1.5min timedICAO rules
ESOL3NSUBODVHFright10 (190)°21000ft - 27000ft1.5min timedICAO rules
OLOP3LALBORVHFleft127 (307)°3000ft - 9000ft1.0min timedICAO rules
OLOP3LOKPENVHFleft142 (322)°7000ft - 10000ft1.0min timedICAO rules
OLOP3LRIFMAVHFleft143 (323)°25000ft - 28000ft1.5min timedICAO rules
OLOP3NALBORVHFleft127 (307)°3000ft - 9000ft1.0min timedICAO rules
OLOP3NOKPENVHFleft142 (322)°7000ft - 10000ft1.0min timedICAO rules
OLOP3NRIFMAVHFleft143 (323)°25000ft - 28000ft1.5min timedICAO rules
ROMT3LALBORVHFleft127 (307)°3000ft - 9000ft1.0min timedICAO rules
ROMT3LFILZIVHFright352 (172)°25000ft - 28000ft1.5min timedICAO rules
ROMT3LKUPVEVHFright313 (133)°8000ft - 9000ft1.0min timedICAO rules
ROMT3LRATKEVHFright351 (171)°21000ft - 25000ft1.5min timedICAO rules
ROMT3NALBORVHFleft127 (307)°3000ft - 9000ft1.0min timedICAO rules
ROMT3NFILZIVHFright352 (172)°25000ft - 28000ft1.5min timedICAO rules
ROMT3NKUPVEVHFright313 (133)°8000ft - 9000ft1.0min timedICAO rules
ROMT3NNIDBEVHFright315 (135)°8000ft - 10000ft1.0min timedICAO rules
ROMT3NRATKEVHFright351 (171)°21000ft - 25000ft1.5min timedICAO rules
TENR3LALBORVHFleft127 (307)°3000ft - 9000ft1.0min timedICAO rules
TENR3NALBORVHFleft127 (307)°3000ft - 9000ft1.0min timedICAO rules
TENR3NRINLOVHFright237 (57)°6000ft - 10000ft1.0min timedICAO rules
URAG3LALBORVHFleft127 (307)°3000ft - 9000ft1.0min timedICAO rules
URAG3LKORFIVHFright85 (265)°17000ft - 20000ft1.5min timedICAO rules
URAG3LKUPVEVHFright313 (133)°8000ft - 9000ft1.0min timedICAO rules
URAG3LORVOZVHFright85 (265)°11000ft - 24000ft1.5min timedICAO rules
URAG3MALBORVHFleft127 (307)°3000ft - 9000ft1.0min timedICAO rules
URAG3MORVOZVHFright85 (265)°11000ft - 24000ft1.5min timedICAO rules
URAG3NALBORVHFleft127 (307)°3000ft - 9000ft1.0min timedICAO rules
URAG3NKORFIVHFright85 (265)°17000ft - 20000ft1.5min timedICAO rules
URAG3NKUPVEVHFright313 (133)°8000ft - 9000ft1.0min timedICAO rules
URAG3NNIDBEVHFright315 (135)°8000ft - 10000ft1.0min timedICAO rules
URAG3NORVOZVHFright85 (265)°11000ft - 24000ft1.5min timedICAO rules
URAG3PORVOZVHFright85 (265)°11000ft - 24000ft1.5min timedICAO rules
URAG3PPEREKVHFright101 (281)°3000ft - 6000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
