Airports4XP | UUDD | Moscow

Moscow - Domodedovo Intl

Airport details

Country	Russian Federation
State	Moscow Oblast
Region	UU
Airspace	Moscow Ctr
Municipality	Domodedovsky District
Elevation	592ft (180m)
Timezone	GMT +3
Coordinates	55.41906, 37.88273
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	UUDD
IATA code	DME
FAA code	n/a

Communication

Domodedovo Intl ATIS	128.300
Domodedovo Intl CLD	129.150
Domodedovo Intl Ground Control	119.000
Domodedovo Intl Tower1	118.600
Domodedovo Intl Tower2	119.700
Domodedovo Intl Approach	127.700
Domodedovo Intl Departure	132.050

Approach frequencies

ILS-cat-III	RW14R	110.1	18.00mi
ILS-cat-I	RW32L	109.3	18.00mi
3° GS	RW14R	110.1	18.00mi
3° GS	RW32L	109.3	18.00mi

Nearby Points of Interest:

Exaltation of the Cross Jerusalem Monastery

Gosfilmofond of Russia

Saint Nicholas Church, Ermolino

Old Believers churches (Mikhailovskaya Sloboda)

Church of the Theotokos of the Sign in Zakharino

Holy Trinity Church

Church of Holy Trinity, Troitskoye, Chekhov District, Moscow Oblast

Church of Saints Peter and Paul in Yasenevo

Polivanovo

Vlakhernskoye-Kuzminki

Church of the Theotokos of Blachernae in Kuzminki

Palace Pavilion in Kolomenskoe

Durasov Theatre

Lyublino Park

Lyublinsky Pond

Runway info

Runway 14 / 32
	length	3800m (12467ft)
	bearing	130° / 310°
	width	60m (197ft)
	surface	concrete
Runway 14L / 32R
	length	2366m (7762ft)
	bearing	130° / 310°
	width	53m (174ft)
	surface	concrete
Runway 14R / 32L
	length	3494m (11463ft)
	bearing	130° / 310°
	width	60m (197ft)
	surface	concrete

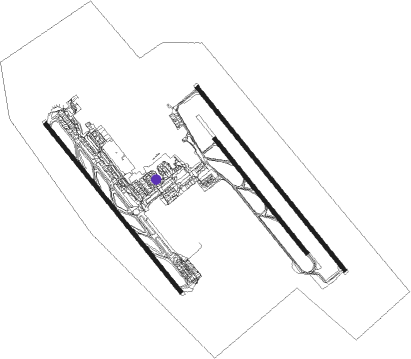

Airport layout - parking location 4

Taxiway locations

A11	A12	A2	A4	A5	A6	A7	A8
A9	B1	B11	B2	B3	B4	B5	B6
B7	B8	H1	H2	M	P4	P6	P9
T1	T2

Parking locations

1	10	11	112	114	115	116	117
118	119	12	120	121	122	123	124
125	126	127	128	12A	13	130	14
15	16	17	18	18B	18C	19	2
3	33B	35	36	36A	37	38	4
41	41A	42A	5	52	53	54	6
60	60A	60B1	61	62	62A	62B	63
64	65	66	67A	68	68A	69	69A
7	70	70A	71	71A	72	72A	74
74A	75	76	76A	77	77A	78	8
81	82	83	84	85	86A	87	88
89	9	90	91	92	92A	94	95
95A	96	C10	C11	C12	C13	C14	C15
C16	C18	C2	C4	C6	C7	C9	G10
G11	G12	G13	G15	G16	G16C	G2	G3
G4	G5	G6	G7	G8	M1	M10	M12
M14	M16	M17	M18	M19	M20	M21	M22
M3	M4	M6	M7	M9	Ramp	S1	S11
S12	S13	S2	S3

Nearby beacons

code	identifier	dist	bearing	frequency
DM	DOMODEDOVO (MOSCOW) NDB	0.8	296°	320
DMD	DOMODEDOVO (MOSCOW) VOR/DME	2	137°	113.30
DO	DOMODEDOVO (MOSCOW) NDB	2.2	136°	659
LP	DME	9.5	49°	109.20
WT	KARTINO NDB	10.7	330°	12.150
PS	OSTAFYEVO (OSTAVYEVO) NDB	11.6	287°	625
D	RAMENSKOYE NDB	12	57°	11.850
RT	RAMENSKOYE VOR/DME	12.1	65°	117.90
DM	RAMENSKOYE NDB	12.4	41°	581
R	RAMENSKOYE NDB	12.5	70°	760
LO	KLIMOVSK NDB	12.8	259°	10.050
P	OSTAFYEVO (OSTAVYEVO) NDB	13.1	284°	305
RT	RAMENSKOYE NDB	13.1	76°	370
N	OSTAFYEVO NDB	14.8	282°	305
DK	GLOTAYEVO NDB	15.6	198°
GLW	DME	15.6	198°	113.50
NW	OSTAFYEVO NDB	16	281°	625
AO	AKSINYINO NDB	21.1	123°	732
MRN	DME	21.1	50°	112.50
RW	MARYINO NDB	21.1	50°	493
DR	SKURYGINO NDB	21.6	248°	415
OB	VNUKOVO (MOSCOW) NDB	22.4	288°	852
OE	VNUKOVO (MOSCOW) NDB	23.5	284°	949
SX	VNUKOVO (MOSCOW) NDB	23.6	288°	914
WNK	VNUKOVO VOR/DME	23.6	285°	113.70
GT	VNUKOVO (MOSCOW) NDB	24.4	284°	294
BP	CHELOBITYEVO NDB	29.7	336°	680
KS	OPALIKHA NDB	32	304°	565
OPH	DME-ILS	32	304°	109.70
IKM	DME	32.5	257°	111.60
WZ	KAMENKA NDB	32.5	257°	230
BW	SHEREMETYEVO (MOSCOW) NDB	36.2	326°	380
AD	SHEREMETYEVO (MOSCOW) NDB	36.4	326°	700
B	SHEREMETYEVO (MOSCOW) NDB	36.4	323°	770
A	SHEREMETYEVO (MOSCOW) NDB	36.6	323°	338
N	SHEREMETYEVO (MOSCOW) NDB	37	317°	770
M	SHEREMETYEVO (MOSCOW) NDB	37.1	317°	338
NL	SHEREMETYEVO (MOSCOW) NDB	37.4	314°	380
MR	SHEREMETYEVO (MOSCOW) NDB	37.6	314°	700
ER	SHEREMETYEVO NDB	38.1	319°	794
MR	SHEREMETYEVO (MOSCOW) VOR/DME	38.5	315°	114.60
UM	IVANOVSKOYE NDB	42.3	295°	405
IN	SUKHOTINO NDB	52.3	215°	10.550
IKO	DME	53.3	349°	113.20
KN	KOSTINO NDB	53.3	349°	642
SW	SAVELOVO NDB	58.9	335°	12.850
SWO	DME	58.9	335°	111.80

Departure and arrival routes

Transition altitude

3947ft

SID end points		distance	outbound heading
RW14C
	RILP4M	88mi	15°
	OLMU4M	69mi	68°
	KOGO4M	70mi	72°
	TOGM4M	73mi	132°
	LINR4M	66mi	162°
	SOTO4M	59mi	241°
	POKA4M	80mi	275°
	SUNU4M	74mi	293°
RW14L
	RILP4M	88mi	15°
	OLMU4M	69mi	68°
	KOGO4M	70mi	72°
	TOGM4M	73mi	132°
	LINR4M	66mi	162°
	SOTO4M	59mi	241°
	POKA4M	80mi	275°
	SUNU4M	74mi	293°
RW14R
	RILP4T, RILP4S	88mi	15°
	OLMU4S	69mi	68°
	KOGO4S	70mi	72°
	TOGM4S	73mi	132°
	LINR4S	66mi	162°
	SOTO4S	59mi	241°
	POKA4L, POKA4S	80mi	275°
	SUNU4T, SUNU4S, SUNU4L	74mi	293°
RW32C
	RILP4N	88mi	15°
	OLMU4N	69mi	68°
	KOGO4N	70mi	72°
	TOGM4N	73mi	132°
	LINR4N	66mi	162°
	SOTO4N	59mi	241°
	POKA4N	80mi	275°
	SUNU4N	74mi	293°
RW32L
	RILP4R, RILP4Q	88mi	15°
	OLMU4Q	69mi	68°
	KOGO4Q	70mi	72°
	TOGM4Q	73mi	132°
	LINR4Q	66mi	162°
	SOTO4P, SOTO4Q	59mi	241°
	POKA4P, POKA4Q	80mi	275°
	SUNU4R, SUNU4Q, SUNU4P	74mi	293°
RW32R
	RILP4N	88mi	15°
	OLMU4N	69mi	68°
	KOGO4N	70mi	72°
	TOGM4N	73mi	132°
	LINR4N	66mi	162°
	SOTO4N	59mi	241°
	POKA4N	80mi	275°
	SUNU4N	74mi	293°

STAR starting points		distance	inbound heading
ALL
	TENR3L, TENR3N	53.8	24°
	BILR3L, BILR3N	78.7	89°
	ESOL3N, ESOL3L	88.6	149°
	ROMT3L, ROMT3N	101.5	174°
	URAG3P, URAG3N, URAG3M, URAG3L	72.4	266°
	OLOP3L, OLOP3N	79.4	319°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW14CY	ALBOR (321°)	ALBOR SAZDU (6mi, 15°) TOSLA (6mi, 14°) BIMME (9mi, 310°) ANKAZ (6mi, 310°) OZFUR (6mi, 309°) 4000ft ETDAR (4mi, 249°) 3000ft LIZHI (3mi, 131°) 2500ft
RW14CY	PEREK (207°)	PEREK 6000ft GEKLA (5mi, 258°) ETDAR (7mi, 240°) 3000ft LIZHI (3mi, 131°) 2500ft
	RNAV	LIZHI 2500ft DD141 (3mi, 130°) 2000ft UUDD (4mi, 145°) 594ft (3807mi, 214°) 1300ft DD712 (3808mi, 35°) 3000ft PEFOS (5mi, 130°) NIDBE (5mi, 130°) IZVOK (4mi, 131°) 5000ft DD047 (8mi, 249°) 5000ft ALBOR (9mi, 310°)
RW14CZ	ALBOR (321°)	ALBOR SAZDU (6mi, 15°) TOSLA (6mi, 14°) BIMME (9mi, 310°) DEZAP (5mi, 253°) 4000ft KETFI (7mi, 279°) 4000ft NIZVO (6mi, 311°) 4000ft ETDAR (5mi, 69°) 3000ft LIZHI (3mi, 131°) 2500ft
	RNAV	LIZHI 2500ft DD141 (3mi, 130°) 2000ft UUDD (4mi, 145°) 594ft (3807mi, 214°) 1300ft DD712 (3808mi, 35°) 3000ft PEFOS (5mi, 130°) NIDBE (5mi, 130°) IZVOK (4mi, 131°) 5000ft DD047 (8mi, 249°) 5000ft ALBOR (9mi, 310°)
RW14LY	ALBOR (321°)	ALBOR SAZDU (6mi, 15°) TOSLA (6mi, 14°) BIMME (9mi, 310°) ANKAZ (6mi, 310°) 4000ft OZFUR (6mi, 309°) 4000ft DD072 (4mi, 249°) 3000ft DD071 (3mi, 130°) 2500ft
RW14LY	PEREK (207°)	PEREK 6000ft GEKLA (5mi, 258°) DD072 (7mi, 240°) 3000ft DD071 (3mi, 130°) 2500ft
	RNAV	DD071 2500ft DD070 (3mi, 130°) 2000ft UUDD (4mi, 146°) 593ft (3807mi, 214°) 1300ft DD712 (3808mi, 35°) 3000ft PEFOS (5mi, 130°) NIDBE (5mi, 130°) IZVOK (4mi, 131°) 5000ft DD047 (8mi, 249°) 5000ft ALBOR (9mi, 310°)
RW14LZ	ALBOR (321°)	ALBOR SAZDU (6mi, 15°) TOSLA (6mi, 14°) BIMME (9mi, 310°) DEZAP (5mi, 253°) 4000ft KETFI (7mi, 279°) 4000ft NIZVO (6mi, 311°) 4000ft DD072 (5mi, 69°) 3000ft DD071 (3mi, 130°) 2500ft
	RNAV	DD071 2500ft DD070 (3mi, 130°) 2000ft UUDD (4mi, 146°) 593ft (3807mi, 214°) 1300ft DD712 (3808mi, 35°) 3000ft PEFOS (5mi, 130°) NIDBE (5mi, 130°) IZVOK (4mi, 131°) 5000ft DD047 (8mi, 249°) 5000ft ALBOR (9mi, 310°)
RW14RY	ALBOR (321°)	ALBOR SAZDU (6mi, 15°) TOSLA (6mi, 14°) BIMME (9mi, 310°) ANKAZ (6mi, 310°) OZFUR (6mi, 309°) 4000ft DUPIZ (5mi, 249°) 3000ft KATEZ (3mi, 130°) 2500ft
RW14RY	PEREK (207°)	PEREK 6000ft GEKLA (5mi, 258°) DUPIZ (8mi, 242°) 3000ft KATEZ (3mi, 130°) 2500ft
	RNAV	KATEZ 2500ft DD144 (3mi, 130°) 2000ft UUDD (5mi, 127°) 643ft (3807mi, 214°) 1300ft DK (3794mi, 34°) 3000ft GUFUZ (16mi, 138°) 5000ft DD046 (8mi, 77°) 5000ft ALBOR (9mi, 328°)
RW14RZ	ALBOR (321°)	ALBOR SAZDU (6mi, 15°) TOSLA (6mi, 14°) BIMME (9mi, 310°) DEZAP (5mi, 253°) 4000ft KETFI (7mi, 279°) 4000ft NIZVO (6mi, 311°) 4000ft DUPIZ (4mi, 69°) 3000ft KATEZ (3mi, 130°) 2500ft
	RNAV	KATEZ 2500ft DD144 (3mi, 130°) 2000ft UUDD (5mi, 127°) 643ft (3807mi, 214°) 1300ft DK (3794mi, 34°) 3000ft GUFUZ (16mi, 138°) 5000ft DD046 (8mi, 77°) 5000ft ALBOR (9mi, 328°)
RW32C	ALBOR (321°)	ALBOR 5000ft ODVUV (8mi, 355°) 4000ft
	RNAV	ODVUV 3000ft DD341 (3mi, 310°) 3000ft UUDD (10mi, 305°) 574ft (3807mi, 214°) 1200ft DD712 (3808mi, 35°) 3000ft PEFOS (5mi, 130°) NIDBE (5mi, 130°) IZVOK (4mi, 131°) 5000ft DD047 (8mi, 249°) 5000ft ALBOR (9mi, 310°) 5000ft
RW32L	ALBOR (321°)	ALBOR 5000ft IFUTU (7mi, 342°) 4000ft
	RNAV	IFUTU 3000ft DD347 (4mi, 310°) 3000ft 16THR (6mi, 310°) 1100ft UUDD (3mi, 314°) 588ft (3807mi, 214°) 1200ft DK (3794mi, 34°) 3000ft GUFUZ (16mi, 138°) 5000ft DD046 (8mi, 77°) 5000ft ALBOR (9mi, 328°) 5000ft
RW32R	ALBOR (321°)	ALBOR 5000ft DD324 (8mi, 359°) 4000ft
	RNAV	DD324 3000ft DD335 (3mi, 310°) 3000ft UUDD (10mi, 304°) 573ft (3807mi, 214°) 1200ft DD712 (3808mi, 35°) 3000ft PEFOS (5mi, 130°) NIDBE (5mi, 130°) IZVOK (4mi, 131°) 5000ft DD047 (8mi, 249°) 5000ft ALBOR (9mi, 310°) 5000ft

Holding patterns

STAR name	hold at	type	turn	heading*	altitude	leg	speed limit
BILR3L	ALBOR	VHF	left	127 (307)°	3000ft - 9000ft	1.0min timed	ICAO rules
BILR3L	NIDBE	VHF	right	315 (135)°	8000ft - 10000ft	1.0min timed	ICAO rules
BILR3L	NUKDI	VHF	left	253 (73)°	23000ft - 27000ft	1.5min timed	ICAO rules
BILR3L	PREKI	VHF	right	271 (91)°	21000ft - 25000ft	1.5min timed	ICAO rules
BILR3N	ALBOR	VHF	left	127 (307)°	3000ft - 9000ft	1.0min timed	ICAO rules
BILR3N	NIDBE	VHF	right	315 (135)°	8000ft - 10000ft	1.0min timed	ICAO rules
BILR3N	NUKDI	VHF	left	253 (73)°	23000ft - 27000ft	1.5min timed	ICAO rules
BILR3N	PREKI	VHF	right	271 (91)°	21000ft - 25000ft	1.5min timed	ICAO rules
ESOL3L	ALBOR	VHF	left	127 (307)°	3000ft - 9000ft	1.0min timed	ICAO rules
ESOL3L	KUPVE	VHF	right	313 (133)°	8000ft - 9000ft	1.0min timed	ICAO rules
ESOL3L	RATKE	VHF	right	351 (171)°	21000ft - 25000ft	1.5min timed	ICAO rules
ESOL3L	SUBOD	VHF	right	10 (190)°	21000ft - 27000ft	1.5min timed	ICAO rules
ESOL3N	ALBOR	VHF	left	127 (307)°	3000ft - 9000ft	1.0min timed	ICAO rules
ESOL3N	KUPVE	VHF	right	313 (133)°	8000ft - 9000ft	1.0min timed	ICAO rules
ESOL3N	NIDBE	VHF	right	315 (135)°	8000ft - 10000ft	1.0min timed	ICAO rules
ESOL3N	RATKE	VHF	right	351 (171)°	21000ft - 25000ft	1.5min timed	ICAO rules
ESOL3N	SUBOD	VHF	right	10 (190)°	21000ft - 27000ft	1.5min timed	ICAO rules
OLOP3L	ALBOR	VHF	left	127 (307)°	3000ft - 9000ft	1.0min timed	ICAO rules
OLOP3L	OKPEN	VHF	left	142 (322)°	7000ft - 10000ft	1.0min timed	ICAO rules
OLOP3L	RIFMA	VHF	left	143 (323)°	25000ft - 28000ft	1.5min timed	ICAO rules
OLOP3N	ALBOR	VHF	left	127 (307)°	3000ft - 9000ft	1.0min timed	ICAO rules
OLOP3N	OKPEN	VHF	left	142 (322)°	7000ft - 10000ft	1.0min timed	ICAO rules
OLOP3N	RIFMA	VHF	left	143 (323)°	25000ft - 28000ft	1.5min timed	ICAO rules
ROMT3L	ALBOR	VHF	left	127 (307)°	3000ft - 9000ft	1.0min timed	ICAO rules
ROMT3L	FILZI	VHF	right	352 (172)°	25000ft - 28000ft	1.5min timed	ICAO rules
ROMT3L	KUPVE	VHF	right	313 (133)°	8000ft - 9000ft	1.0min timed	ICAO rules
ROMT3L	RATKE	VHF	right	351 (171)°	21000ft - 25000ft	1.5min timed	ICAO rules
ROMT3N	ALBOR	VHF	left	127 (307)°	3000ft - 9000ft	1.0min timed	ICAO rules
ROMT3N	FILZI	VHF	right	352 (172)°	25000ft - 28000ft	1.5min timed	ICAO rules
ROMT3N	KUPVE	VHF	right	313 (133)°	8000ft - 9000ft	1.0min timed	ICAO rules
ROMT3N	NIDBE	VHF	right	315 (135)°	8000ft - 10000ft	1.0min timed	ICAO rules
ROMT3N	RATKE	VHF	right	351 (171)°	21000ft - 25000ft	1.5min timed	ICAO rules
TENR3L	ALBOR	VHF	left	127 (307)°	3000ft - 9000ft	1.0min timed	ICAO rules
TENR3N	ALBOR	VHF	left	127 (307)°	3000ft - 9000ft	1.0min timed	ICAO rules
TENR3N	RINLO	VHF	right	237 (57)°	6000ft - 10000ft	1.0min timed	ICAO rules
URAG3L	ALBOR	VHF	left	127 (307)°	3000ft - 9000ft	1.0min timed	ICAO rules
URAG3L	KORFI	VHF	right	85 (265)°	17000ft - 20000ft	1.5min timed	ICAO rules
URAG3L	KUPVE	VHF	right	313 (133)°	8000ft - 9000ft	1.0min timed	ICAO rules
URAG3L	ORVOZ	VHF	right	85 (265)°	11000ft - 24000ft	1.5min timed	ICAO rules
URAG3M	ALBOR	VHF	left	127 (307)°	3000ft - 9000ft	1.0min timed	ICAO rules
URAG3M	ORVOZ	VHF	right	85 (265)°	11000ft - 24000ft	1.5min timed	ICAO rules
URAG3N	ALBOR	VHF	left	127 (307)°	3000ft - 9000ft	1.0min timed	ICAO rules
URAG3N	KORFI	VHF	right	85 (265)°	17000ft - 20000ft	1.5min timed	ICAO rules
URAG3N	KUPVE	VHF	right	313 (133)°	8000ft - 9000ft	1.0min timed	ICAO rules
URAG3N	NIDBE	VHF	right	315 (135)°	8000ft - 10000ft	1.0min timed	ICAO rules
URAG3N	ORVOZ	VHF	right	85 (265)°	11000ft - 24000ft	1.5min timed	ICAO rules
URAG3P	ORVOZ	VHF	right	85 (265)°	11000ft - 24000ft	1.5min timed	ICAO rules
URAG3P	PEREK	VHF	right	101 (281)°	3000ft - 6000ft	1.0min timed	ICAO rules
*) magnetic outbound (inbound) holding course
