Airports for X-Plane

Delhi - Indira Gandhi Int

Airport details

CountryIndia
StateDelhi
RegionVI
AirspaceDelhi Ctr
MunicipalityNew Delhi
Elevation775ft (236m)
TimezoneGMT +5.5
Coordinates28.56650, 77.10310
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeVIDP
IATA codeDEL
FAA coden/a

Communication

Indira Gandhi Int ATIS126.400
Indira Gandhi Int Clearance DEL121.950
Indira Gandhi Int Ground Control121.900
Indira Gandhi Int Tower118.100
Indira Gandhi Int Approach/Departure119.300
Indira Gandhi Int Approach/Departure124.600

Approach frequencies

ILS-cat-IIIRW29110.918.00mi
ILS-cat-IIIRW11111.318.00mi
ILS-cat-IIIRW28110.318.00mi
ILS-cat-IRW27110.518.00mi
ILS-cat-IRW09108.518.00mi
ILS-cat-IRW10109.518.00mi
3° GSRW28110.318.00mi
3° GSRW10109.518.00mi
3° GSRW11111.318.00mi
3° GSRW29110.918.00mi
3° GSRW27110.518.00mi
3° GSRW09108.518.00mi
Nearby Points of Interest:
Zafar Mahal
-
Gandhak ki Baoli
-
Hauz-i-Shamsi
-
Jahaz Mahal
-
Rajon Ki Baoli
-
Qutb complex
-
Tomb of Adham Khan
-
Jamali Kamali Mosque and Tomb
-
Bara Gumbad
-
Tomb of Bahlul Lodi
-
Baroda House
-
Isa Khan's tomb complex
-
Nila Gumbad
-
Tripolia Gates
-
Lothian Cemetery
-
Flagstaff Tower
-
Anagpur Dam

Runway info

Runway 09 / 27
 length2826m (9272ft)
 bearing91° / 271°
 width45m (148ft)
 surfaceasphalt
 displ threshold0m (0ft) / 152m (499ft)
 blast zone58m (190ft) / 0m (0ft)
Runway 10 / 28
 length3807m (12490ft)
 bearing103° / 283°
 width45m (148ft)
 surfaceasphalt
 blast zone255m (837ft) / 149m (489ft)
Runway 11 / 29
 length4374m (14350ft)
 bearing102° / 282°
 width60m (197ft)
 surfaceasphalt
 displ threshold628m (2060ft) / 1430m (4692ft)

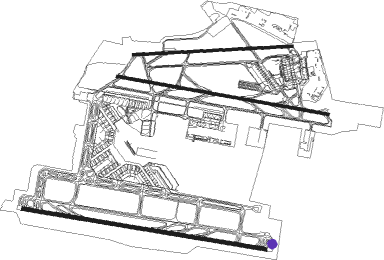

Airport layout - taxiway location Z1


Taxiway locations

 A  B  C1  CE1  CE2  CW1  CW2  D
 D1  E  E2  E3  E4  E5  H  J
 K  L1  L2  M  M2  N  P  R
 R3  S2  S3  S4  S5  T  T1  T2
 T3  W  W1  W2  Y  Z  Z1  Z1A
 Z2  Z3  Z4  Z8  Z9  Z9A
Parking locations

 1  10  100  101  102  103  104  105
 106  11  12  120  121  122  123  124
 125  126  127  128  129  130  131  132
 134  135  136  137  138  139  140  141
 142  143  144  145  146  147  148  149
 15  150  151  152  16  161  162  163
 164  165  166  167  168  169  17  170
 171  172  173  174  175  176  177  178
 179  180  181  182  183  184  185  186
 187  188  19  2  20  21  22  23
 24  25  26  27  28  29  3  30
 31  32  32A  33  34  35  36  37
 38  39  4  40A  40B  40C  41  42
 43  44  45  46  47  48  49  5
 6  7  8  81  81A  81B  82  82A
 82B  83  83A  83B  84  84A  84B  85
 85A  86  87  88  89  9  90  91
 92  98  99  A01  A01L  A01R  A03  A03L
 A03R  A06  A07  A07L  A07R  A08  A08L  A08R
 A09  A09L  A09R  A10  A10L  A10R  A11  A11L
 A11R  A12  A12L  A12R  A13  A14  A14L  A14R
 B15  B15L  B15R  B17  B17L  B17R  B18  B19
 B19L  B19R  B20  B20L  B20R  B21  B22  B22L
 B22R  B24  B24L  B24R  B26  B26L  B26R  C27
 C27L  C27R  C28  C28L  C28R  C29  C29L  C29R
 C30  C30L  C30R  C31  C31L  C31R  C32  C32L
 C32R  C33  C34  C34L  C34R  C36  D37  D37L
 D37R  D39  D39L  D39R  D41  D43  D45  D46
 D47  D48  D49  D50  D52  D53  D54  D55
 D56  D58  D60  D62  E64  E66  E68  E70
 E72  E74  E76  E78  E80  E82  E84  R01
 R02  R02L  R02R  R03  R03L  R03R  R04  R05
 R06  R07  R07L  R07R  R08  R08L  R08R  R09

Nearby beacons

codeidentifierdistbearingfrequency
DPNDELHI VOR/DME0.5272°116.10
DIGDELHI VOR/DME1.8223°114.60
DHDELHI NDB5.291°202
SAMSAMPLA VOR/DME21.3312°117
CHICHILLARKI VOR/DME26.5243°116.80
SSBSIKANDARABAD VOR/DME33.6106°112.40
SKASAKRAS VOR/DME43.3188°117.20

Departure and arrival routes

Transition altitude4000ft
SID end pointsdistanceoutbound heading
RW09
 ALI5D72mi124°
 ITBA5D55mi140°
 AKRI5D71mi195°
 REBO5D55mi217°
 SURA5D65mi279°
 BUTO5D101mi294°
RW10
 ALI5E72mi124°
 ITBA5E55mi140°
 AKRI5E71mi195°
 REBO5E55mi217°
 SURA5E65mi279°
 BUTO5E101mi294°
RW11
 ALI5F72mi124°
 ITBA5F55mi140°
 AKRI5F71mi195°
 REBO5F55mi217°
 SURA5F65mi279°
 BUTO5F101mi294°
RW27
 ALI5A72mi124°
 ITBA5A55mi140°
 AKRI5A71mi195°
 REBO5A55mi217°
 SURA5A65mi279°
 BUTO5A101mi294°
RW28
 ALI5H, ALI5B72mi124°
 ITBA5B, ITBA5H55mi140°
 AKRI5H, AKRI5B71mi195°
 REBO5B, REBO5H55mi217°
 SURA5B65mi279°
 BUTO5B101mi294°
RW29
 ALI5C72mi124°
 ITBA5C55mi140°
 AKRI5C71mi195°
 REBO5C55mi217°
 SURA5C65mi279°
 BUTO5C101mi294°

STAR starting pointsdistanceinbound heading
RW09
 ATRI5D, DIPA5D, LKA5D40.363°
 SP5D, IGIN5D21.3132°
 PUMO5P, PUMO5D, JAL5P, JAL5D, HW5P, HW5D33.5286°
 BAVO5D145.7357°
 POSI5D55.1358°
RW10
 DIPA5E, LKA5E, ATRI5E40.363°
 IGIN5E, SP5E21.3132°
 PUMO5Q, PUMO5E, JAL5Q, JAL5E, HW5Q, HW5E33.5286°
 BAVO5E145.7357°
 POSI5E55.1358°
RW11
 DIPA5F, LKA5F, ATRI5F40.363°
 IGIN5F, SP5F21.3132°
 PUMO5R, PUMO5F, JAL5R, JAL5F, HW5R, HW5F33.5286°
 BAVO5F145.7357°
 POSI5F55.1358°
RW27
 LKA5A, DIPA5A, ATRI5A40.363°
 SP5K, IGIN5A, IGIN5K, SP5A21.3132°
 HW5A, JAL5A, PUMO5A33.5286°
 BAVO5A145.7357°
 POSI5A55.1358°
RW28
 ATRI5B, DIPA5B, LKA5B40.363°
 SP5L, SP5B, IGIN5B, IGIN5L21.3132°
 PUMO5B, JAL5B, HW5B33.5286°
 BAVO5B145.7357°
 POSI5B55.1358°
RW29
 ATRI5C, DIPA5C, LKA5C40.363°
 SP5M, IGIN5M, IGIN5C, SP5C21.3132°
 JAL5C, PUMO5C, HW5C33.5286°
 BAVO5C145.7357°
 POSI5C55.1358°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ATRI5AAKBANVHFleft247 (67)°11000ft - 16000ftDME 10.0mi250
ATRI5BAKBANVHFleft247 (67)°11000ft - 16000ftDME 10.0mi250
ATRI5CAKBANVHFleft247 (67)°11000ft - 16000ftDME 10.0mi250
ATRI5DAKBANVHFleft247 (67)°11000ft - 16000ftDME 10.0mi250
ATRI5EAKBANVHFleft247 (67)°11000ft - 16000ftDME 10.0mi250
ATRI5FAKBANVHFleft247 (67)°11000ft - 16000ftDME 10.0mi250
BAVO5ASAPLOVHFright190 (10)°11000ft - 20000ftDME 10.0mi250
BAVO5BSAPLOVHFright190 (10)°11000ft - 20000ftDME 10.0mi250
BAVO5CSAPLOVHFright190 (10)°11000ft - 20000ftDME 10.0mi250
BAVO5DSAPLOVHFright190 (10)°11000ft - 20000ftDME 10.0mi250
BAVO5ESAPLOVHFright190 (10)°11000ft - 20000ftDME 10.0mi250
BAVO5FSAPLOVHFright190 (10)°11000ft - 20000ftDME 10.0mi250
DIPA5AAKBANVHFleft247 (67)°11000ft - 16000ftDME 10.0mi250
DIPA5BAKBANVHFleft247 (67)°11000ft - 16000ftDME 10.0mi250
DIPA5CAKBANVHFleft247 (67)°11000ft - 16000ftDME 10.0mi250
DIPA5DAKBANVHFleft247 (67)°11000ft - 16000ftDME 10.0mi250
DIPA5EAKBANVHFleft247 (67)°11000ft - 16000ftDME 10.0mi250
DIPA5FAKBANVHFleft247 (67)°11000ft - 16000ftDME 10.0mi250
HW5ASIBADVHFleft111 (291)°7000ft - 14000ftDME 10.0mi250
HW5BSIBADVHFleft111 (291)°7000ft - 14000ftDME 10.0mi250
HW5CSIBADVHFleft111 (291)°7000ft - 14000ftDME 10.0mi250
HW5DSIBADVHFleft111 (291)°7000ft - 14000ftDME 10.0mi250
HW5ESIBADVHFleft111 (291)°7000ft - 14000ftDME 10.0mi250
HW5FSIBADVHFleft111 (291)°7000ft - 14000ftDME 10.0mi250
HW5PSIBADVHFleft111 (291)°7000ft - 14000ftDME 10.0mi250
HW5QSIBADVHFleft111 (291)°7000ft - 14000ftDME 10.0mi250
HW5RSIBADVHFleft111 (291)°7000ft - 14000ftDME 10.0mi250
IGIN5ASAMNDBleft316 (136)°15000ft - 46000ft1.5min timedICAO rules
IGIN5BSAMNDBleft316 (136)°15000ft - 46000ft1.5min timedICAO rules
IGIN5CSAMNDBleft316 (136)°15000ft - 46000ft1.5min timedICAO rules
IGIN5DSAMNDBleft316 (136)°15000ft - 46000ft1.5min timedICAO rules
IGIN5ESAMNDBleft316 (136)°15000ft - 46000ft1.5min timedICAO rules
IGIN5FSAMNDBleft316 (136)°15000ft - 46000ft1.5min timedICAO rules
IGIN5KSAMNDBleft316 (136)°15000ft - 46000ft1.5min timedICAO rules
IGIN5LSAMNDBleft316 (136)°15000ft - 46000ft1.5min timedICAO rules
IGIN5MSAMNDBleft316 (136)°15000ft - 46000ft1.5min timedICAO rules
JAL5ASIBADVHFleft111 (291)°7000ft - 14000ftDME 10.0mi250
JAL5BSIBADVHFleft111 (291)°7000ft - 14000ftDME 10.0mi250
JAL5CSIBADVHFleft111 (291)°7000ft - 14000ftDME 10.0mi250
JAL5DSIBADVHFleft111 (291)°7000ft - 14000ftDME 10.0mi250
JAL5ESIBADVHFleft111 (291)°7000ft - 14000ftDME 10.0mi250
JAL5FSIBADVHFleft111 (291)°7000ft - 14000ftDME 10.0mi250
JAL5PSIBADVHFleft111 (291)°7000ft - 14000ftDME 10.0mi250
JAL5QSIBADVHFleft111 (291)°7000ft - 14000ftDME 10.0mi250
JAL5RSIBADVHFleft111 (291)°7000ft - 14000ftDME 10.0mi250
LKA5AAKBANVHFleft247 (67)°11000ft - 16000ftDME 10.0mi250
LKA5BAKBANVHFleft247 (67)°11000ft - 16000ftDME 10.0mi250
LKA5CAKBANVHFleft247 (67)°11000ft - 16000ftDME 10.0mi250
LKA5DAKBANVHFleft247 (67)°11000ft - 16000ftDME 10.0mi250
LKA5EAKBANVHFleft247 (67)°11000ft - 16000ftDME 10.0mi250
LKA5FAKBANVHFleft247 (67)°11000ft - 16000ftDME 10.0mi250
POSI5ASAPLOVHFright190 (10)°11000ft - 20000ftDME 10.0mi250
POSI5BSAPLOVHFright190 (10)°11000ft - 20000ftDME 10.0mi250
POSI5CSAPLOVHFright190 (10)°11000ft - 20000ftDME 10.0mi250
POSI5DSAPLOVHFright190 (10)°11000ft - 20000ftDME 10.0mi250
POSI5ESAPLOVHFright190 (10)°11000ft - 20000ftDME 10.0mi250
POSI5FSAPLOVHFright190 (10)°11000ft - 20000ftDME 10.0mi250
PUMO5ASIBADVHFleft111 (291)°7000ft - 14000ftDME 10.0mi250
PUMO5BSIBADVHFleft111 (291)°7000ft - 14000ftDME 10.0mi250
PUMO5CSIBADVHFleft111 (291)°7000ft - 14000ftDME 10.0mi250
PUMO5DSIBADVHFleft111 (291)°7000ft - 14000ftDME 10.0mi250
PUMO5ESIBADVHFleft111 (291)°7000ft - 14000ftDME 10.0mi250
PUMO5FSIBADVHFleft111 (291)°7000ft - 14000ftDME 10.0mi250
PUMO5PSIBADVHFleft111 (291)°7000ft - 14000ftDME 10.0mi250
PUMO5QSIBADVHFleft111 (291)°7000ft - 14000ftDME 10.0mi250
PUMO5RSIBADVHFleft111 (291)°7000ft - 14000ftDME 10.0mi250
SP5ASAMNDBleft316 (136)°15000ft - 46000ft1.5min timedICAO rules
SP5BSAMNDBleft316 (136)°15000ft - 46000ft1.5min timedICAO rules
SP5CSAMNDBleft316 (136)°15000ft - 46000ft1.5min timedICAO rules
SP5DSAMNDBleft316 (136)°15000ft - 46000ft1.5min timedICAO rules
SP5ESAMNDBleft316 (136)°15000ft - 46000ft1.5min timedICAO rules
SP5FSAMNDBleft316 (136)°15000ft - 46000ft1.5min timedICAO rules
SP5KSAMNDBleft316 (136)°15000ft - 46000ft1.5min timedICAO rules
SP5LSAMNDBleft316 (136)°15000ft - 46000ft1.5min timedICAO rules
SP5MSAMNDBleft316 (136)°15000ft - 46000ft1.5min timedICAO rules
*) magnetic outbound (inbound) holding course
