Airports for X-Plane

Tak Mae Sot

Airport details

CountryThailand
StateTak Province
RegionVT
AirspaceBangkok Ctr
MunicipalityMae Sot
Elevation688ft (210m)
TimezoneGMT +7
Coordinates16.69983, 98.54348
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeVTPM
IATA codeMAQ
FAA coden/a

Communication

Tak Mae Sot Tower118.350
Tak Mae Sot Approach120.650

Runway info

Runway 09 / 27
 length1497m (4911ft)
 bearing89° / 269°
 width45m (148ft)
 surfaceasphalt
 blast zone60m (197ft) / 60m (197ft)

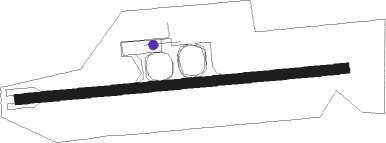

Airport layout - parking location A1


Parking locations

Nearby beacons

codeidentifierdistbearingfrequency
MSTMAE SOT (TAK) VOR/DME0.1223°116.70
MSMAE SOT (TAK) NDB0.2300°316
TKTAK NDB42.474°332
PAHPA-AN NDB51.2282°365
MMMAWLAMYINE NDB53.2254°330

Departure and arrival routes

Transition altitude11000ft
Transition level13000ft
SID end pointsdistanceoutbound heading
RW09
 LILR1A22mi11°
 ISBE1A, ISBE1B21mi74°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW27BEKDU (279°)BEKDU 7000ft
EGUNA (5mi, 313°) 5000ft
RW27ISBEL (254°)ISBEL 7000ft
EGUNA (7mi, 218°) 5000ft
RW27LILRI (191°)LILRI 7000ft
DOMPO (12mi, 140°) 5000ft
PAVNA (6mi, 140°) 5000ft
EGUNA (7mi, 179°) 5000ft
 RNAVEGUNA 5000ft
MERES (7mi, 269°) 3600ft
PM202 (2mi, 269°) 2950ft
PM201 (2mi, 269°) 2200ft
SURUN (2mi, 269°) 1372ft
VETEG (7mi, 350°)
EMSIK (5mi, 24°) 4000ft
DOMPO (9mi, 89°) 5000ft
PAVNA (6mi, 140°) 5000ft
EGUNA (7mi, 179°) 5000ft
EGUNA (turn) 5000ft
