Airports for X-Plane

Da Nang - Danang Intl

Airport details

CountryVietnam
StateDa Nang Municipality
RegionVV
AirspaceHo Chi Minh Ctr
MunicipalityDa Nang
Elevation33ft (10m)
TimezoneGMT +7
Coordinates16.03932, 108.20486
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeVVDN
IATA codeDAD
FAA coden/a

Communication

Danang Intl Ground Control121.900
Danang Intl Ground Control121.600
Danang Intl Tower125.000
Danang Intl Approach119.500
Danang Intl Approach125.300

Approach frequencies

ILS-cat-IRW35L110.518.00mi
ILS-cat-IRW35R111.518.00mi
3° GSRW35L110.518.00mi
3° GSRW35R111.518.00mi
Nearby Points of Interest:
Hội An
-
Mỹ Sơn

Runway info

Runway 17L / 35R
 length3518m (11542ft)
 bearing172° / 352°
 width45m (148ft)
 surfaceasphalt
 blast zone255m (837ft) / 255m (837ft)
Runway 17R / 35L
 length3064m (10052ft)
 bearing172° / 352°
 width45m (148ft)
 surfaceasphalt
 blast zone255m (837ft) / 255m (837ft)

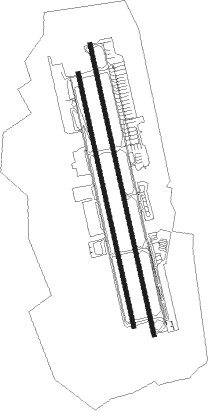

Airport layout


Taxiway locations

 E  E1  E2  E3  E4  E6  E7  G1
 W1  W2  W4  W7
Parking locations

 Gate  Gate6  Gate7  Gate8  New

Nearby beacons

codeidentifierdistbearingfrequency
DANDA NANG VOR/DME0.8334°114.40
DDA NANG NDB1.3182°234
DJDA NANG NDB3.7178°212
PBPHU BAI (HUE) NDB32.8309°440
PPHU BAI (HUE) NDB35307°348
HUEPHU BAI (HUE) VOR/DME36.2306°115.80
CLACHU LAI VOR/DME46.6142°115.20
CQCHU LAI NDB47.4141°300

Departure and arrival routes

Transition altitude9022ft
Transition level10000ft
SID end pointsdistanceoutbound heading
RW17 (ALL)
 KANG1J, KANG1B33mi56°
 SAMB1B32mi65°
 TAMK1G, TAMK1B47mi141°
 ANLU1D, ANLU1B58mi182°
 TAHU1B, TAHU1D60mi185°
 TANA1B61mi255°
 TANA1F33mi256°
 HUE1H, HUE1B36mi306°
 CAHE1B72mi334°
 CAHE1H33mi334°
RW35 (ALL)
 KANG1H, KANG1A33mi56°
 SAMB1A32mi65°
 TAMK1F, TAMK1A47mi141°
 ANLU1C, ANLU1A58mi182°
 TAHU1A, TAHU1C60mi185°
 TANA1A61mi255°
 TANA1E33mi256°
 HUE1A36mi306°
 KONC1B82mi313°
 CAHE1A72mi334°
 CAHE1G33mi334°
RW35L
 HOKI1A84mi56°
 KEMS1A123mi185°
 TANA1C61mi255°
 LAIK1A76mi319°
RW35R
 HOKI1B84mi56°
 KEMS1B123mi185°
 TANA1D61mi255°
 LAIK1B76mi319°

STAR starting pointsdistanceinbound heading
RW35 (ALL)
 SUNR1B57.62°
 MISI1B60.35°
 TANA1A61.275°
 HUE1A36.2126°
 CAHE1A72.1154°
 KANG1B, KANG1A32.5236°
 TAMK1A, TAMK1B47.4321°
RW35L
 SUNR1A57.62°
 MIN1C122.55°
 MISI1A60.35°
 NOCK1A38.314°
 MANG1A32.358°
 TAN1C61.275°
 HUE1C, HUE1E36.2126°
 CAHE1C, CAHE1E32.8154°
 CAH1B72.1154°
 KANG1D, KAN1C, KANG1F32.5236°
 SAM1C32.2245°
 TAM1C, TAMK1D47.4321°
RW35R
 SUNR1D57.62°
 MISI1D60.35°
 NOCK1B38.314°
 MANG1B32.358°
 HUE1F, HUE1D36.2126°
 CAHE1F, CAHE1D32.8154°
 KANG1E, KANG1G32.5236°
 TAMK1E47.4321°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
CAH1BDJFIXright173 (353)°7060ft - 14000ft1.0min timedICAO rules
CAHE1ADANNDBright330 (150)°14000ft - 60000ft1.5min timedICAO rules
CAHE1CCAHEOVHFright348 (168)°10000ft - 14000ft1.0min timed230
CAHE1DCAHEOVHFright348 (168)°10000ft - 14000ft1.0min timed230
CAHE1ECAHEOVHFright348 (168)°10000ft - 14000ft1.0min timed230
CAHE1FCAHEOVHFright348 (168)°10000ft - 14000ft1.0min timed230
HUE1ADANNDBright330 (150)°14000ft - 60000ft1.5min timedICAO rules
HUE1CHUENDBleft245 (65)°> 7000ft1.0min timedICAO rules
HUE1DHUENDBleft245 (65)°> 7000ft1.0min timedICAO rules
HUE1EHUENDBleft245 (65)°> 7000ft1.0min timedICAO rules
HUE1FHUENDBleft245 (65)°> 7000ft1.0min timedICAO rules
KAN1CDJFIXright173 (353)°7060ft - 14000ft1.0min timedICAO rules
KANG1AD057OVHFright57 (237)°4930ft - 14000ft1.0min timedICAO rules
KANG1BDANNDBright330 (150)°14000ft - 60000ft1.5min timedICAO rules
KANG1DKANGUVHFleft73 (253)°9030ft - 14000ft1.0min timed230
KANG1EKANGUVHFleft73 (253)°9030ft - 14000ft1.0min timed230
KANG1FKANGUVHFleft73 (253)°9030ft - 14000ft1.0min timed230
KANG1GKANGUVHFleft73 (253)°9030ft - 14000ft1.0min timed230
MANG1AMANGAVHFright270 (90)°9030ft - 14000ft1.0min timed230
MANG1BMANGAVHFright270 (90)°9030ft - 14000ft1.0min timed230
MIN1CDJFIXright173 (353)°7060ft - 14000ft1.0min timedICAO rules
MISI1ATAHUAVHFleft186 (6)°9030ft - 14000ft1.0min timedICAO rules
MISI1BDANNDBright330 (150)°14000ft - 60000ft1.5min timedICAO rules
NOCK1ANOCKAVHFleft173 (353)°10000ft - 14000ft1.0min timed230
NOCK1BNOCKAVHFleft173 (353)°10000ft - 14000ft1.0min timed230
PB1BDJFIXright173 (353)°7060ft - 14000ft1.0min timedICAO rules
SAM1CDJFIXright173 (353)°7060ft - 14000ft1.0min timedICAO rules
SUNR1AANLUTVHFright182 (2)°> 9030ft1.0min timedICAO rules
SUNR1BDANNDBright330 (150)°14000ft - 60000ft1.5min timedICAO rules
TAM1CDJFIXright173 (353)°7060ft - 14000ft1.0min timedICAO rules
TAMK1AD144UVHFright144 (324)°4930ft - 14000ft1.0min timedICAO rules
TAMK1BDANNDBright330 (150)°14000ft - 60000ft1.5min timedICAO rules
TAMK1DTAMKYVHFleft97 (277)°8040ft - 14000ft1.0min timed230
TAMK1ETAMKYVHFleft97 (277)°8040ft - 14000ft1.0min timed230
TAN1CDJFIXright173 (353)°7060ft - 14000ft1.0min timedICAO rules
TANA1ADANNDBright330 (150)°14000ft - 60000ft1.5min timedICAO rules
*) magnetic outbound (inbound) holding course
