Airports for X-Plane

Hue - Phu Bai

Airport details

CountryVietnam
StateThừa Thiên Huế Province
RegionVV
AirspaceHo Chi Minh Ctr
MunicipalityHương Thủy
Elevation46ft (14m)
TimezoneGMT +7
Coordinates16.40068, 107.70249
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeVVPB
IATA codeHUI
FAA coden/a

Communication

Phu Bai Tower118.800

Approach frequencies

ILS-cat-IRW27109.518.00mi
3° GSRW27109.518.00mi
Nearby Points of Interest:
Tomb of Gia Long
-
Tomb of Minh Mang
-
Văn miếu Huế

Runway info

Runway 09 / 27
 length2702m (8865ft)
 bearing93° / 273°
 width40m (130ft)
 surfaceasphalt
 blast zone33m (108ft) / 100m (328ft)

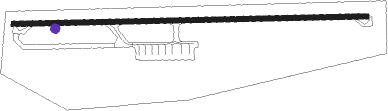

Airport layout - taxiway location W3


Taxiway locations

 E1  W1  W2  W3  W4
Parking locations

 Gate

Nearby beacons

codeidentifierdistbearingfrequency
HUEPHU BAI (HUE) VOR/DME0.1332°115.80
PPHU BAI (HUE) NDB1.395°348
PBPHU BAI (HUE) NDB494°440
DANDA NANG VOR/DME35.4125°114.40
DDA NANG NDB36.9127°234
DJDA NANG NDB38.6130°212

Departure and arrival routes

Transition altitude9000ft
Transition level10000ft
SID end pointsdistanceoutbound heading
RW09
 BIPH1A16mi34°
 XILG1A, BACM2B, BACM1B, BACM1A35mi125°
 NAKH1B85mi163°
 HUTR1A, HUTR1B59mi274°
 HUTR2F16mi274°
 PHUV2B, PHUV1A47mi319°
 ANTH2B, ANTH1A44mi358°
RW27
 BACM1C, BACM1D35mi125°
 NAKH1A85mi163°
 HUTR1E33mi274°
 HUTR1C, HUTR1D59mi274°
 PHUV1D47mi319°
 PHUV1C16mi319°
 PHUV1E100mi332°
 ANTH1D, ANTH1C44mi358°

STAR starting pointsdistanceinbound heading
RW09
 TORE1A59.294°
 PHUV1C16.0139°
 PHAD1B, PHAD1C16.3334°
RW27
 HUTR2C16.194°
 HUTR1B, HUTR1A59.294°
 PHUV1A, PHUV1B46.6139°
 ANTH1B, ANTH1A43.8178°
 BIPH1A16.2214°
 BACM1A, BACM1B35.4305°
 PHAD2A16.3334°
 NAMB1B, NAMB1A16.3340°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW09-ZHUTRO (94°)HUTRO 4000ft
PB091 (5mi, 96°) 2500ft
RW09-ZPB092 (62°)PB092 4000ft
35NM (3mi, 3°) 3300ft
PB091 (4mi, 3°) 2500ft
RW09-ZPB093 (125°)PB093 4000ft
PB091 (7mi, 184°) 2500ft
 RNAVPB091 2500ft
PB090 (4mi, 93°) 1970ft
VVPB (7mi, 93°) 93ft
PB701 (2mi, 93°)
PB702 (13mi, 3°) 2000ft
PB702 (turn) 2000ft
RW27PB402 (241°)PB402 4000ft
PB401 (7mi, 183°) 2500ft
 RNAVPB401 2500ft
PB400 (5mi, 273°) 1650ft
PB600 (4mi, 273°) 413ft
PB601 (5mi, 273°)
PB602 (15mi, 3°) 3000ft
PB602 (turn) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ANTH1AHUENDBleft245 (65)°> 7000ft1.0min timedICAO rules
ANTH1BPBFIXright85 (265)°> 6200ft1.0min timedICAO rules
BACM1AHUENDBleft245 (65)°> 7000ft1.0min timedICAO rules
BACM1BPBFIXright85 (265)°> 6200ft1.0min timedICAO rules
BIPH1ABIPHUVHFleft342 (162)°6000ft - 14000ft1.0min timed230
BIPH1APB402VHFleft4 (184)°4000ft - 14000ft1.0min timed230
HUTR1AHUENDBleft245 (65)°> 7000ft1.0min timedICAO rules
HUTR1BPBFIXright85 (265)°> 6200ft1.0min timedICAO rules
HUTR2CHUTROVHFleft247 (67)°13000ft - 14000ft1.0min timed230
HUTR2CPB402VHFleft4 (184)°4000ft - 14000ft1.0min timed230
NAMB1AHUENDBleft245 (65)°> 7000ft1.0min timedICAO rules
NAMB1BPBFIXright85 (265)°> 6200ft1.0min timedICAO rules
PHAD1BPB094VHFleft116 (296)°6000ft - 14000ft1.0min timed230
PHAD1BPHADEVHFleft157 (337)°8000ft - 14000ft1.0min timed230
PHAD1CPB093VHFright5 (185)°4000ft - 14000ft1.0min timed230
PHAD1CPHADEVHFleft157 (337)°8000ft - 14000ft1.0min timed230
PHAD2APB402VHFleft4 (184)°4000ft - 14000ft1.0min timed230
PHAD2APHADEVHFleft157 (337)°8000ft - 14000ft1.0min timed230
PHUV1AHUENDBleft245 (65)°> 7000ft1.0min timedICAO rules
PHUV1BPBFIXright85 (265)°> 6200ft1.0min timedICAO rules
PHUV1CPB093VHFright5 (185)°4000ft - 14000ft1.0min timed230
PHUV1CPHUVAVHFright5 (185)°5000ft - 14000ft1.0min timed230
TORE1APB888VHFleft275 (95)°7000ft - 14000ft1.0min timed230
*) magnetic outbound (inbound) holding course
