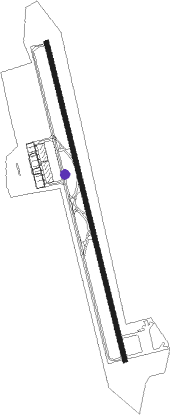

Mandalay - Mandalay Intl
Airport details
| Country | Myanmar |
| State | Mandalay |
| Region | VY |
| Airspace | Yangon Ctr |
| Municipality | Tada-U Township |
| Elevation | 297ft (91m) |
| Timezone | GMT +6.5 |
| Coordinates | 21.70107, 95.97746 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | VYMD |
| IATA code | MDL |
| FAA code | n/a |
Communication
| Mandalay Intl Ground Control | 121.725 |
| Mandalay Intl Tower | 118.600 |
| Mandalay Intl Approach | 119.200 |
Approach frequencies
| ILS-cat-I | RW17 | 110.5 | 18.00mi |
| 3° GS | RW17 | 110.5 | 18.00mi |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| MIA | MANDALAY VOR/DME | 0.6 | 10° | 116.30 |
| MIA | MANDALAY NDB | 0.9 | 144° | 259 |
| MDY | MANDALAY VOR/DME | 16.3 | 33° | 112.80 |
| AS | ANISAKAN NDB | 28.1 | 59° | 345 |
| MKT | MEIKTILA NDB | 46.1 | 185° | 350 |
| MY | MONYWAR NDB | 58.1 | 300° | 570 |
| HHO | HEHO VOR/DME | 73.1 | 140° | 113.20 |
Departure and arrival routes
| Transition altitude | 6000ft |
| Transition level | 7500ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW17 | |||
| IBON1S | 60mi | 52° | |
| THAZ1S | 34mi | 139° | |
| DOGI1S | 60mi | 163° | |
| RW35 | |||
| IBON1N | 60mi | 52° | |
| THAZ1N | 34mi | 139° | |
| DOGI1N | 60mi | 163° | |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| RW17 | |||
| THAD1E | 16.3 | 213° | |
| HEHO1E | 26.6 | 319° | |
| DOGI1E | 60.2 | 343° | |
| RW35 | |||
| IBON1W | 60.1 | 232° | |
| THAZ1W | 33.9 | 319° | |
| DOGI1W | 60.2 | 343° | |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW17 | MDN02 (169°) | MDN02 MDN05 (5mi, 168°) 2800ft |
| RW17 | MDN03 (144°) | MDN03 MDN05 (5mi, 80°) 2800ft |
| RW17 | THADU (213°) | THADU 6000ft MDN01 (6mi, 255°) 4200ft MDN05 (5mi, 255°) 2800ft |
| RNAV | MDN05 2800ft MDN04 (5mi, 170°) 2000ft VYMD (6mi, 170°) 336ft MDS07 (4mi, 170°) 1400ft MDS08 (10mi, 260°) 2900ft MDS09 (6mi, 348°) 3000ft MDS09 (turn) 3000ft | |
| RW35 | MDS01 (17°) | MDS01 5000ft MDS05 (5mi, 80°) 3000ft |
| RW35 | MDS02 (349°) | MDS02 5000ft MDS05 (5mi, 348°) 3000ft |
| RW35 | MDS03 (323°) | MDS03 5000ft MDS05 (5mi, 260°) 3000ft |
| RNAV | MDS05 3000ft MDS04 (5mi, 350°) 2000ft VYMD (6mi, 350°) 351ft MDN08 (4mi, 334°) 1400ft MDN09 (10mi, 250°) 2900ft MDN10 (5mi, 158°) 3600ft MDN10 (turn) 4000ft |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| DOGI1E | MALAY | VHF | right | 174 (354)° | 8000ft - 12000ft | 1.0min timed | 230 |
| HEHO1E | HEHOO | VHF | right | 143 (323)° | 10000ft - 12000ft | 1.0min timed | 230 |
| HEHO1E | MALAY | VHF | right | 174 (354)° | 8000ft - 12000ft | 1.0min timed | 230 |
| *) magnetic outbound (inbound) holding course | |||||||
Disclaimer
The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
