Mandalay - Mandalay Intl

Airport details

Country	Myanmar
State	Mandalay
Region	VY
Airspace	Yangon Ctr
Municipality	Tada-U Township
Elevation	297ft (91m)
Timezone	GMT +6.5
Coordinates	21.70107, 95.97746
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	VYMD
IATA code	MDL
FAA code	n/a

Communication

Mandalay Intl Ground Control	121.725
Mandalay Intl Tower	118.600
Mandalay Intl Approach	119.200

Approach frequencies

ILS-cat-I	RW17	110.5	18.00mi
3° GS	RW17	110.5	18.00mi

Runway info

Runway 17 / 35
	length	4287m (14065ft)
	bearing	170° / 350°
	width	61m (200ft)
	surface	asphalt
	blast zone	61m (200ft) / 61m (200ft)

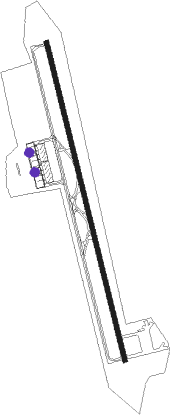

Airport layout - parking location Gate

Taxiway locations

Parking locations

Gate

Ramp

Nearby beacons

code	identifier	dist	bearing	frequency
MIA	MANDALAY VOR/DME	0.6	10°	116.30
MIA	MANDALAY NDB	0.9	144°	259
MDY	MANDALAY VOR/DME	16.3	33°	112.80
AS	ANISAKAN NDB	28.1	59°	345
MKT	MEIKTILA NDB	46.1	185°	350
MY	MONYWAR NDB	58.1	300°	570
HHO	HEHO VOR/DME	73.1	140°	113.20

Departure and arrival routes

Transition altitude

6000ft

Transition level

7500ft

SID end points		distance	outbound heading
RW17
	IBON1S	60mi	52°
	THAZ1S	34mi	139°
	DOGI1S	60mi	163°
RW35
	IBON1N	60mi	52°
	THAZ1N	34mi	139°
	DOGI1N	60mi	163°

STAR starting points		distance	inbound heading
RW17
	THAD1E	16.3	213°
	HEHO1E	26.6	319°
	DOGI1E	60.2	343°
RW35
	IBON1W	60.1	232°
	THAZ1W	33.9	319°
	DOGI1W	60.2	343°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW17	MDN02 (169°)	MDN02 MDN05 (5mi, 168°) 2800ft
RW17	MDN03 (144°)	MDN03 MDN05 (5mi, 80°) 2800ft
RW17	THADU (213°)	THADU 6000ft MDN01 (6mi, 255°) 4200ft MDN05 (5mi, 255°) 2800ft
	RNAV	MDN05 2800ft MDN04 (5mi, 170°) 2000ft VYMD (6mi, 170°) 336ft MDS07 (4mi, 170°) 1400ft MDS08 (10mi, 260°) 2900ft MDS09 (6mi, 348°) 3000ft MDS09 (turn) 3000ft
RW35	MDS01 (17°)	MDS01 5000ft MDS05 (5mi, 80°) 3000ft
RW35	MDS02 (349°)	MDS02 5000ft MDS05 (5mi, 348°) 3000ft
RW35	MDS03 (323°)	MDS03 5000ft MDS05 (5mi, 260°) 3000ft
	RNAV	MDS05 3000ft MDS04 (5mi, 350°) 2000ft VYMD (6mi, 350°) 351ft MDN08 (4mi, 334°) 1400ft MDN09 (10mi, 250°) 2900ft MDN10 (5mi, 158°) 3600ft MDN10 (turn) 4000ft

Holding patterns

STAR name	hold at	type	turn	heading*	altitude	leg	speed limit
DOGI1E	MALAY	VHF	right	174 (354)°	8000ft - 12000ft	1.0min timed	230
HEHO1E	HEHOO	VHF	right	143 (323)°	10000ft - 12000ft	1.0min timed	230
HEHO1E	MALAY	VHF	right	174 (354)°	8000ft - 12000ft	1.0min timed	230
*) magnetic outbound (inbound) holding course
