Airports for X-Plane

Surabaya - Juanda Intl

Airport details

CountryIndonesia
StateEast Java
RegionWA
AirspaceUjung Pandang Ctr
MunicipalitySedati
Elevation6ft (2m)
TimezoneGMT +7
Coordinates-7.38361, 112.78000
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeWARR
IATA codeSUB
FAA coden/a

Communication

Juanda Intl ATIS128.200
Juanda Intl Ground Control118.900
Juanda Intl Tower118.100
Juanda Intl Tower118.300
Juanda Intl SURABAYA DIR119.100
Juanda Intl SURABAYA EAST CON119.200
Juanda Intl SURABAYA WEST CON125.100

Approach frequencies

ILS-cat-IRW10110.118.00mi
3° GSRW10110.118.00mi
Nearby Points of Interest:
Trowulan

Runway info

Runway 10 / 28
 length2998m (9836ft)
 bearing99° / 279°
 width45m (148ft)
 surfaceasphalt
 blast zone100m (328ft) / 100m (328ft)

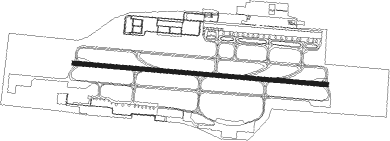

Airport layout


Taxiway locations

 N1  N2  N3  N4  N5  N6  N7  NP1
 NP2  S1  S2  S3  S4  S5  S6  SP1
 SP2
Parking locations

 1  10  10A  11  12  13  14  15
 16  17  18  19  2  20  21  22
 23  24  25  26  27  28  29  3
 30  4  5  6  7  8  9  A1
 A10  A11  A12  A13  A14  A2  A3  A4
 A5  A5T  A6  A7  A8  A9  H2  H3
 H4  Navy

Nearby beacons

codeidentifierdistbearingfrequency
SBRSURABAYA VOR/DME0.7318°113.40
LWLAWANG NDB26.8192°290
ABDMALANG VOR/DME33.2187°116.10
MLMALANG NDB33.2187°342

Departure and arrival routes

Transition altitude11000ft
Transition level13000ft
SID end pointsdistanceoutbound heading
RW10
 RAMP2F76mi27°
 PEDS2F76mi71°
 ENTA3K97mi102°
 MOVM1A77mi120°
 LASE5F83mi303°
RW28
 RAMP2G76mi27°
 PEDS2G76mi71°
 ENTA3L97mi102°
 MOVM1B77mi120°
 LASE5G83mi303°

STAR starting pointsdistanceinbound heading
RW10
 RUPK1D184.0128°
 SUMD1H190.1151°
 RITB1C90.8186°
 KOLT1E83.3229°
 ENTA3M96.7282°
 MOVM1C76.6300°
RW28
 RUPK1E184.0128°
 SUMD1J190.1151°
 IKAP1A162.3206°
 KOLT1F83.3229°
 ENTA3N96.7282°
 MOVM1D76.6300°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW10LOTEK (100°)LOTEK 3500ft
BETSA (3mi, 99°) 2700ft
 RNAVBETSA 2700ft
TENAN (4mi, 99°) 2000ft
WARR (7mi, 102°) 61ft
SADPU (15mi, 100°) 3500ft
SADPU (turn) 3500ft
RW28SADPU (280°)SADPU 3500ft
GOLEK (3mi, 289°) 2700ft
 RNAVGOLEK 2700ft
TEPET (4mi, 279°) 2000ft
WARR (7mi, 277°) 58ft
LOTEK (15mi, 280°) 3500ft
LOTEK (turn) 3500ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BA3HENKUKVHFleft280 (100)°7000ft - 9000ft1.0min timedICAO rules
BA3HLOTEKVHFright278 (98)°3000ft - 6000ft1.0min timedICAO rules
BA3HRIGPAVHFleft292 (112)°10000ft - 13000ft1.0min timedICAO rules
BA3JSADPUVHFright101 (281)°3500ft - 6000ft1.0min timedICAO rules
BA3JVERSAVHFright101 (281)°7000ft - 9000ft1.0min timedICAO rules
ENTA3MENKUKVHFleft280 (100)°7000ft - 9000ft1.0min timedICAO rules
ENTA3MLOTEKVHFright278 (98)°3000ft - 6000ft1.0min timedICAO rules
ENTA3NBOGOMVHFright101 (281)°10000ft - 13000ft1.0min timedICAO rules
ENTA3NSADPUVHFright101 (281)°3500ft - 6000ft1.0min timedICAO rules
ENTA3NVERSAVHFright101 (281)°7000ft - 9000ft1.0min timedICAO rules
IKAP1AEMARAVHFleft11 (191)°10000ft - 13000ft1.0min timedICAO rules
IKAP1ASADPUVHFright101 (281)°3500ft - 6000ft1.0min timedICAO rules
IKAP1AVERSAVHFright101 (281)°7000ft - 9000ft1.0min timedICAO rules
KOLT1EEMSUBVHFleft352 (172)°10000ft - 13000ft1.0min timedICAO rules
KOLT1ELOTEKVHFright278 (98)°3000ft - 6000ft1.0min timedICAO rules
KOLT1FEMARAVHFleft11 (191)°10000ft - 13000ft1.0min timedICAO rules
KOLT1FSADPUVHFright101 (281)°3500ft - 6000ft1.0min timedICAO rules
KOLT1FVERSAVHFright101 (281)°7000ft - 9000ft1.0min timedICAO rules
MOVM1CENKUKVHFleft280 (100)°7000ft - 9000ft1.0min timedICAO rules
MOVM1CLOTEKVHFright278 (98)°3000ft - 6000ft1.0min timedICAO rules
MOVM1DBOGOMVHFright101 (281)°10000ft - 13000ft1.0min timedICAO rules
MOVM1DSADPUVHFright101 (281)°3500ft - 6000ft1.0min timedICAO rules
MOVM1DVERSAVHFright101 (281)°7000ft - 9000ft1.0min timedICAO rules
RITB1CEMSUBVHFleft352 (172)°10000ft - 13000ft1.0min timedICAO rules
RITB1CLOTEKVHFright278 (98)°3000ft - 6000ft1.0min timedICAO rules
RUPK1DEMSUBVHFleft352 (172)°10000ft - 13000ft1.0min timedICAO rules
RUPK1DLOTEKVHFright278 (98)°3000ft - 6000ft1.0min timedICAO rules
RUPK1EEMARAVHFleft11 (191)°10000ft - 13000ft1.0min timedICAO rules
RUPK1EEMSUBVHFleft352 (172)°10000ft - 13000ft1.0min timedICAO rules
RUPK1ESADPUVHFright101 (281)°3500ft - 6000ft1.0min timedICAO rules
RUPK1EVERSAVHFright101 (281)°7000ft - 9000ft1.0min timedICAO rules
SUMD1HEMSUBVHFleft352 (172)°10000ft - 13000ft1.0min timedICAO rules
SUMD1HLOTEKVHFright278 (98)°3000ft - 6000ft1.0min timedICAO rules
SUMD1JEMARAVHFleft11 (191)°10000ft - 13000ft1.0min timedICAO rules
SUMD1JEMSUBVHFleft352 (172)°10000ft - 13000ft1.0min timedICAO rules
SUMD1JSADPUVHFright101 (281)°3500ft - 6000ft1.0min timedICAO rules
SUMD1JVERSAVHFright101 (281)°7000ft - 9000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
