Airports4XP | WARR | Surabaya

Surabaya - Juanda Intl

Airport details

Country	Indonesia
State	East Java
Region	WA
Airspace	Ujung Pandang Ctr
Municipality	Sedati
Elevation	6ft (2m)
Timezone	GMT +7
Coordinates	-7.38361, 112.78000
Magnetic var	0.6°
Type	land
Available since	X-Plane v10.40
ICAO code	WARR
IATA code	SUB
FAA code	n/a

Communication

Juanda Intl ATIS	128.200
Juanda Intl Ground Control	118.900
Juanda Intl Tower	118.100
Juanda Intl Tower	118.300
Juanda Intl SURABAYA EAST CON	119.200
Juanda Intl SURABAYA WEST CON	125.100
Juanda Intl SURABAYA DIR	119.100

Approach frequencies

ILS-cat-I	RW10	110.1	18.00mi
3° GS	RW10	110.1	18.00mi

Nearby Points of Interest:

Trowulan

Runway info

Runway 10 / 28
	length	2998m (9836ft)
	bearing	99° / 279°
	width	45m (148ft)
	surface	asphalt
	blast zone	100m (328ft) / 100m (328ft)

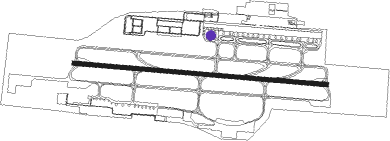

Airport layout - parking location 29

Taxiway locations

Parking locations

Recommended scenery file

Type	3D
Author	CleverestEU
Released	04 May 2025
Features	› has taxi route › has ground routes

Nearby beacons

code	identifier	dist	bearing	frequency
SBR	SURABAYA VOR/DME	0.7	318°	113.40
LW	LAWANG NDB	26.8	192°	290
ABD	MALANG VOR/DME	33.2	187°	116.10
ML	MALANG NDB	33.2	187°	342

Departure and arrival routes

Transition altitude

11000ft

Transition level

13000ft

SID end points		distance	outbound heading
RW10
	RAMP2F	76mi	27°
	PEDS2F	76mi	71°
	ENTA3K	97mi	102°
	MOVM1A	77mi	120°
	LASE5F	83mi	303°
RW28
	RAMP2G	76mi	27°
	PEDS2G	76mi	71°
	ENTA3L	97mi	102°
	MOVM1B	77mi	120°
	LASE5G	83mi	303°

STAR starting points		distance	inbound heading
RW10
	RUPK1D	184.0	128°
	SUMD1H	190.1	151°
	RITB1C	90.8	186°
	KOLT1E	83.3	229°
	ENTA3M	96.7	282°
	MOVM1C	76.6	300°
RW28
	RUPK1E	184.0	128°
	SUMD1J	190.1	151°
	IKAP1A	162.3	206°
	KOLT1F	83.3	229°
	ENTA3N	96.7	282°
	MOVM1D	76.6	300°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW10	LOTEK (100°)	LOTEK 3500ft BETSA (3mi, 99°) 2700ft
	RNAV	BETSA 2700ft TENAN (4mi, 99°) 2000ft WARR (7mi, 102°) 61ft SADPU (15mi, 100°) 3500ft SADPU (turn) 3500ft
RW28	SADPU (280°)	SADPU 3500ft GOLEK (3mi, 289°) 2700ft
	RNAV	GOLEK 2700ft TEPET (4mi, 279°) 2000ft WARR (7mi, 277°) 58ft LOTEK (15mi, 280°) 3500ft LOTEK (turn) 3500ft

Holding patterns

STAR name	hold at	type	turn	heading*	altitude	leg	speed limit
BA3H	ENKUK	VHF	left	280 (100)°	7000ft - 9000ft	1.0min timed	ICAO rules
BA3H	LOTEK	VHF	right	278 (98)°	3000ft - 6000ft	1.0min timed	ICAO rules
BA3H	RIGPA	VHF	left	292 (112)°	10000ft - 13000ft	1.0min timed	ICAO rules
BA3J	SADPU	VHF	right	101 (281)°	3500ft - 6000ft	1.0min timed	ICAO rules
BA3J	VERSA	VHF	right	101 (281)°	7000ft - 9000ft	1.0min timed	ICAO rules
ENTA3M	ENKUK	VHF	left	280 (100)°	7000ft - 9000ft	1.0min timed	ICAO rules
ENTA3M	LOTEK	VHF	right	278 (98)°	3000ft - 6000ft	1.0min timed	ICAO rules
ENTA3N	BOGOM	VHF	right	101 (281)°	10000ft - 13000ft	1.0min timed	ICAO rules
ENTA3N	SADPU	VHF	right	101 (281)°	3500ft - 6000ft	1.0min timed	ICAO rules
ENTA3N	VERSA	VHF	right	101 (281)°	7000ft - 9000ft	1.0min timed	ICAO rules
IKAP1A	EMARA	VHF	left	11 (191)°	10000ft - 13000ft	1.0min timed	ICAO rules
IKAP1A	SADPU	VHF	right	101 (281)°	3500ft - 6000ft	1.0min timed	ICAO rules
IKAP1A	VERSA	VHF	right	101 (281)°	7000ft - 9000ft	1.0min timed	ICAO rules
KOLT1E	EMSUB	VHF	left	352 (172)°	10000ft - 13000ft	1.0min timed	ICAO rules
KOLT1E	LOTEK	VHF	right	278 (98)°	3000ft - 6000ft	1.0min timed	ICAO rules
KOLT1F	EMARA	VHF	left	11 (191)°	10000ft - 13000ft	1.0min timed	ICAO rules
KOLT1F	SADPU	VHF	right	101 (281)°	3500ft - 6000ft	1.0min timed	ICAO rules
KOLT1F	VERSA	VHF	right	101 (281)°	7000ft - 9000ft	1.0min timed	ICAO rules
MOVM1C	ENKUK	VHF	left	280 (100)°	7000ft - 9000ft	1.0min timed	ICAO rules
MOVM1C	LOTEK	VHF	right	278 (98)°	3000ft - 6000ft	1.0min timed	ICAO rules
MOVM1D	BOGOM	VHF	right	101 (281)°	10000ft - 13000ft	1.0min timed	ICAO rules
MOVM1D	SADPU	VHF	right	101 (281)°	3500ft - 6000ft	1.0min timed	ICAO rules
MOVM1D	VERSA	VHF	right	101 (281)°	7000ft - 9000ft	1.0min timed	ICAO rules
RITB1C	EMSUB	VHF	left	352 (172)°	10000ft - 13000ft	1.0min timed	ICAO rules
RITB1C	LOTEK	VHF	right	278 (98)°	3000ft - 6000ft	1.0min timed	ICAO rules
RUPK1D	EMSUB	VHF	left	352 (172)°	10000ft - 13000ft	1.0min timed	ICAO rules
RUPK1D	LOTEK	VHF	right	278 (98)°	3000ft - 6000ft	1.0min timed	ICAO rules
RUPK1E	EMARA	VHF	left	11 (191)°	10000ft - 13000ft	1.0min timed	ICAO rules
RUPK1E	EMSUB	VHF	left	352 (172)°	10000ft - 13000ft	1.0min timed	ICAO rules
RUPK1E	SADPU	VHF	right	101 (281)°	3500ft - 6000ft	1.0min timed	ICAO rules
RUPK1E	VERSA	VHF	right	101 (281)°	7000ft - 9000ft	1.0min timed	ICAO rules
SUMD1H	EMSUB	VHF	left	352 (172)°	10000ft - 13000ft	1.0min timed	ICAO rules
SUMD1H	LOTEK	VHF	right	278 (98)°	3000ft - 6000ft	1.0min timed	ICAO rules
SUMD1J	EMARA	VHF	left	11 (191)°	10000ft - 13000ft	1.0min timed	ICAO rules
SUMD1J	EMSUB	VHF	left	352 (172)°	10000ft - 13000ft	1.0min timed	ICAO rules
SUMD1J	SADPU	VHF	right	101 (281)°	3500ft - 6000ft	1.0min timed	ICAO rules
SUMD1J	VERSA	VHF	right	101 (281)°	7000ft - 9000ft	1.0min timed	ICAO rules
*) magnetic outbound (inbound) holding course

Actual weather data

METAR WARR 061700Z 27003KT 4000 HZ FEW020 26/26 Q1008 NOSIG

TAF WARR 061700Z 0618/0718 26005KT 5000 HZ FEW020 BECMG 0700/0702 11008KT 9999 NSW

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
