Airports4XP | WMKK | Sepang/kuala Lumpur - Kuala Lumpur Intl

Sepang/kuala Lumpur - Kuala Lumpur Intl - Sepang

Airport details

Country	Malaysia
State	Selangor
Region	WM
Airspace	Kuala Lumpur Ctr
Municipality	Sepang
Elevation	67ft (20m)
Timezone	GMT +8
Coordinates	2.74328, 101.69796
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	WMKK
IATA code	KUL
FAA code	n/a

Communication

Kuala Lumpur Intl - Sepang ATIS	126.450
Kuala Lumpur Intl - Sepang Approach	124.200
Kuala Lumpur Intl - Sepang LUMPUR DEL	126.000
Kuala Lumpur Intl - Sepang Ground Control	121.650
Kuala Lumpur Intl - Sepang Tower	118.800
Kuala Lumpur Intl - Sepang Approach	119.450
Kuala Lumpur Intl - Sepang Approach	125.100
Kuala Lumpur Intl - Sepang Departure	135.250

Approach frequencies

ILS-cat-I	RW14R	110.7	18.00mi
ILS-cat-I	RW33	111.5	18.00mi
ILS-cat-I	RW32L	111.9	18.00mi
ILS-cat-I	RW15	110.1	18.00mi
ILS-cat-I	RW32R	109.1	18.00mi
ILS-cat-I	RW14L	108.5	18.00mi
3° GS	RW14R	110.7	18.00mi
3° GS	RW14L	108.5	18.00mi
3° GS	RW32R	109.1	18.00mi
3° GS	RW33	111.5	18.00mi
3° GS	RW15	110.1	18.00mi
3° GS	RW32L	111.9	18.00mi

Runway info

Runway 14L / 32R
	length	4034m (13235ft)
	bearing	146° / 326°
	width	60m (197ft)
	surface	asphalt
	blast zone	120m (394ft) / 0m (0ft)
Runway 15 / 33
	length	3975m (13041ft)
	bearing	146° / 326°
	width	60m (197ft)
	surface	asphalt
	blast zone	120m (394ft) / 120m (394ft)
Runway 14R / 32L
	length	4015m (13173ft)
	bearing	146° / 326°
	width	60m (197ft)
	surface	asphalt
	blast zone	180m (591ft) / 120m (394ft)

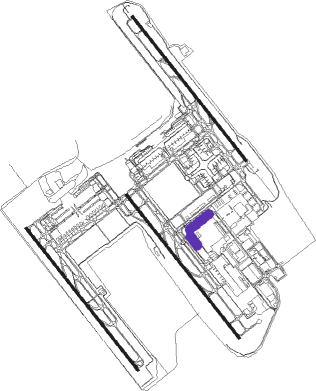

Airport layout - parking location MasCargo

Taxiway locations

Parking locations

Nearby beacons

code	identifier	dist	bearing	frequency
VSP	SEPANG VOR/DME	1.8	287°	114.40
VKL	KUALA LUMPUR VOR/DME	2.6	115°	116.10
CE	CALEDONIAN (KUALA LUMPUR) NDB	36.2	336°	205
VBA	BATU ARANG VOR/DME	37.7	337°	114.70
VMK	MALACCA VOR/DME	43.9	132°	117.40

Departure and arrival routes

Transition altitude

11000ft

Transition level

13000ft

SID end points		distance	outbound heading
RW14L
	PIBO1A	42mi	30°
	KIMA1A	47mi	57°
	RUSB1A	65mi	132°
	MITO1A	52mi	152°
	SALA1A	33mi	194°
	PUGE1A	93mi	295°
	IBUK1A	75mi	313°
	ATIM1A	70mi	322°
	BIKD1A	68mi	346°
RW14R
	PIBO1B	42mi	30°
	KIMA1B	47mi	57°
	RUSB1B	65mi	132°
	MITO1B	52mi	152°
	SALA1B	33mi	194°
	PUGE1B	93mi	295°
	IBUK1B	75mi	313°
	ATIM1B	70mi	322°
	SUBA1V	15mi	346°
	BIKD1B	68mi	346°
RW15
	PIBO1C	42mi	30°
	KIMA1C	47mi	57°
	RUSB1C	65mi	132°
	MITO1C	52mi	152°
	SALA1C	33mi	194°
	PUGE1C	93mi	295°
	IBUK1C	75mi	313°
	ATIM1C	70mi	322°
	BIKD1C	68mi	346°
RW32L
	PIBO1E	42mi	30°
	KIMA1E	47mi	57°
	RUSB1E	65mi	132°
	MITO1E	52mi	152°
	SALA1E	33mi	194°
	PUGE1E	93mi	295°
	IBUK1E	75mi	313°
	ATIM1E	70mi	322°
	BIKD1E	68mi	346°
RW32R
	PIBO1D	42mi	30°
	KIMA1D	47mi	57°
	RUSB1D	65mi	132°
	MITO1D	52mi	152°
	SALA1D	33mi	194°
	PUGE1D	93mi	295°
	IBUK1D	75mi	313°
	ATIM1D	70mi	322°
	BIKD1D	68mi	346°
	SUBA1Z	15mi	346°
RW33
	PIBO1F	42mi	30°
	KIMA1F	47mi	57°
	RUSB1F	65mi	132°
	MITO1F	52mi	152°
	SALA1F	33mi	194°
	PUGE1F	93mi	295°
	IBUK1F	75mi	313°
	ATIM1F	70mi	322°
	BIKD1F	68mi	346°

STAR starting points		distance	inbound heading
ALL
	SALA1G, SALA1H	33.2	14°
	PUGE1G, PUGE1H	93.0	115°
	NIRE1G, NIRE1H	82.5	123°
	KAKA1H, KAKA1G	67.7	155°
	PULI1G, PULI1H	57.1	192°
	SARO1H, SARO1G	58.5	267°
	GUPT1G, GUPT1H	66.4	302°
RW14 (ALL)
	SALA1K	33.2	14°
	PUGE1K	93.0	115°
	NIRE1K	82.5	123°
	KAKA1K	67.7	155°
	PULI1K	57.1	192°
	SARO1K	58.5	267°
	GUPT1K	66.4	302°
RW15
	SALA1K	33.2	14°
	PUGE1K	93.0	115°
	NIRE1K	82.5	123°
	KAKA1K	67.7	155°
	PULI1K	57.1	192°
	SARO1K	58.5	267°
	GUPT1K	66.4	302°
RW32 (ALL)
	SALA1J	33.2	14°
	PUGE1J	93.0	115°
	NIRE1J	82.5	123°
	KAKA1J	67.7	155°
	PULI1J	57.1	192°
	SARO1J	58.5	267°
	GUPT1J	66.4	302°
RW33
	SALA1J	33.2	14°
	PUGE1J	93.0	115°
	NIRE1J	82.5	123°
	KAKA1J	67.7	155°
	PULI1J	57.1	192°
	SARO1J	58.5	267°
	GUPT1J	66.4	302°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW14L	EGURI (236°)	EGURI KK894 (6mi, 236°) 10000ft KK895 (13mi, 326°) 7000ft KK896 (8mi, 326°) 6000ft RULPA (5mi, 236°) 4500ft
RW14L	MESUP (56°)	MESUP 8000ft KK899 (7mi, 23°) 6000ft KK897 (17mi, 326°) 4500ft RULPA (8mi, 56°) 4500ft
RW14L	NUPKU (146°)	NUPKU 5000ft RULPA (10mi, 138°) 4500ft
	RNAV	RULPA 4500ft KK950 (6mi, 146°) 4500ft WMKK (16mi, 151°) 106ft KK951 (3mi, 115°) KK952 (9mi, 116°) 3000ft EGURI (12mi, 358°) 5500ft EGURI (turn) 5500ft
RW14R	EGURI (236°)	EGURI KK894 (6mi, 236°) 10000ft KK895 (13mi, 326°) 7000ft KK896 (8mi, 326°) 5000ft AREBU (6mi, 236°) 3500ft
RW14R	MESUP (56°)	MESUP 8000ft KK899 (7mi, 23°) 6000ft KK897 (17mi, 326°) 3500ft AREBU (6mi, 56°) 3500ft
RW14R	NUPKU (146°)	NUPKU 5000ft LUVNI (7mi, 146°) 3500ft AREBU (3mi, 146°) 3500ft
	RNAV	AREBU 3500ft KK953 (10mi, 146°) 3500ft WMKK (11mi, 146°) 106ft KK954 (6mi, 146°) 1000ft MESUP (14mi, 262°) 2500ft MESUP (turn) 2500ft
RW15	EGURI (236°)	EGURI KK894 (6mi, 236°) 10000ft KK895 (13mi, 326°) 6000ft KK896 (8mi, 326°) 4500ft AREBU (6mi, 236°) 3500ft VAKTU (6mi, 157°) 2500ft
RW15	MESUP (56°)	MESUP 8000ft KK899 (7mi, 23°) 6000ft KK898 (11mi, 326°) 2500ft VAKTU (5mi, 56°) 2500ft
RW15	NUPKU (146°)	NUPKU 5000ft LUVNI (7mi, 146°) 3500ft AREBU (3mi, 146°) 3500ft VAKTU (6mi, 157°) 2500ft
	RNAV	VAKTU 2500ft KK955 (7mi, 146°) 2500ft WMKK (8mi, 138°) 80ft KK956 (2mi, 181°) MESUP (11mi, 245°) 2500ft MESUP (turn) 2500ft
RW32L	EGURI (236°)	EGURI KK894 (6mi, 236°) 10000ft KK893 (13mi, 146°) 7000ft KK892 (7mi, 146°) 5000ft KARBO (6mi, 236°) 3500ft
RW32L	MESUP (56°)	MESUP 8000ft KK887 (7mi, 88°) 7000ft KK888 (7mi, 146°) 5000ft KK889 (9mi, 146°) 3500ft KARBO (6mi, 56°) 3500ft
RW32L	SULDI (317°)	SULDI 6000ft KK891 (6mi, 290°) 3500ft KARBO (5mi, 312°) 3500ft
	RNAV	KARBO 3500ft KK960 (7mi, 326°) 3500ft WMKK (13mi, 326°) 100ft KK961 (1mi, 326°) 1000ft KK962 (10mi, 312°) 2800ft PAPGO (17mi, 239°) 3500ft PAPGO (turn) 3500ft
RW32R	EGURI (236°)	EGURI KK894 (6mi, 236°) 10000ft KK893 (13mi, 146°) 7000ft KK892 (7mi, 146°) 6000ft MOTKA (5mi, 236°) 4500ft
RW32R	MESUP (56°)	MESUP 8000ft KK887 (7mi, 88°) 7000ft KK888 (7mi, 146°) 7000ft KK889 (9mi, 146°) 4500ft MOTKA (8mi, 56°) 4500ft
RW32R	SULDI (317°)	SULDI 6000ft KK891 (6mi, 290°) 4500ft MOTKA (5mi, 326°) 4500ft
	RNAV	MOTKA 4500ft KK957 (5mi, 326°) 4500ft WMKK (14mi, 321°) 125ft KK958 (2mi, 6°) KK959 (7mi, 340°) 2400ft EGURI (13mi, 98°) 5500ft EGURI (turn) 5500ft
RW33	EGURI (236°)	EGURI KK894 (6mi, 236°) 10000ft KK893 (13mi, 146°) 7000ft KK892 (7mi, 146°) 5000ft EGUMU (8mi, 236°) 2500ft BEGIN (5mi, 326°) 2500ft
RW33	MESUP (56°)	MESUP 8000ft KK887 (7mi, 88°) 7000ft KK888 (7mi, 146°) 5000ft KK889 (9mi, 146°) 2500ft EGUMU (5mi, 56°) 2500ft BEGIN (5mi, 326°) 2500ft
RW33	SULDI (317°)	SULDI 6000ft KK891 (6mi, 290°) 3500ft KK890 (3mi, 290°) 2500ft EGUMU (3mi, 310°) 2500ft BEGIN (5mi, 326°) 2500ft
	RNAV	BEGIN 2500ft KK963 (5mi, 326°) 2500ft WMKK (9mi, 333°) 80ft KK964 (1mi, 256°) MESUP (11mi, 234°) 2500ft MESUP (turn) 2500ft

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
