Airports for X-Plane

Langkawi - Langkawi Intl

Airport details

CountryMalaysia
StateKedah
RegionWM
AirspaceKuala Lumpur Ctr
MunicipalityLangkawi
Elevation25ft (8m)
TimezoneGMT +8
Coordinates6.33945, 99.73356
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeWMKL
IATA codeLGK
FAA coden/a

Communication

Langkawi Intl ATIS128.200
Langkawi Intl Ground Control121.800
Langkawi Intl Tower118.500
Langkawi Intl Approach119.400
Langkawi Intl Departure119.400

Approach frequencies

ILS-cat-IRW03110.718.00mi
3° GSRW03110.718.00mi

Runway info

Runway 03 / 21
 length3826m (12552ft)
 bearing34° / 214°
 width45m (148ft)
 surfaceasphalt
 displ threshold613m (2011ft) / 0m (0ft)
 blast zone65m (213ft) / 61m (200ft)

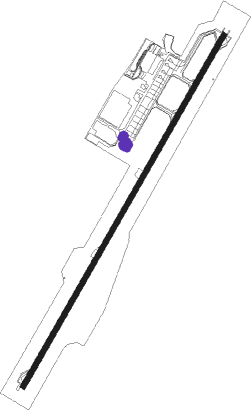

Airport layout - parking location GA


Taxiway locations

 A  B  C
Parking locations

 1  10  11  12  13  14  15  2
 3  4  5  6  7  8  9  GA

Nearby beacons

codeidentifierdistbearingfrequency
VPLLANGKAWI VOR/DME1.139°114.10
ATALOR STAR NDB39.5106°385
VASALOR SETAR VOR/DME40.6103°113.60
HTYHAT YAI VOR/DME52.948°115.30
VBTBUTTERWORTH VORTAC65143°113.30
SKSONGKHLA NDB72.746°410
SKLSONGKHLA VOR/DME72.746°113.50

Departure and arrival routes

Transition altitude11000ft
Transition level13000ft
SID end pointsdistanceoutbound heading
RW21
 MULO1D41mi103°
 MULO1B18mi126°
 ISTE1D, ISTE1B84mi134°
 ANDO1D, ANDO1B25mi140°
 KAPK1B, KAPK1D26mi152°
 RUVT1B, RUVT1D76mi162°
 AKRA1D, AKRA1B111mi291°

STAR starting pointsdistanceinbound heading
RW03
 AKRA1G110.7111°
 AKRA1E24.5113°
 VPL1G, SAGE1G40.6283°
 KAPK1E25.9332°
 KAPK1G, DAKO1E71.0334°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW03-YAGTOV (54°)AGTOV 3000ft
IBIRO (5mi, 104°) 2100ft
RW03-YDAKOV (34°)DAKOV 3000ft
IBIRO (7mi, 33°) 2100ft
RW03-YRIGSU (14°)RIGSU 3000ft
IBIRO (5mi, 324°) 2100ft
 RNAVIBIRO 2100ft
KL501 (3mi, 34°) 2100ft
WMKL (8mi, 34°) 66ft
GUDNO (12mi, 110°)
SATNI (10mi, 207°) 3000ft
RW03-ZDAKOV (34°)DAKOV 3000ft
VIKEM (5mi, 32°) 2100ft
LEBUK (9mi, 34°) 1100ft
RW03-ZKAPKO (332°)KAPKO 4200ft
SUNOG (19mi, 313°) 2100ft
KL430 (2mi, 328°) 1800ft
LEBUK (4mi, 1°) 1100ft
 RNAVLEBUK 1100ft
WMKL (5mi, 33°) 69ft
KL412 (turn)
KL418 (5mi, 101°) 3000ft
SATNI (12mi, 168°) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
DAKO1EDAKOVVHFleft214 (34)°> 3000ft1.0min timed230
*) magnetic outbound (inbound) holding course
