Airports for X-Plane

Kuala Terengganu - Kuala Terengganu Sultan Mahmud

Airport details

CountryMalaysia
StateTerengganu
RegionWM
AirspaceKuala Lumpur Ctr
MunicipalityKuala Nerus
Elevation20ft (6m)
TimezoneGMT +8
Coordinates5.38619, 103.10339
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeWMKN
IATA codeTGG
FAA coden/a

Communication

Kuala Terengganu Sultan Mahmud TERENGGANU Ground Control121.600
Kuala Terengganu Sultan Mahmud TERENGGANU Tower123.600

Approach frequencies

ILS-cat-IRW04108.118.00mi
3° GSRW04108.118.00mi

Runway info

Runway 04 / 22
 length3488m (11444ft)
 bearing44° / 224°
 width46m (150ft)
 surfaceasphalt
 blast zone0m (0ft) / 60m (197ft)

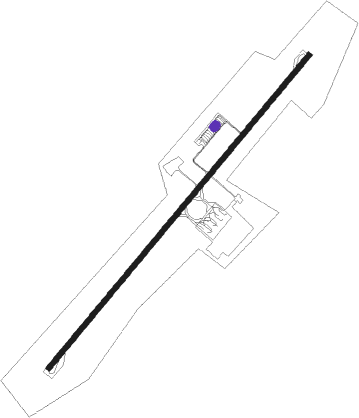

Airport layout - parking location GA8


Taxiway locations

 A  C  D
Parking locations

 Bay  GA1  GA10  GA11  GA2  GA3  GA6  GA7
 GA8  GA9

Nearby beacons

codeidentifierdistbearingfrequency
VKTKUALA TERENGGANU VOR/DME0189°115.40
VKRKUALA TERENGGANU VOR/DME2220°112.90
VGKGONG KEDAK VORTAC44.7303°116.60
VKPKERTEH VOR/DME54.8159°113.30
VKBKOTA BHARU VOR/DME66.3315°112.30

Departure and arrival routes

Transition altitude11000ft
Transition level13000ft
SID end pointsdistanceoutbound heading
RW04
 IKUKOC23mi18°
 GUNBOC35mi208°
 LASOBA, LASOBC27mi246°
 PALNOA, PALNOC28mi265°
RW22
 IKUKOD23mi18°
 LASOBB32mi238°
 LASOBD27mi246°
 PALNOB, PALNOD28mi265°

STAR starting pointsdistanceinbound heading
RW04
 GUNBOE, GUNBOG35.128°
 PALNOE, PALNOG27.785°
RW22
 GUNBOH, GUNBOF35.128°
 PALNOF, PALNOH27.785°
 IKUKOH23.1198°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW04-YIDSOD (44°)IDSOD 3600ft
TUSVO (4mi, 44°) 2500ft
 RNAVTUSVO 2500ft
KN511 (4mi, 44°) 2500ft
KN512 (3mi, 44°) 1500ft
WMKN (6mi, 43°) 77ft
(6189mi, 267°) 1000ft
KN513 (6191mi, 87°)
MEGUT (16mi, 224°) 5500ft
MEGUT (turn) 5500ft
RW04-ZEMROV (28°)EMROV 9000ft
KN435 (11mi, 25°) 6400ft
LANUS (6mi, 25°) 4600ft
KN423 (12mi, 25°) 1800ft
ABVAD (3mi, 35°) 1000ft
RW04-ZKALSO (44°)KALSO 4900ft
SASVU (7mi, 44°) 2700ft
KN408 (4mi, 44°) 2700ft
KN404 (3mi, 44°) 1900ft
ABVAD (3mi, 44°) 1000ft
RW04-ZOMUNO (326°)OMUNO 3000ft
KN455 (2mi, 215°) 3000ft
KN452 (6mi, 263°) 3000ft
ABVAD (6mi, 358°) 1000ft
 RNAVABVAD 1000ft
WMKN (4mi, 43°) 77ft
KN493 (3mi, 47°)
KN496 (7mi, 130°)
OMUNO (6mi, 215°) 3000ft
RW22-YATKUL (253°)ATKUL 2500ft
ARIMI (5mi, 315°) 1500ft
RW22-YIKUKO (198°)IKUKO 6500ft
ARIMI (15mi, 182°) 1500ft
RW22-YPOLOS (197°)POLOS 2500ft
ARIMI (5mi, 135°) 1500ft
 RNAVARIMI 1500ft
KN406 (4mi, 225°) 1500ft
WMKN (5mi, 226°) 70ft
(6189mi, 267°) 1500ft
KN514 (6184mi, 87°)
POLOS (11mi, 44°) 2500ft
RW22-ZEMROV (28°)EMROV 11000ft
AKNIT (19mi, 41°) 6500ft
TELUK (15mi, 35°) 3000ft
KN523 (4mi, 35°) 3000ft
KN521 (2mi, 18°) 3000ft
MOLSA (5mi, 293°) 1000ft
RW22-ZVENEV (225°)VENEV 1500ft
KN504 (5mi, 224°) 1500ft
MOLSA (2mi, 224°) 1000ft
 RNAVMOLSA 1000ft
WMKN (4mi, 227°) 70ft
KN593 (5mi, 223°)
KN596 (7mi, 130°)
TELUK (5mi, 35°) 3000ft
