Airports for X-Plane

Beijing - Beijing Capital Intl

Airport details

CountryChina
StateBeijing
RegionZB
AirspaceBeijing Ctr
MunicipalityChaoyang District
Elevation116ft (35m)
TimezoneGMT +8
Coordinates40.07333, 116.59834
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeZBAA
IATA codePEK
FAA coden/a

Communication

Beijing Capital Intl Beijing ATIS Arrival127.600
Beijing Capital Intl Beijing ATIS Departure128.650
Beijing Capital Intl Beijing Delivery121.650
Beijing Capital Intl Beijing Delivery121.600
Beijing Capital Intl Beijing Ground121.850
Beijing Capital Intl Beijing Ground121.700
Beijing Capital Intl Beijing Ground121.900
Beijing Capital Intl Beijing Ground121.750
Beijing Capital Intl Beijing Ground121.950
Beijing Capital Intl Beijing Ground121.800
Beijing Capital Intl Beijing Tower118.300
Beijing Capital Intl Beijing Tower118.500
Beijing Capital Intl Beijing Tower118.600
Beijing Capital Intl Beijing Tower118.050
Beijing Capital Intl Beijing Tower124.300
Beijing Capital Intl Beijing Approach119.425
Beijing Capital Intl Beijing Approach120.600
Beijing Capital Intl Beijing Approach125.500
Beijing Capital Intl Beijing Approach129.000
Beijing Capital Intl Beijing Approach119.700
Beijing Capital Intl Beijing Approach121.100
Beijing Capital Intl Beijing Approach125.800
Beijing Capital Intl Beijing Approach119.850
Beijing Capital Intl Beijing Approach124.400
Beijing Capital Intl Capital Approach126.100
Beijing Capital Intl Capital Approach119.000
Beijing Capital Intl Capital Approach120.200
Beijing Capital Intl Capital Approach125.050
Beijing Capital Intl Beijing Approach127.750

Approach frequencies

ILS-cat-IIIRW36R111.5518.00mi
ILS-cat-IIRW01108.518.00mi
ILS-cat-IRW19108.918.00mi
ILS-cat-IRW18L109.318.00mi
ILS-cat-IRW18R110.318.00mi
ILS-cat-IRW36L111.718.00mi
3.2° GSRW19108.918.00mi
3° GSRW36L111.718.00mi
3° GSRW18R110.318.00mi
3° GSRW36R111.5518.00mi
3° GSRW01108.518.00mi
3° GSRW18L109.318.00mi
Nearby Points of Interest:
Tongzhou Randeng Pagoda
-
Xihuang Temple
-
Ancestral Temple for Wen Tianxiang
-
Prince Fu Mansion
-
Former site of the Army and Navy Department of Qing Dynasty
-
Guanghua Temple
-
Home of Guomoruo
-
Southeast Corner Tower
-
Big Bell Temple
-
Asbury Church
-
St. Michael's Church
-
Beijing Shejitan
-
Pagoda of Monk Wansong
-
Zhongnanhai
-
Guangji Temple
-
Temple of Ancient Monarchs
-
Miaoying Temple
-
Dahui Temple
-
Zhalan Cemetery
-
Li Dazhao Former Residence
-
Temple of the Moon
-
Summer Palace
-
Pagoda of Cishou Temple

Runway info

Runway 01 / 19
 length3805m (12484ft)
 bearing351° / 171°
 width60m (197ft)
 surfaceconcrete
 blast zone120m (394ft) / 120m (394ft)
Runway 18L / 36R
 length3808m (12493ft)
 bearing171° / 351°
 width60m (197ft)
 surfaceasphalt
 blast zone59m (194ft) / 56m (184ft)
Runway 18R / 36L
 length3206m (10518ft)
 bearing171° / 351°
 width50m (164ft)
 surfaceasphalt
 blast zone60m (197ft) / 61m (200ft)

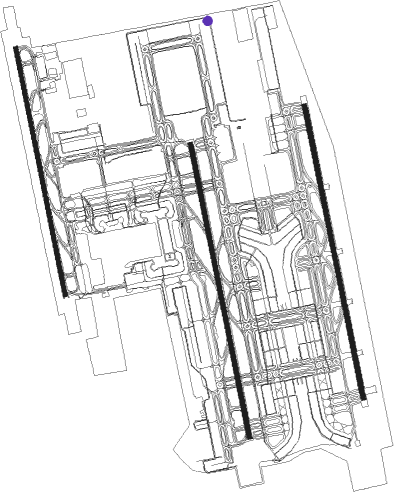

Airport layout - parking location N213


Taxiway locations

 A0  A1  A8  A9  C  C1  C2  D1
 D3  D4  D5  D6  D7  D9  E0  E1
 E2  E3  E4  E5  E6  E7  E8  F
 F0  F1  F2  F3  F4  F7  G  G3
 G4  G5  G6  G7  H  H0  H1  H2
 H4  H5  H6  H7  J  J1  J2  J3
 J4  K  K0  K1  K2  K3  K4  K5
 K6  K7  M  M0  M1  M2  M3  M4
 M5  M6  M7  P0  P1  P2  P3  P4
 P5  P6  P7  P8  P9  Q0  Q1  Q2
 Q3  Q4  Q5  Q6  Q8  Q9  S4  S5
 S6  S7  T1  T2  T3  T4  T5  T6
 U2  U3  U4  W0  W1  W2  W3  W4
 W5  W6  W7  W8  W9  Y1  Y2  Y3
 Y4  Y5  Y6  Y7  Z0  Z12  Z2  Z3
 Z4  Z6  Z7  Z8  Z9
Parking locations

 103  104  105  106  107  108  110  111
 112  113  114  115  116  205  206  207
 208  209  210  211  212  213  214  215
 216  217  218  219  220  221  222  223
 224  226  227  228  229  230  231  232
 233  234  235  236  237  238  239  240
 251  252  253  254  261  262  263  264
 301  302  303  304  305  306  307  308
 309  310  311  312  313  314  315  316
 317  318  319  320  321  322  323  324
 325  326  327  328  329  330  331  332
 333  334  335  336  337  351  352  353
 354  355  356  357  359  360  361  401
 402  403  404  405  406  407  408  409
 410  411  412  413  414  451  452  453
 454  455  456  457  458  459  460  461
 462  463  464  465  466  501  502  503
 504  505  506  507  508  509  510  511
 512  513  514  515  516  517  518  519
 520  521  522  523  524  525  526  527
 528  529  530  531  532  533  534  535
 536  551  552  553  554  555  556  557
 558  560  561  562  563  564  565  602
 603  604  605  606  608  609  610  611
 612  621  622  623  624  625  626  627
 628  629  630  631  632  633  634  635
 641  642  643  644  645  646  647  648
 649  650  651  652  701  702  703  704
 705  706  707  708  709  710  711  712
 713  714  721  722  723  724  725  726
 727  728  729  730  731  732  733  734
 735  801  802  803  804  805  806  807
 808  809  810  811  812  813  814  815
 951  952  953  954  956  957  958  Engine
 M1  M10  M11  M2  M3  M4  M5  M6
 M7  M8  M9  N101  N102  N103  N104  N105
 N106  N107  N108  N109  N110  N201  N202  N203
 N205  N206  N207  N208  N209  N210  N211  N212
 N213  W102  W103  W104  W105  W106  W107  W108
 W109  W110  W111  W112  W113  W201  W202  W203
 W204  W205  W206  W207  W208  W209  W210  W501
 W502  W503  W504  W505  W506  W507  W508  W509
 W510  W511

Nearby beacons

codeidentifierdistbearingfrequency
DKBEIJING CAPITAL NDB2.3206°354
ORBEIJING CAPITAL NDB2.9350°196
QUBEIJING CAPITAL NDB4.8172°240
PEKGUANZHUANG VOR/DME6.4100°114.70
SZYSHAZIYING VOR/DME7.9281°117.20
CUSHAHE NDB10.8282°555
OBHUAIROU NDB13.2344°380
WFXILIUHETUN NDB14.8115°395
HURHUAIROU VOR/DME16.830°113.60
JRLIANGXIANG NDB31.4235°475
CDQINGBAIKOU NDB36.6266°422
DXGDAXING VOR/DME37.2199°115.35
YVTANGHEKOU NDB39.63°514
CDYCHEDAOYU NDB41.651°292
VMSHIGEZHUANG NDB48.7159°280
VYKDAWANGZHUANG VOR/DME52.7182°112.70
TAJTIANJIN VOR/DME67.6142°112.10
CGTIANJIN NDB69.6142°339
TJKDONGLIHU VOR/DME69.6135°113.40

Departure and arrival routes

Transition altitude9850ft
Transition level118ft
SID end pointsdistanceoutbound heading
RW01
 DOT9ZD42mi17°
 LUL9ZD29mi99°
 MUG9YD90mi125°
 IGM9YD100mi131°
 IDK9ZD42mi357°
RW18L
 DOT8YD42mi17°
 MUG8ZD90mi125°
 IGM8ZD100mi131°
 ELK8ZD86mi177°
 RUS8YD56mi255°
 BOT8XD52mi266°
 IDK8YD42mi357°
RW18R
 RUS8ZD56mi255°
 BOT8ZD52mi266°
RW19
 DOT8ZD42mi17°
 LUL8ZD29mi99°
 MUG8YD90mi125°
 IGM8YD100mi131°
 BOT8YD52mi266°
 IDK8ZD42mi357°
RW36L
 MUG9XD90mi125°
 IGM9XD100mi131°
 ELK9YD86mi177°
 RUS9ZD56mi255°
RW36R
 DOT9YD42mi17°
 LUL9YD29mi99°
 MUG9ZD, MUG9WD90mi125°
 IGM9WD, IGM9ZD100mi131°
 ELK9ZD86mi177°
 RUS9YD56mi255°
 BOT9ZD52mi266°
 IDK9YD42mi357°

STAR starting pointsdistanceinbound heading
RW01
 AVB9ZA, DUG9ZA35.317°
 GUV9YA35.165°
RW18 (ALL)
 AVB8ZA86.29°
 GUV8ZA, DUG8ZA, DUG8YA28.3127°
 OSU8ZA44.5214°
 DUM8ZA111.0316°
RW19
 AVB8ZA86.29°
 DUG8YA, DUG8ZA, GUV8ZA28.3127°
 OSU8ZA44.5214°
 DUM8ZA111.0316°
RW36 (ALL)
 AVB9ZA, DUG9ZA35.317°
 GUV9YA35.165°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AVB8ZAAVBOXVHFleft199 (19)°> 11800ft1.0min timedICAO rules
AVB9ZAAVBOXVHFleft199 (19)°> 11800ft1.0min timedICAO rules
DUG8YAAA561VHFright278 (98)°> 9850ft1.0min timedICAO rules
DUG8YADUGEBVHFleft213 (33)°> 16700ft1.5min timedICAO rules
DUG8ZADUGEBVHFleft213 (33)°> 16700ft1.5min timedICAO rules
DUG9ZADUGEBVHFleft213 (33)°> 16700ft1.5min timedICAO rules
DUM8ZADUMAPVHFright117 (297)°> 16700ft1.5min timedICAO rules
DUM9ZADUMAPVHFright117 (297)°> 16700ft1.5min timedICAO rules
OSU8ZAOSUBAVHFright18 (198)°> 11800ft1.0min timedICAO rules
OSU9ZAOSUBAVHFright18 (198)°> 11800ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
